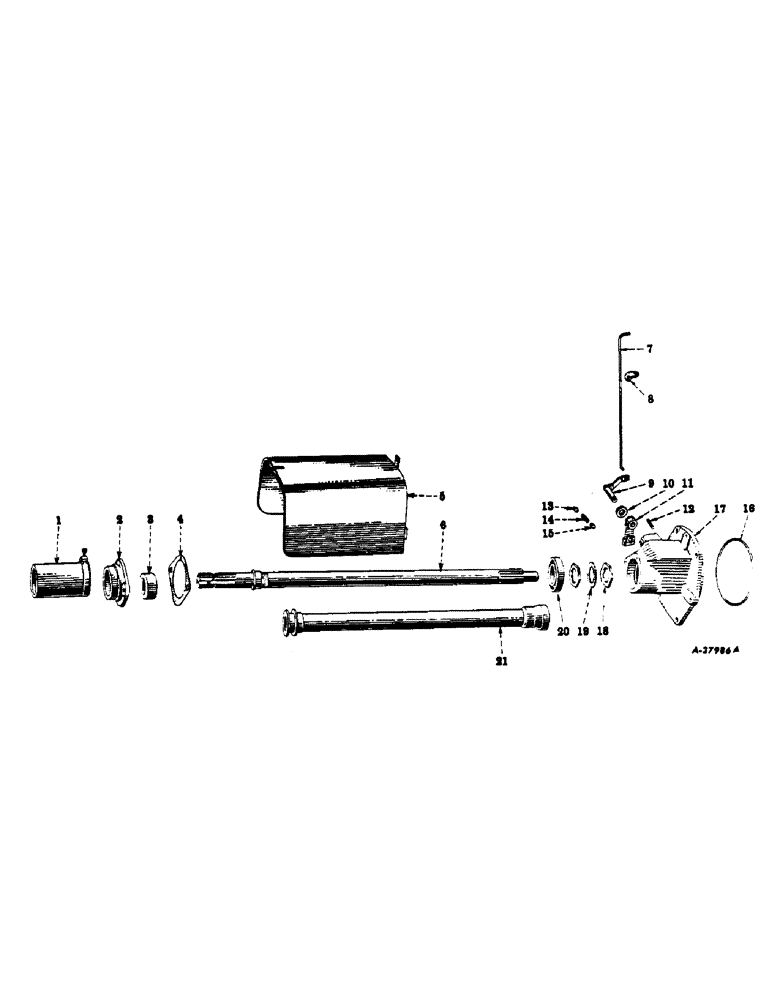

Запчасти Case IH 300 (308) - ATTACHMENTS, POWER TAKE-OFF, SPECIAL, TRANSMISSION DRIVEN TYPE Attachments

360731R92

1шт.

ATTACHMENT, transmission driven type power take-off (for tractors equipped with torque amplifier with transmission driven power- take-off drive or all other tractors not equipped with independent power take-off drive (note A) (consists of parts listed in this unit) The following additional parts (illustrated with the respective drawbars with which they are used) are required to provide a standardized power take-off hitch and must be ordered separately if required. For tractors equipped with, fixed drawbar

1шт.

1

51484DX

GUARD, power take-off shaft, w/clamp

1шт.

2

9572DX

RETAINER

power take-off oil seal, w/oil seal, 45702D

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3

45702D

OIL SEAL

OIL SEAL, power take-off shaft

1шт.

4

66374D

GASKET

power take-off oil seal retainer

1шт.

5

360736R21

SHIELD, safety, power take-off

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

66368D

SHAFT, power take-off

1шт.

7

360734R2

ROD, power take-off shifter

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x no 16 ga

1шт.

8

358384R2

GUIDE, power take-off shifter rod

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/4" (note B)

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

(Used with rear frames, 360553R3 (NSS), 9313 up) Hex, 1/2"-13 x 3 1/4", G5

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (Note B) 7/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (For Washer, Lock, 1/2" screws) 1/2"

1шт.

9

360735R11

LEVER AND SHAFT, power take-off shifter

1шт.

10620P

WASHER

plain, 21/32" ID x 1-1/2" OD x no 16 ga

1шт.

10

70268D

SEAL

OIL SEAL, power take-off shifter shaft lever

1шт.

11

66377DC

ARM

power tak-off shifter lever, w/block, hub and pin

1шт.

181316

SUPPORT

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

365401R1

PIN

spiral, 1/4 x 1" (shifter lever stop)

1шт.

13

103884

PLUG,Slotted, 1/4" NPT

pipe, slotted-hdls., 1/4" (power take-off poppet)

1шт.

14

48103D

VALVE SPRING

SPRING, power take-off shifter poppet

1шт.

15

48102D

PIN

POPPET, power take-off shifter

1шт.

16

358842R1

RING

seal, power take-off housing

1шт.

17

360733R11

HOUSING, power take-off, assembly (composed of (1) housing 360733R1 (NSS), (1) oil seal 70268D, (1) pin 365401R1, (1) ring 358842R1)

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/2-13NC x 1-3/8"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

18

66375D

NUT, power take-off shaft bearing lock

2шт.

19

66376D

WASHER, power take-off shaft bearing lock nut

1шт.

20

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

1шт.

21

66372DX

TUBE, power take-off shifter 26.197" Length

1шт.
