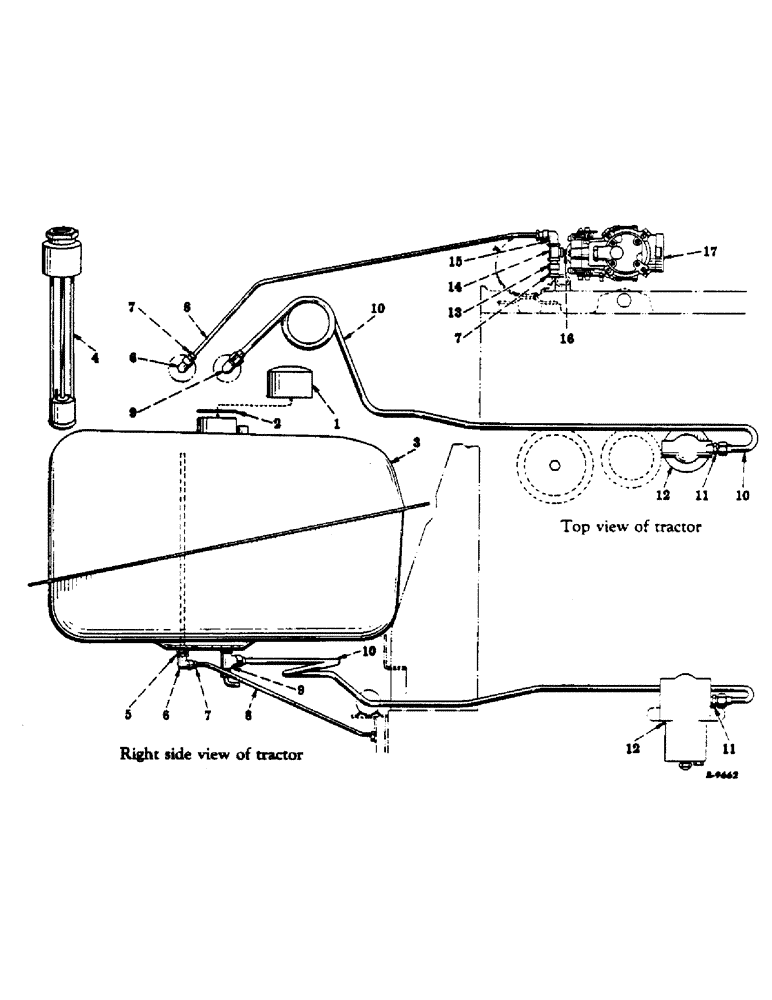

Запчасти Case IH 300 (178) - CHASSIS, FUEL SYSTEM, FOR DIESEL ENGINE TRACTORS (12) - CHASSIS

1

361910R91

PLUG

CAP, fuel tank filler, w/gasket 23977DB (not used on tractors equipped with fuel gage filler cap)

1шт.

2

23977DB

GASKET

fuel tank filler cap

1шт.

3

366720R91

TANK, fuel, w/cap, 361910R91

1шт.

17055R1

NUT, lock, hex., zn-pltd., 3/8-24NF (optional with 54738R1)

2шт.

54738R1

LOCK NUT,3/8"-24, GC

NUT, lock, hex., cd-pltd., 3/8-24NF (optional with 17055R1)

2шт.

181371

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1-3/8"

4шт.

4

365495R92

CAP, fuel gage filler, w/gasket, 23977DB (special)

1шт.

5

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

fuel return stand pipe elbow

1шт.

6

366764R92

PIPE, stand, w/elbow

1шт.

7

222-502

TUBE NUT,7/16"-24

NUT, hi-duty tube fitting, brs., 1/4" OD tubing

3шт.

8

366767R21

PIPE, return, fuel, w/two nuts, 29898D

1шт.

9

65524D

VALVE, needle, fuel tank

1шт.

10

366765R11

PIPE, fuel, w/two nuts (tank to water trap)

1шт.

363662R1

CLIP

fuel pipe (tank to water trap)

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

1шт.

11

22507D

UNION, half, fuel pipe (tank to water trap)

1шт.

12

TRAP, water (refer to fuel injection system)

1шт.

13

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR, male, hi-duty tube fitting, brs., 1/4" OD tubing

1шт.

13

29901DX

DEFLECTOR

CONNECTOR, 29901D, w/nut, 29898D

1шт.

14

121761

TEE,1/8" NPT, Fem

pipe, brs., (1/8")

1шт.

15

30402DX

ELBOW

30402D, w/nut, 29898D (fuel return pipe) (pump end)

1шт.

15

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

fuel return pipe

1шт.

16

142868

PIPE,Nipple, 1/8" NPT x 3/8", Brass

NIPPLE, pipe, brs., (1/8")

1шт.

17

PUMP, injection, (refer to fuel injection system)

1шт.
