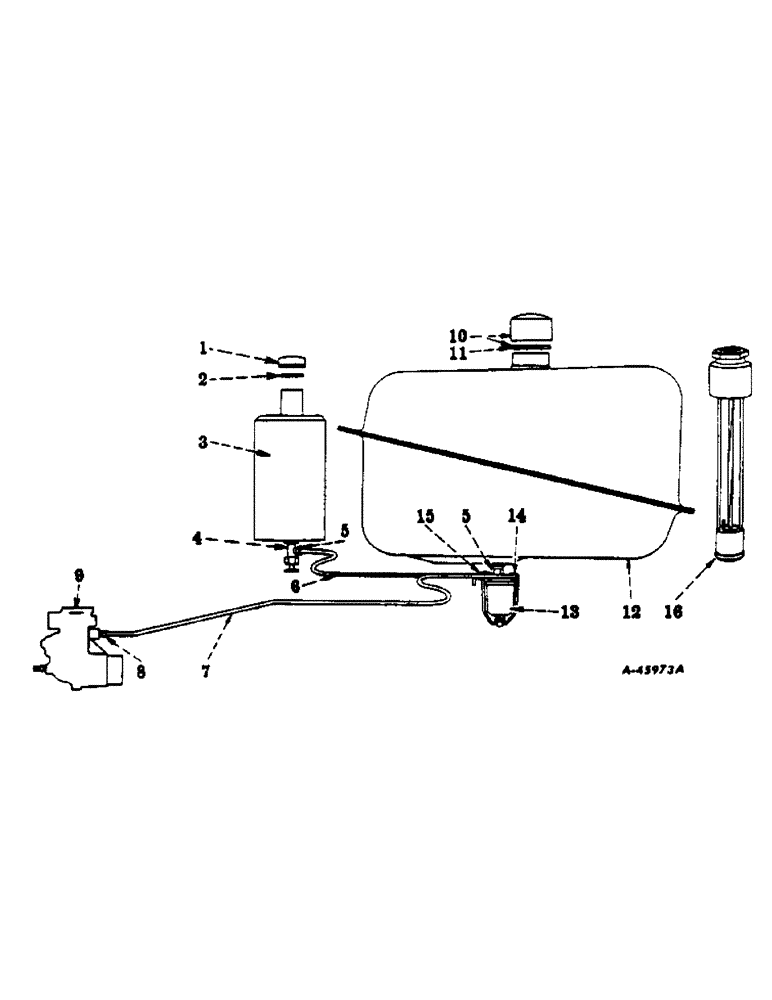

Запчасти Case IH 300 (177) - CHASSIS, FUEL AND GASOLINE TANKS AND PIPING (12) - CHASSIS

1

40756D

FILLER CAP

CAP, gasolie tank filler, w/gasket 40752D (see note)

1шт.

2

40752D

GASKET

gasoline tank filler cap (see note)

1шт.

3

362952R91

TANK, gasoline, w/cap, 40756D (see note)

1шт.

4

55474D

VALVE, gasoline tank shut-off, w/nut, 29899D (see note)

1шт.

5

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" OD tubing (see note)

2шт.

6

363104R11

PIPE, gasoline tak shut-off valve to fuel strainer, w/two nut, 29899D (see note)

1шт.

7

361494R11

PIPE, fuel strainer to carburetor, w/two nuts, 29899D

1шт.

8

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" OD tubing

2шт.

9

CARBURETOR, (see Carburetor for detail parts)

1шт.

12215D

STUD

carburetor

2шт.

10

361910R91

PLUG

CAP, fuel tank filler, w/gasket, 23977DB (not used on tractors equipped with fuel gage filler cap)

1шт.

11

23977DB

GASKET

fuel tank filler cap

1шт.

12

366720R91

TANK, fuel, w/cap, 361910R91, and plug, 103867

1шт.

17055R1

NUT, lock, hex., zn-pltd., 3/8-24NF (optional with 54738R1)

2шт.

54738R1

LOCK NUT,3/8"-24, GC

NUT, lock, hex., cd-pltd., 3/8-24NF (optional with 17055R1)

2шт.

181371

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1-3/8"

4шт.

13

STRAINER, fuel (see Fuel Strainer for detail parts)

1шт.

14

24847HX

ELBOW, 24847H, w/nut, 29899D (fuel, Serial Range: tank-carburetor)

1шт.

14

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

male pipe, hi-duty tube fitting, 90 degrees brs., 5/16" OD tubing

1шт.

15

24847HX

ELBOW, 24847H, w/nut, 29899D (fuel tank to strainer) (see note)

1шт.

15

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

male pipe, hi-duty tube fitting, 90 degrees, brs., 5/16" OD tubing (see note)

1шт.

16

365495R92

CAP, fuel gage filler w/gasket, 23977DB (special)

1шт.
