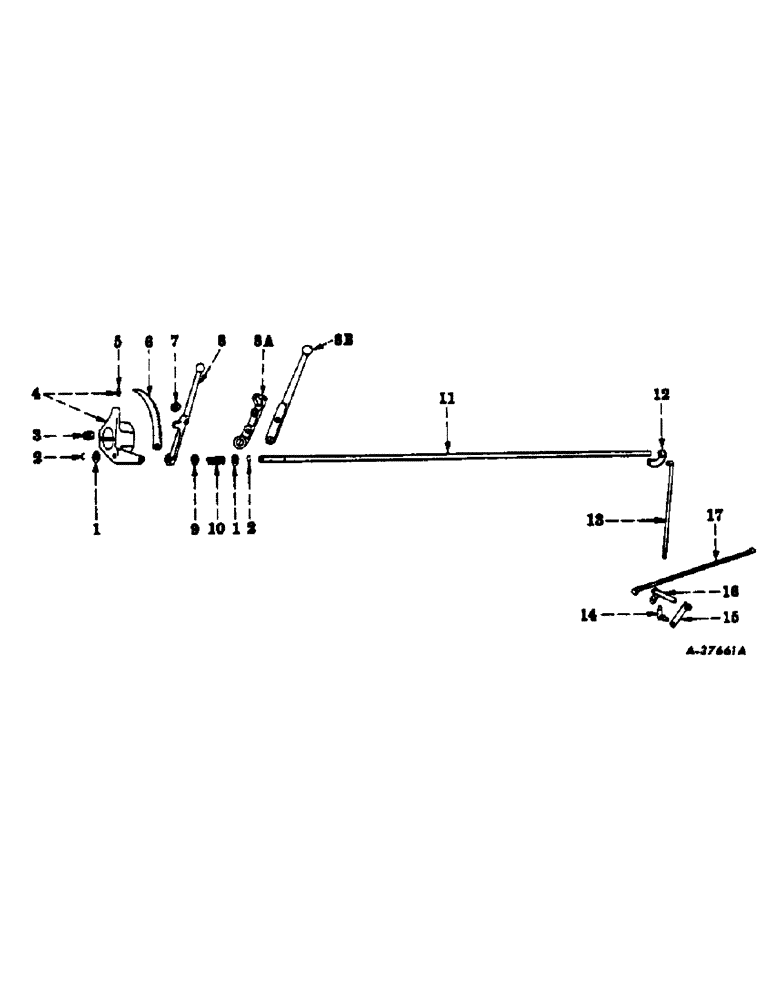

Запчасти Case IH 300 (170) - CHASSIS, ENGINE SPEED CONTROLS, FOR CARBURETED ENGINE TRACTORS (12) - CHASSIS

1

363665R1

WASHER, engine speed control rod

2шт.

17283R1

LOCK PIN,3/32" x 5/8", Slotted

PIN, (Used only on engine speed control rod with retaining holes), Farmall 300 series, 5160 up Farmall 350 series, 501 up 3/32" x 5/8", Slotted

2шт.

2

362068R1

RING, snap, engine speed control handle spring (used only on engine speed control rod with retaining grooves), Farmall 300 series, Serial Range: 501-5159

2шт.

3

18465D

WASHER

KEY, engine speed control sector bracket

1шт.

4

362063R11

BRACKET, engine speed control sector, w/110161 fitting, Farmall 350 series, Serial Range: 501-10785

1шт.

4

368727R1

BRACKET, engine speed control section, Farmall 350 series 10786 up

1шт.

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW, cap, hex-socket-hd., 3/8-16UNC x 1-1/4"

1шт.

5

110161

FITTING, lubrication, straight, drive type, 3/16" (steering shaft rear bearing) (optional with 125617)

1шт.

5

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (steering shaft rear bearing) (optional with 110161)

1шт.

6

362064R1

SECTOR, engine speed control

1шт.

120571

SCREW

machine, slotted-truss-hd., 1/4-20NC x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

362066R2

KEY, engine speed control handle

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 3/4"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

362065R1

HANDLE

engine speed control (not used on tractors equipped with cotton picker mounting parts)

1шт.

17047R1

LOCK PIN,5/32" x 7/8", Slotted

Pin, 5/32" x 7/8", Slotted

1шт.

8a

364159R1

HUB, engine speed control (for tractors equipped with cotton picker mounting parts)

1шт.

17047R1

LOCK PIN,5/32" x 7/8", Slotted

Pin, 5/32" x 7/8", Slotted

1шт.

8b

364160R1

HANDLE, engine speed control (for tractors equipped with cotton picker mounting parts)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

446220

WASHER

plain, 1/2" ID x 1-1/8" OD x no 14 ga

1шт.

10

354746R1

SPRING

engine speed control handle

1шт.

11

362090R1

ROD, engine speed control, upper (has groove for snap ring) (order 362090R2), Farmall 300 series, Serial Range: 501-5159

1шт.

11

362090R2

ROD, engine speed control, upper (has retaining holes) (will work for 362090R1 providing two pin 17283R1 are also ordered), Farmall 300 series, 5160 up Farmall 350 series, 501 up

1шт.

12

362091R11

LINK, engine speed control rod, upper, w/hub

1шт.

17157R1

LOCK PIN,5/32" x 3/4", Slotted

Pin, 5/32" x 3/4", Slotted

1шт.

13

362092R1

ROD, engine speed control, center

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NC

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

14

109416

JOINT

ball, type C, 5/16" (will work for 109401) (optional with 442420, 365869R91 and 367265R91)

1шт.

14

442720

BALL JOINT

JOINT, ball, type C, 5/16" (optional with 109416, 365869R91 and 367265R91)

1шт.

14

365869R91

JOINT

ball, 5/16" (optional with 109416, 442720 and 367265R91)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x no. 16 ga

1шт.

14

367265R91

JOINT, ball, type F, 5/16" (optional with 109416, 442720 and 365869R91)

1шт.

15

362093R11

ARM, engine speed control pivot shaft, w/hub

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

16

362094R11

SHAFT, pivot, engine speed control, w/arm

1шт.

17

362096R1

ROD, engine speed (for distillate, gasoline and kerosene burning engine)

1шт.

17

364271R1

ROD, engine speed control front (for liquefied petroleum gas burning engine)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x no 16 ga

2шт.
