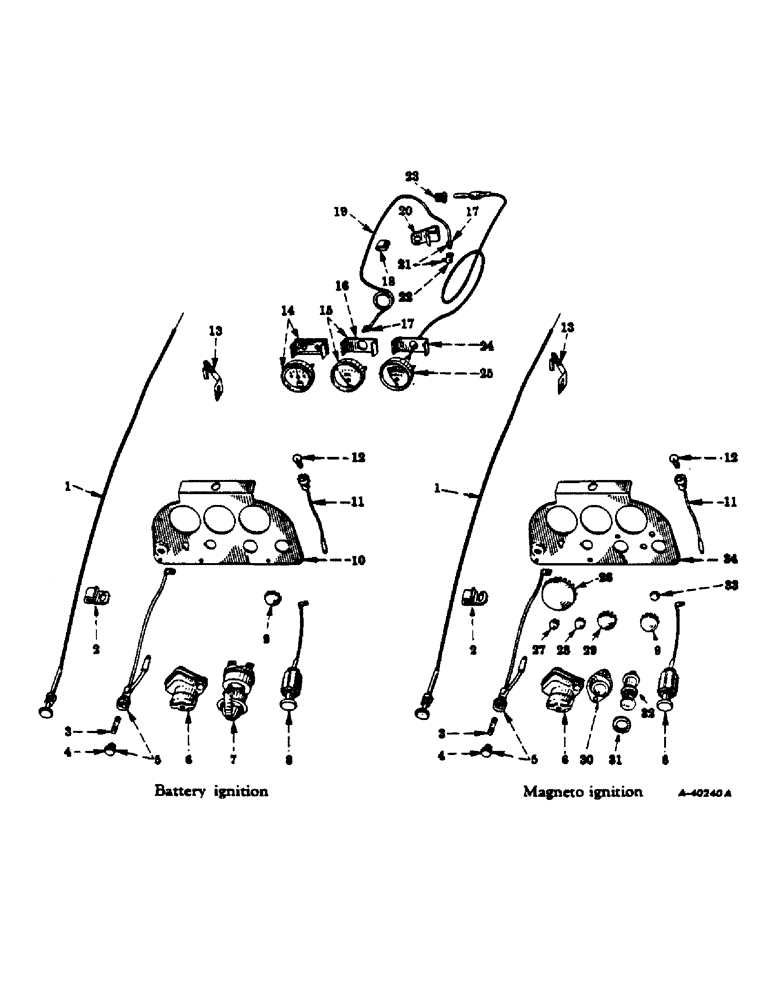

Запчасти Case IH 300 (162) - CHASSIS, ENGINE CONTROLS AND INSTRUMENTS, FOR FARMALL 300 SERIES TRACTORS (12) - CHASSIS

1

363709R93

CABLE

CONTROL, choke, w/nut, plunger, tubing and washer

1шт.

2

355097R1

CLIP, rear, choke control (on steering shaft rear bearing support mounting screw) (will work for 363363R1) (for tractors without liquefied petroleum gas burning engine)

1шт.

2

362426R1

CLIP, rear, choke control (on fuel tank rail) (no illustrated) (for tractors with liquefied petroleum gas burning engine)

1шт.

102635

NUT,3/8"-16, G5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

106653

FUSE

FUEL, type AGC, 30 amp. (note A) (for distrillate, gasoline or kerosene burning engine tractors)

1шт.

3

10815V

FUSE

cartridge, type (note A) (for liquefied petroleum gas burning engine tractors)

1шт.

4

356445R91

KNOB

fuse holder (note A)

1шт.

5

362669R91

HOUSING

fuse, w/two cables, knob, 356445R91, nut and washer (note A)

1шт.

6

363130R91

SWITCH

lighting, (6 volt), assembly (for components see list of parts under details of "Lighting Switch") (note A)

1шт.

6

363131R91

SWITCH

lighting (12 volt), assembly (for components see list of parts under details of "Lighting Switch") (note A)

1шт.

7

361998R93

SWITCH

ignition lock and starting, assembly (for components see switch) (for tractors equipped with battery ignition) (note A) (order 300557R91)

1шт.

7

300557R91

SWITCH

ignition lock and starting, assembly (not illustrated) (for tractors equipped with battery ignition) (note A) (will work for 361998R93)

1шт.

8

361999R91

LIGHTER, cigarette (6 volt), assembly (special) (for components see list of parts under details of "Cigarette Lighter") (note A)

1шт.

8

362000R91

LIGHT

ER, cigarette (12 volt), assembly (special) (for components see list of parts under details fo "Cigarette Lighter")

1шт.

9

432281

HOLE PLUG BUTTON,29/32"

PLUG, button, chr-pltd., (used in cigarette lighter hole on tractors not equipped with cigarette lighter) 29/32"

1шт.

10

362287R1

PANEL, instrument (for tractors equipped with battery ignition)

1шт.

362720R91

SCREW, instrument panel, w/washer

6шт.

11

362001R91

SOCKET

instrument light, w/cable (note A)

1шт.

12

125588

BULB,#55, Type C-2R, 6V

LAMP, no. 55 (6 volt) (note A)

1шт.

12

A14553

BULB

LAMP, no. 57 (12 volt)

1шт.

13

363364R1

CLIP, front, choke control (for tractors w/o liquefied petroleum gas burning engine)

1шт.

181354

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

360053R91

INDICATOR

charge, w/clamp, six nuts and six washers (note A)

1шт.

15

362039R93

GAUGE

oil pressure, w/clamp, 50805D, two nuts, 103089 and two washers, 135750

1шт.

16

60805D

CLAMP, oil pressure indicator

1шт.

103089

hex., no. 12-24NC

2шт.

125750

WASHER, lock, external-tooth, no. 12

2шт.

17

222-500

TUBE NUT,5/16" - 24 NPT

NUT, hi-duty tube fitting, brs., 1/8" OD tubing

2шт.

18

TAPE, wrap around (will work for clamp, 38428D) (use plastic electrical tape)

1шт.

19

363012R11

PIPE, oil pressure indicator, w/two nuts, 36092D (for tractors w/o liquefied petroleum gas burning engine)

1шт.

19

365398R11

PIPE, oil pressure indicator, w/two nuts, 36092D (for tractors with liquefied petroleum gas burning engine)

1шт.

20

355097R1

CLIP, heat indicator cable and oil pressure pipe (for tractors w/o liquefied petroleum gas burning engine)

1шт.

102635

NUT,3/8"-16, G5

(Note C) 3/8"-16, G5

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(Note C) Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Note C) 3/8"

1шт.

20

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, oil pressure indicator pipe and heat indicator cable (on fuel tank front attaching screw) (not illustrated) (for liquefied petroleum gas burning engine)

1шт.

20

362121R1

CLIP

oil pressure indicator pipe and heat indicator cable (at fuel tank rear) (not illustrated) (for liquefied petroleum gas burning engine)

1шт.

109084

NUT,1/4"-20, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

36637DX

CONNECTOR, ELEC

ELBOW, 36637D, w/nut, 36092D

1шт.

22

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

male pipe, hi-duty tube fitting, brs., 90 degrees 1/8" OD tubing

1шт.

23

51510D

BUSHING

reducing, heat indicator

1шт.

24

50417D

CLAMP, heat indicator

1шт.

372632A1

SPRING

hex., no. 12-24NC

2шт.

125750

WASHER, lock, external-tooth, no. 12

2шт.

25

353868R91

INDICATOR

heat, assembly (composed of (1) bushing 51510D, (1) clamp 50417D, (1) indicator (NSS), (2) nut 103089, (2) washer 125750)

1шт.

26

432578

PLUG, button, chr-pltd., 2-3/32" (used in charge indicator hole on tractors not equipped with starting and lighting system) (note B)

1шт.

27

432466

BEVEL PINION

PLUG, button, chr-pltd., 17/32" (used in fuse housing hole on tractors not equipped with starting and lighting system) (note B)

1шт.

28

432600

PLUG, button, chr-pltd., 23/32" (used in lighting switch hole on tractors not equipped with starting and lighting system) (note B)

1шт.

29

PLUG, button, chr-pltd., 1" (used in starting switch hole on tractors not equipped with starting and lighting system) (note B)

1шт.

30

255357R91

SWITCH

push button starting, assembly (for components see list of parts under detail of "Push Button Starting Switch") (note A and B)

1шт.

31

59109D

SPACER, magneto ignition switch (used between mounting nut and instrument panel) (note C)

1шт.

32

54207DB

SWITCH

magneto ignition, assembly (for components see list of parts under details of "Magneto Ignition Switch") (note C)

1шт.

33

142082

GEARBOX

PLUG, button, chr-pltd., 5/8" (used in exciter switch hole) (note B)

1шт.

34

363860R2

PANEL, instrument (note B)

1шт.

362720R91

SCREW, instrument panel, w/washer

6шт.
