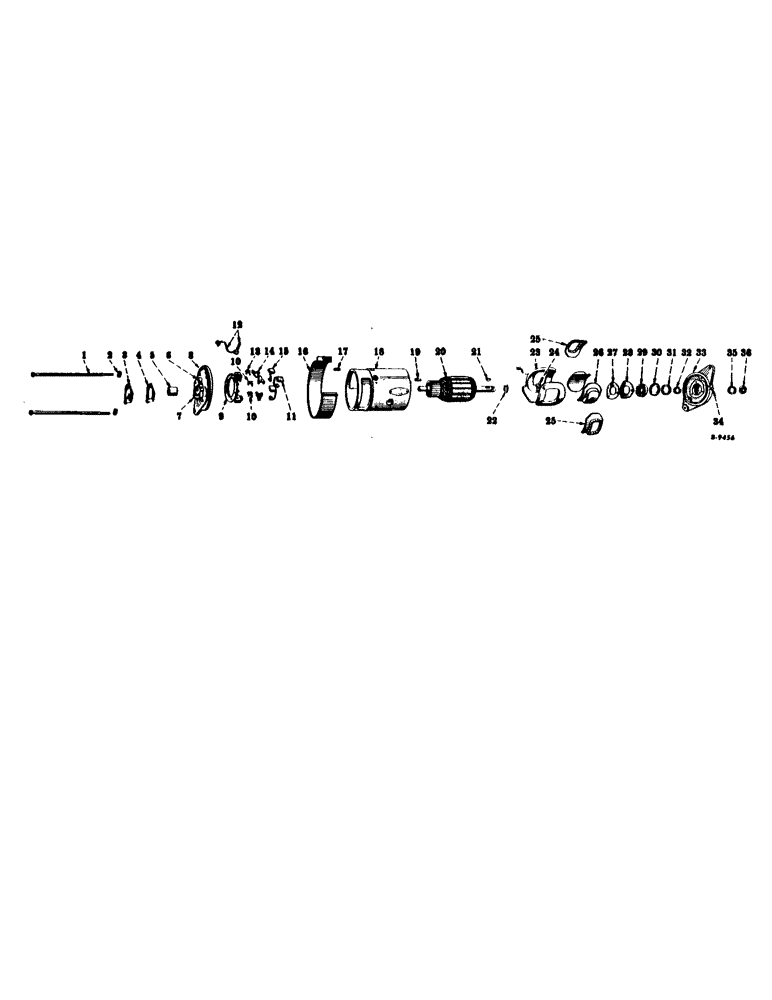

Запчасти Case IH 300 (130) - ELECTRICAL SYSTEM, DIESEL ENGINE, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

366769R91

GENERATOR, (12 volt) assembly (Mfr. 1101001)

1шт.

103820A1R

REMAN-GENERATOR

Generator

1шт.

103820A1C

CORE-GENERATOR

Return Number

1шт.

108004A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 11 ampere

1шт.

108004A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 11 ampere

1шт.

1

BOLT, thru (Mfr. 815018)

2шт.

2

WASHER, lock, heavy, cd-pltd., 5/16" (Mfr. 120638)

2шт.

3

PLATE, cover, commutator end frame (not used on tractors equipped with tachometer) (Mfr. 820524)

1шт.

.

SCREW, commutator end frame cover plate (Mfr. 1886496)

3шт.

.

WASHER, lock, medium, cd-pltd., no. 8 (Mfr. 121841)

3шт.

4

GASKET, commutator end frame cover plate (Mfr. 817220)

1шт.

5

BUSHING, commutator end (order 1913564 frame) (NSS)

1шт.

6

OILER, commutator end w/cap and spring (Mfr. 1880635)

1шт.

.

WICK, commutator end oiler (Mfr. 804076)

1шт.

7

PLUG, commutator end oiler wick (Mfr. 1911097)

1шт.

8

FRAME, commutator end, assembly (composed of (1) bushing (NSS), (1) pin 809062, (1) frame (NSS), (1) plug 1911097, (1) oiler 1880635, (1) wick 804076)

1шт.

9

PLATE, brush, w/three brush holders (Mfr. 1913565)

1шт.

.

SCREW, brush plate attaching (Mfr. 1886496)

3шт.

.

WASHER, lock, medium, cd-pltd., no. 8 (Mfr. 121841)

3шт.

10

SPRING, brush main (insulated) (Mfr. 1850767)

1шт.

11

BRUSH, main (Mfr. 1860344)

2шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 6-32NC x 1/4" (Mfr. 132688)

2шт.

.

WASHER, lock, brush lead attaching screw (Mfr. 1904377)

2шт.

12

POLE, armature terminal (includes lead, stud, 1858751 and terminal (Mfr. 1858754)

1шт.

.

BUSHING, insulating, terminal stud (Mfr. 1885090)

1шт.

.

NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)

2шт.

.

STUD, armature terminal (Mfr. 1858751)

1шт.

.

WASHER, lock, terminal stud (Mfr. 1904661)

2шт.

.

WASHER, teminal stud (Mfr. 1881409)

1шт.

.

WASHER, insulating, terminal stud (Mfr. 1858753)

1шт.

13

SPRING, brush, third and ground (Mfr. 1850760)

2шт.

14

HOLDER, brush (Mfr. 1850759)

3шт.

.

WASHER, plain, brush holder space (Mfr. 1857412)

3шт.

15

BRUSH, third (Mfr. 1906940)

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 6-32NC x 1/4" (Mfr. 132688)

1шт.

.

WASHER, lock, brush lead attaching screw (Mfr. 1904377)

1шт.

16

BAND, cover w/nut, 120614 and screw, 132926 (Mfr. 1872638)

1шт.

.

SCREW, machine, slotted-rd-hd., cd-pltd., no. 10-32 Nf x 1-1/4" (Mfr. 132926)

1шт.

.

NUT, hex., cd-pltd., no. 10-32NF (Mfr. 120614)

1шт.

17

PIN, dowel, commutator end frame (Mfr. 809062)

1шт.

18

FRAME (not serviced separately)

1шт.

19

PIN, dowel, drive end frame (Mfr. 809593)

1шт.

20

ARMATURE (Mfr. 1932746)

1шт.

21

KEY, Woodruff, alloy-stl., no. 5 (drive end) (Mfr. 124545)

1шт.

22

WASHER, space, drive end (Mfr. 809945)

1шт.

23

COIL SET, field, w/insulator, 1914491, stud, 1858751 and terminal (Mfr. 1922700)

1шт.

24

STUD, field terminal (Mfr. 1858751)

1шт.

.

BUSHING, insulating, terminal stud (Mfr. 1885090)

1шт.

.

NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)

2шт.

.

WASHER, lock, terminal stud (Mfr. 1904661)

2шт.

.

WASHER, terminal stud (Mfr. 1881409)

1шт.

.

WASHER, insulating, terminal stud (Mfr. 1858753)

1шт.

25

INSULATOR, field coil (Mfr. 1914491)

2шт.

26

SHOE, pole (Mfr. 1914618)

2шт.

.

SCREW, pole shoe (Mfr. 1843646)

2шт.

27

PLATE, ball bearing retainer (Mfr. 1911263)

1шт.

.

SCREW, bearing retainer plate (Mfr. 1904370)

3шт.

.

WASHER, lock, bearing, retainer plate screw (Mfr. 1880781)

3шт.

28

GASKET, ball bearing retainer plate (Mfr. 1912008)

1шт.

29

BEARING, ball (drive end) (Mfr. 954378)

1шт.

30

RETAINER, drive end felt washer (Mfr. 919104)

1шт.

31

WASHER, felt, drive end (Mfr. 809961)

1шт.

32

SPACER, pulley (Mfr. 817224)

1шт.

33

FRAME, drive end, w/oiler, 1880641 (Mfr. 1873830)

1шт.

34

OILER, drive end bearing w/cap and spring (Mfr. 1880641)

1шт.

35

WAHSER, lock, drive end shaft nut (Mfr. 804000)

1шт.

36

NUT, drive end shaft (Mfr. 806915)

1шт.
