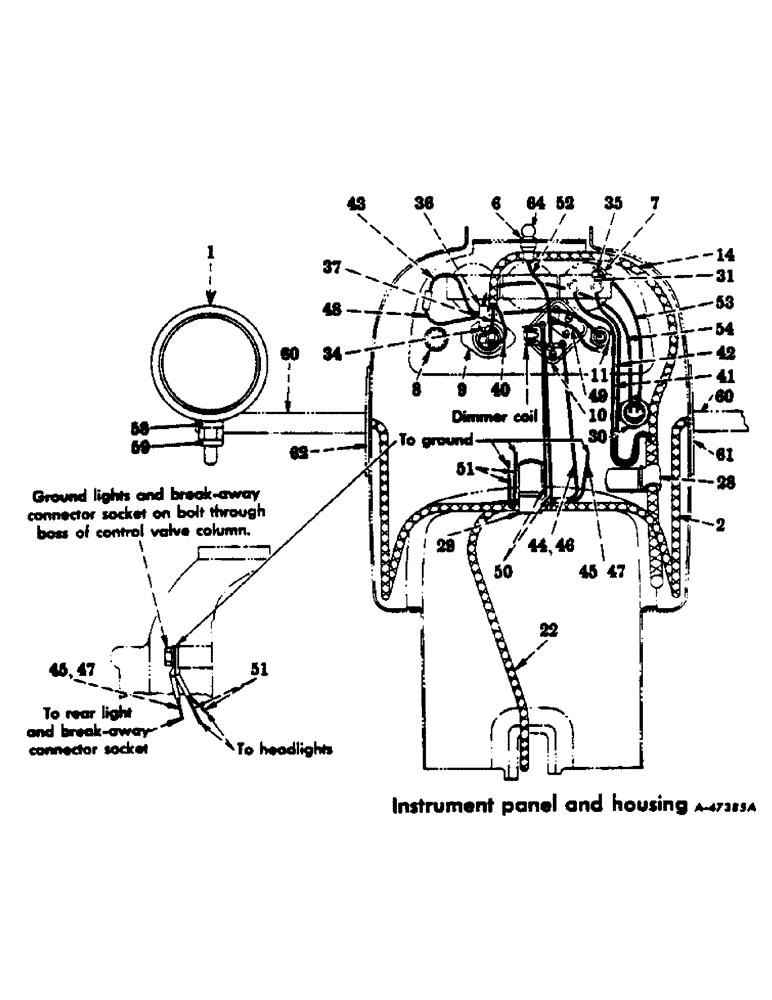

Запчасти Case IH 300 (128A) - ELECTRICAL SYSTEM, CARBURETED ENGINE, STARTING AND LIGHTING SYSTEM (06) - ELECTRICAL SYSTEMS

1

357885R94

LAMP

LIGHT, sealed beam, assembly (12 volt)(for components see list of parts under details of "Headlights")

2шт.

102378

NUT, hex., cd-pltd., 1/2-13NC

2шт.

102384

HYDRAULIC VALVE

WASHER, lock, medium, cd-pltd., 1/2"

2шт.

2

362011R91

HARNESS

headlight cable, w/4 cables

1шт.

179854

SCREW,Hex, 7/16" - 14 x 5/8"

cap, hex-hd., 7/16-14NC x 5/8" (ground screw in control valve column)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

362666R1

CLIP

cable harness and battery to solenoid switch cable (on fuel tank bracket attaching screw)

1шт.

4

362666R1

CLIP

cable harness and battery to solenoid switch cable (on hydra-touch control valve column front mounting bolt, LH)

1шт.

5

360899R91

REGULATOR

voltage, assembly (12 volt)(for components see list of parts under details of "Voltage Regulator")

1шт.

179788

SHEET

cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

362001R91

SOCKET

instrument panel light, w/cable

1шт.

7

360053R91

INDICATOR

charge, w/clamp, 6 nuts and 6 washers

1шт.

8

432281

HOLE PLUG BUTTON,29/32"

PLUG, button, cr-pltd., (used to plug hole on tractors without cigarette lighter) 29/32"

1шт.

9

366316R91

SWITCH

starting, push button (IH)(optional with 366317R91)(for components see list of parts under details of "Push Button Starting Switch")

1шт.

9

366317R91

IGNITION SWITCH

SWITCH, starting, push button, assembly (Indak MFG Corp.) (optional with 366316R91)(composed of (2) nut 120611, (2) switch 131958, (2) screw 132903, (1) switch (NSS), (2) washer 120217, (2) washer 121841)

1шт.

10

363131R91

SWITCH

lighting, assembly (12 volt)(for components see list of parts under details of "Lighting Switch")

1шт.

11

365515R91

FUSE CARTRIDGE

HOUSING, fuse, w/2 cables, 356445R91 knob, nut and washer (illustrated with Engine Controls and Instruments)

1шт.

12

362123R1

CLIP

cable harness (on valve cover rear stud)

1шт.

13

362123R1

CLIP

cable harness (on valve cover front stud)

1шт.

14

366314R91

HARNESS, cable, w/7 cables (A only)

1шт.

14

368883R91

CABLE

HARNESS, cable, w/8 cables (B only)

1шт.

15

GENERATOR, assembly (for components see list of parts under details of "Generator and Connections")

1шт.

16

362667R1

CLIP

ignition and starting switch to coil cable (on generator bracket front mounting bolt)

1шт.

17

DISTRIBUTOR, assembly (refer to "Battery Ignition Unit")(note A)

1шт.

18

362123R1

CLIP

cable harness (on steering shaft center bearing bracket lower mounting bolt)

1шт.

19

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP, cable harness on front fuel tank and air cleaner LH support (B only)

1шт.

20

366667R91

MOTOR, cranking, assembly (12 volt)(for components see list of parts under details of "Cranking Motor")(A only)

1шт.

20

368765R91

MOTOR, cranking, assembly (12 volt)(for components see list of parts under details of "Cranking Motor")(B only)

1шт.

280136

NUT,3/8"-16, G8

1шт.

NLS

NO LONGER SERVICED

3шт.

110730

LOCK WASHER

WASHER, lock, light, 3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

366197R91

CABLE

battery to solenoid switch, w/356062R91 bolt and 364910R1 cover

1шт.

356062R91

BOLT

terminal, w/nut, sleeve and washer

1шт.

22

366459R91

CABLE

HARNESS, rear light and break-away connector socket, w/6 cables

1шт.

23

362002R92

SOCKET

electrical break-away connector, w/cap, 2 screws and spring

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

368387R1

SPACER, break-away connector

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable harness (on rear light mounting bracket upper bolt)

1шт.

25

361986R93

LAMP

LIGHT, combination rear light and tail, assembly (12 volt)(for components see list of parts under details of "Combination Rear Light and Tail Light")

1шт.

102378

NUT, hex., cd-pltd., 1/2-13NC

1шт.

102384

HYDRAULIC VALVE

WASHER, lock, medium, cd-pltd., 1/2"

1шт.

26

358907R91

BATTERY, (Auto-Lite, wet-charged)(12 volt)(optional with 360036R91)(A only)

1шт.

26

360036R91

BATTERY, (Globe-Union, wet-charged)(12 volt)(optional with 358907R91)(A only)

1шт.

26

368537R91

BATTERY, (Auto-Lite, wet-charged)(12 volt)(B only)

1шт.

27

358987R92

CABLE

STRAP, battery to ground, w/356062R91 bolt

1шт.

356062R91

BOLT

terminal, w/nut, sleeve and washer

1шт.

109256

SCREW, cap, hex-hd., 1/2-13NC x 4-1/2"

1шт.

364410R1

SPACER,1/2" Pipe x 1 3/8"

ground strap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

28

CLIP (NSS), cable harness, Serial Range: (welded-shroud)

1шт.

29

CLIP (NSS), cable harness, Serial Range: (welded-shroud)

1шт.

30

366313R91

SWITCH

ignition lock with two cables and two keys (note A)

1шт.

125793

lock, internal-tooth, 13/32" cd-pltd (B only)

1шт.

365502R1

NUT

ignition lock switch mounting (B only)

1шт.

31

365501R1

TERMINAL CONNECTOR

TERMINAL, line connector (note A)

1шт.

32

52118D

GROMMET

cable harness (in battery box, RH)

1шт.

33

52118D

GROMMET

cable harness (in battery box, LH)

1шт.

34

365501R1

TERMINAL CONNECTOR

TERMINAL, line connector (note A)

1шт.

35

366456R1

BODY, connector, short (note A)

1шт.

36

366456R1

BODY, connector, short (note A)

1шт.

37

CABLE, push button starting switch to coil (black)(order 366314R91 harness)(note A)(A only)

1шт.

37

CABLE, push button starting switch to resistor (black)(order 368883R91 harness)(note A)(B only)

1шт.

38

CABLE, voltage regulator "F" terminal to generator "F" terminal (yellow)(order 366314R91 harness)(B only)

1шт.

38

CABLE, voltage regulator "F" terminal to generator "F" terminal (yellow)(order 368883R91 harness)(B only)

1шт.

39

CABLE, voltage regulator "GEN" to terminal to generator "A" terminal (light blue)(order 366314R91 harness)(B only)

1шт.

39

CABLE, voltage regulator "GEN" terminal to generator "A" (light blue)(order 368883R91 harness)(B only)

1шт.

40

CABLE, push button starting switch to solenoid switch (orange) (order 366314R91 harness)(A only)

1шт.

40

CABLE, push button starting switch to solenoid switch (orange) (order 368883R91 harness)(B only)

1шт.

41

CABLE, charge indicator to solenoid switch (red)(order 366314R91 harness)(A only)

1шт.

41

CABLE, charge indicator to solenoid switch (red)(order 368883R91 harness)(B only)

1шт.

42

CABLE, charge indicator to voltage regulator "BAT" terminal (gray)(order 366314R91 harness)(A only)

1шт.

42

CABLE, charge indicator to voltage regulator "BAT" terminal (gray)(order 368883R91 harness)(B only)

1шт.

43

CABLE, voltage regulator "L" terminal to fuse housing cable terminal (light green)(order 366314R91 harness)(A only)

1шт.

43

CABLE, votlage regulator "L" terminal to fuse housing cable terminal (light green)(order 368883R91 harness)(B only)

1шт.

44

CABLE, lighting switch to break-away connector socket (black) (order 366459R91 harness)

1шт.

45

CABLE, break-away connector to ground bolt (pink) (order 366459R91 harness)

1шт.

46

CABLE, ligting switch to combination rear light and tail light (black)(order 366459R91 harness)

1шт.

47

CABLE, combination rear light and tail light to ground bolt (pink)(order 366459R91 harness)

1шт.

48

CABLE, fuel housing to regulator "L" terminal cable terminal (order 365515R91 housing)

1шт.

49

CABLE, fuse housing to lighting switch (order 365515R91 housing)

1шт.

50

CABLE, lighting switch to headlight (black)(order 362011R91 harness)

2шт.

51

CABLE, headlight to ground (pink)(order 362011R91 harness)

2шт.

52

CABLE, instrument panel light to lighting switch (order 362001R91 socket)

1шт.

53

CABLE, ignition switch to charge indicator (black)(order 366313R91 switch)(note A)

1шт.

54

CABLE, ignition switch to push button starting switch (black) (order 366313R91 switch)(note A)(A only)

1шт.

55

364910R1

BOOT

COVER, solenoid terminal

1шт.

56

CABLE, solenoid switch to coil (B only)

1шт.

57

357929R92

ELECTRIC CABLE

CABLE, resistor to coil (B only)

1шт.

58

49069D

SPACER

headlight or rear light

3шт.

59

350920R1

CLAMP

headlight or rear light

3шт.

60

361994R1

PIPE, support, headlight

2шт.

61

361989R91

BRACKET, support, headlight, LH

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

mach., cr-rec-truss-hd., w/washer

4шт.

62

361992R91

BRACKET, support, headlight, RH

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

mach., cr-rec-truss-hd., w/washer

4шт.

63

361995R12

BRACKET, support, rear light

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

64

A14553

BULB

LAMP, no. 57 (12 volt)(instrument panel)

1шт.

10815V

FUSE

cartridge type, 10 amp. (A only)

1шт.

9426333

FUSE,15 Amp, Type 3AG

type AGC, 15 amp. (B only)

1шт.
