Запчасти Case IH 300 (300) - ATTACHMENTS, AIR CLEANER EXTENSION PIPE, SPECIAL Attachments

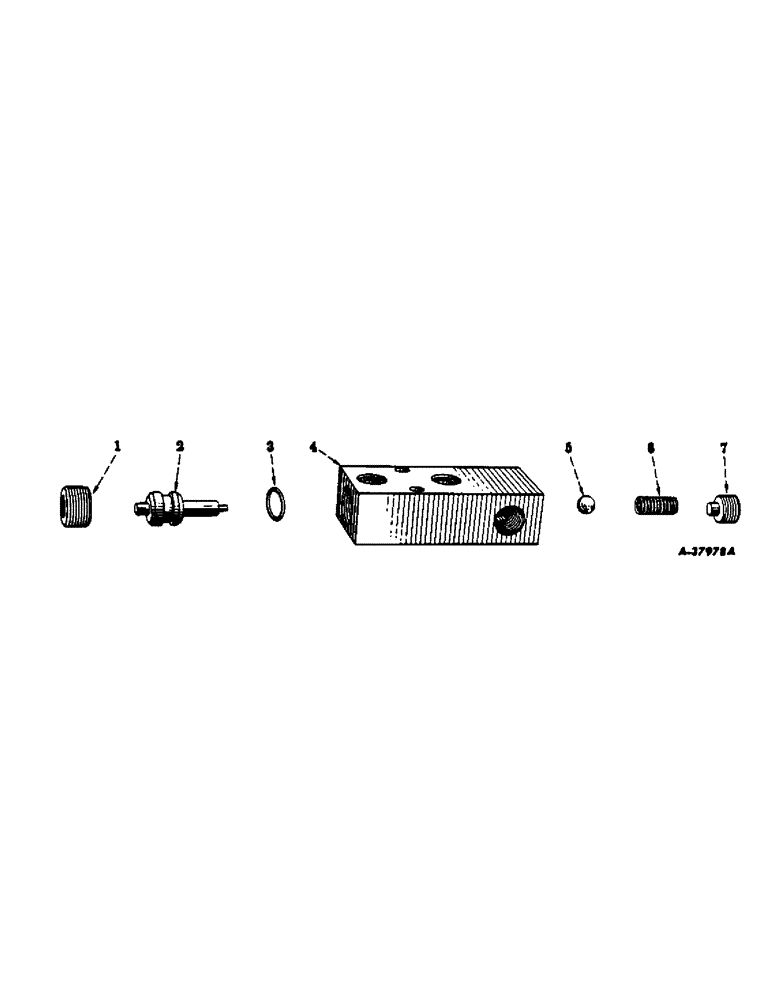

Схема запчастей Case IH 300 - (300) - ATTACHMENTS, AIR CLEANER EXTENSION PIPE, SPECIAL Attachments
2
3
1
5
7
4
6

Артикул

Название

Примечание

Количество

62970D

ATTACHMENT, air pipe extension

1шт.

1

62967D

CLAMP, air pipe extension brace, lower

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-14NF x 1"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

62968D

BRACE, air pipe extension, L H

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

62966D

CLAMP, air pipe extension brace, upper

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

62965D

EXTENSION, air pipe

1шт.

5

62969D

BRACE, air pipe extension, R H

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

20075D

HOSE

extension, air pipe (2" ID x 2-1/4" long, 3 ply)

1шт.

7

29970D

CLAMP

air pipe extension hose

2шт.

8

93082H

NUT

air pipe extension brace clamp, lower

2шт.

Выбрано товаров: 20
