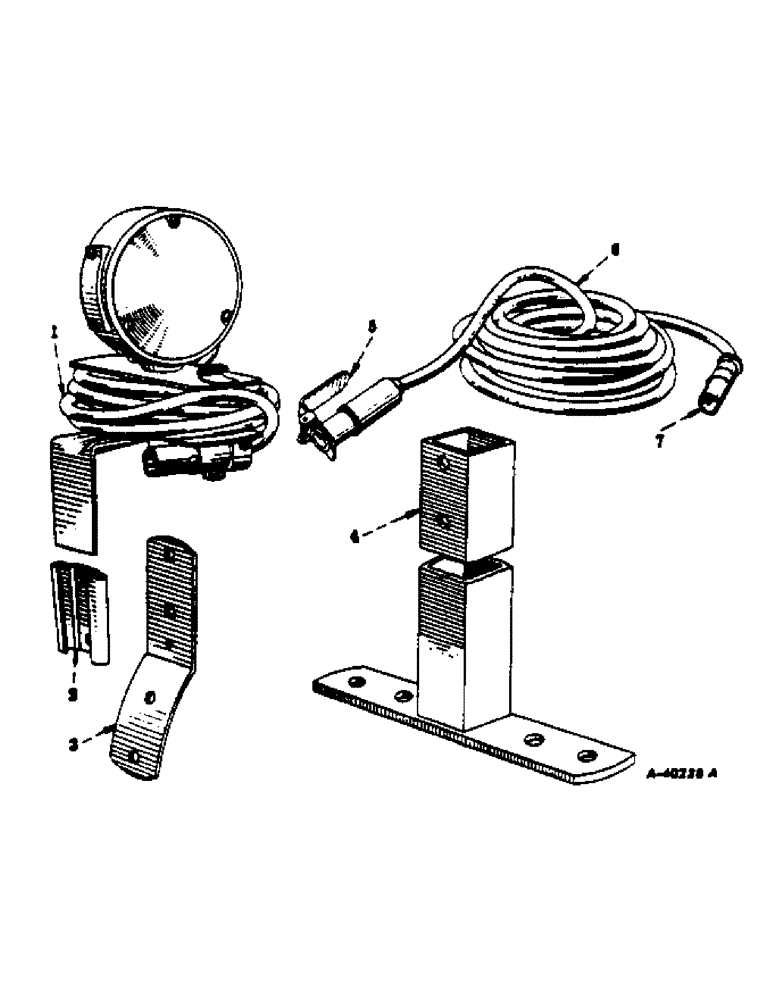

Запчасти Case IH 300 (112) - ELECTRICAL SYSTEM, CARBURETED ENGINE, SAFETY LIGHT, EXTENSION CABLE AND SUPPORT, SPECIAL (06) - ELECTRICAL SYSTEMS

1

367813R91

LIGHT, safety (6 volt) (for components see list of parts under detail of "Safety Light") (A only)

1шт.

1

367814R91

LIGHT, safety (12 volt) (for components see list of parts under detail of "Safety Light") (B only)

1шт.

2

363919R1

SOCKET

safety light bracket

1шт.

14990R1

BOLT

carriage, sq-nk., 5/16-18NC x 5/8" (used on tractors equipped with fenders)

2шт.

27480R1

CARRIAGE BOLT,5/16" x 2", Gr 5

BOLT, carriage, sq-nk., 5/16-18NC x 2" (note A)

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

363920R1

BRACKET, safety light (used on tractors equipped with fenders)

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

120576

SCREW, machine, cd-pltd., slotted-truss-hd., 5/16-18NC x 1-1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

364290R11

SUPPORT, safety lamp (note A)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4" (Note A)

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (Note A) 1/2"

2шт.

5

365446R91

SOCKET/RECEPTACLE

SOCKET, break-away connector, w/cap, cover and spring (used with the extension cable)

1шт.

6

365444R91

CABLE, twenty-four ft. extension, w/plug, 364559R91 and socket, 365446R91 (special) (for tractors equipped with electrical break- away connector socket) (note B)

1шт.

7

364559R91

PLUG

break-away connector socket (for use with 21/64" OD cable) (used with the extension cable) (note B)

1шт.
