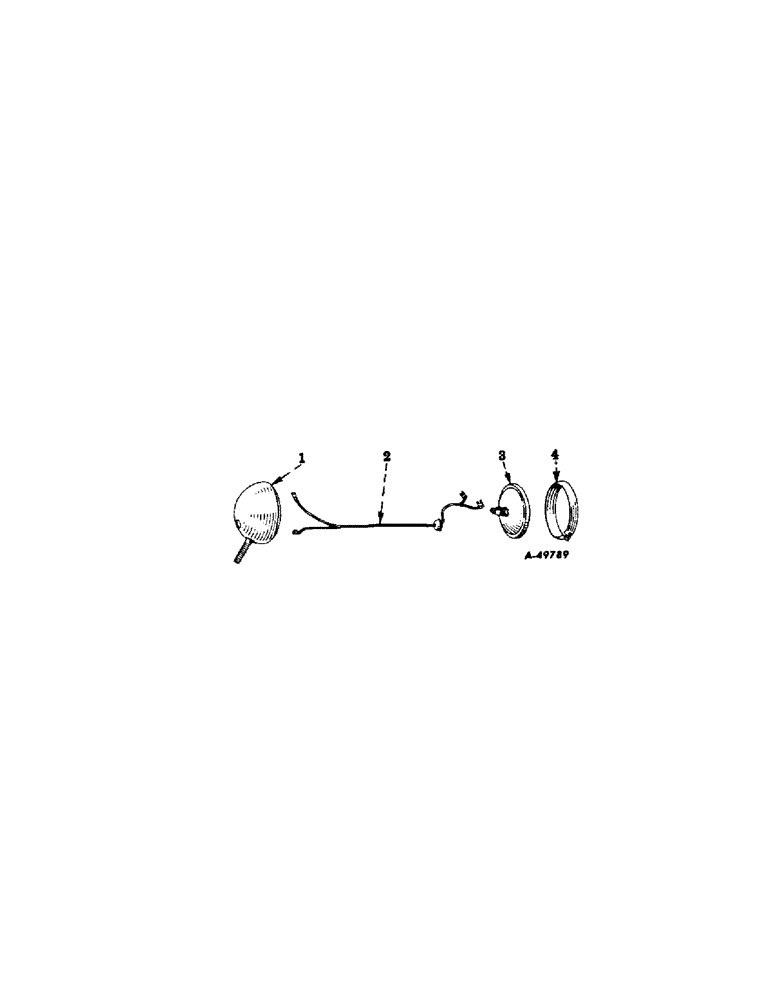

Запчасти Case IH 240 (098[A]) - ELECTRICAL SYSTEM, HEADLIGHTS OR REAR LIGHT, SEALED BEAM (06) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

BODY (not serviced separately - order light, assembly)

1шт.

2

371446R91

WIRE, assembly (Dietz) (headlight) (A only)

1шт.

2

371454R91

WIRE, assembly (guide) (headlight) (A only)

1шт.

2

371455R91

WIRE, assembly (Dietz) (rear light) (B only)

1шт.

2

371456R91

WIRE, assembly (guide) (rear light) (B only)

1шт.

3

373661R91

LAMP BASE

UNIT, sealed beam

1шт.

4

371450R91

BEZEL

MOULDING, assembly (Dietz)

1шт.

365697R1

NUT, clamp screw moulding

1шт.

132489

SCREW, mach. slotted-fil-hd., no. 8-32 x 1-1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

4

371451R91

MOLDING

MOULDING, assembly (guide)

1шт.

53526D

SCREW

moulding assembly

1шт.

370709R91

HEADLIGHT, sealed beam, LH, assembly (6 volt) (guide) (optional with 374207R91) (see column A)

1шт.

374207R91

HEADLIGHT, sealed beam, LH, assembly (6 volt) (Dietz) (optional with 370709R91) (see column A)

1шт.

370711R91

HEADLIGHT, sealed beam, RH, assembly (6 volt) (guide) (optional with 374208R91) (see column B)

1шт.

374208R91

HEADLIGHT, sealed beam, RH, assembly (6 volt) (Dietz) (optional with 370711R91) (see column B)

1шт.
