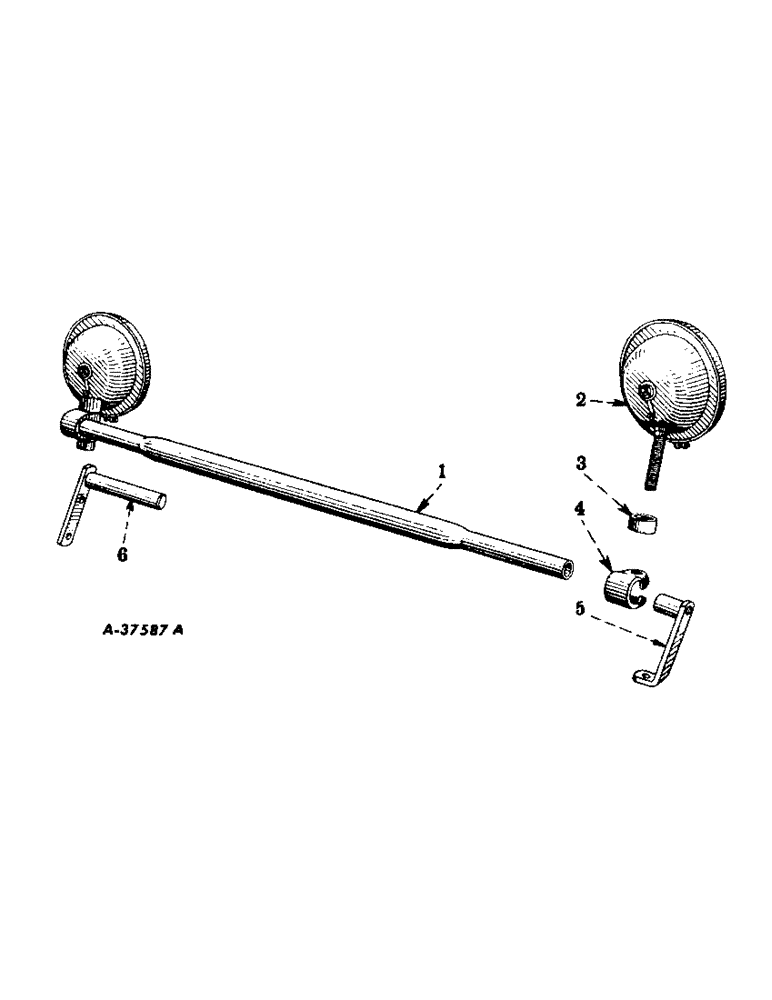

Запчасти Case IH 240 (097) - ELECTRICAL SYSTEM, HEADLIGHTS AND REAR LIGHT AND SUPPORTS (06) - ELECTRICAL SYSTEMS

1

351443R2

PIPE, headlight support

1шт.

1

356825R1

PIPE, headlight support

1шт.

139705

SCREW, set, hex-socket-hd., dog-pt., 1/4-20NC x 1/2"

2шт.

2

373572R91

LAMP

HEADLIGHT OR REAR LIGHT, sealed beam, assembly (6 volt) (for components seelist of parts under details of "headlight or rear light") (will work for 357884R94)

3шт.

102637

NUT,1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

49069D

SPACER

headlight or rear light

3шт.

4

350920R1

CLAMP

headlight or rear light

3шт.

5

360478R11

SUPPORT, rear light (Farmall 200)

1шт.

103026

NUT,3/8"-24, G5

1шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

361995R12

SUPPORT, rear light (Farmall 230)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
