Запчасти Case IH 240 (095) - ELECTRICAL SYSTEM, CRANKING MOTOR AND PULL ROD (06) - ELECTRICAL SYSTEMS

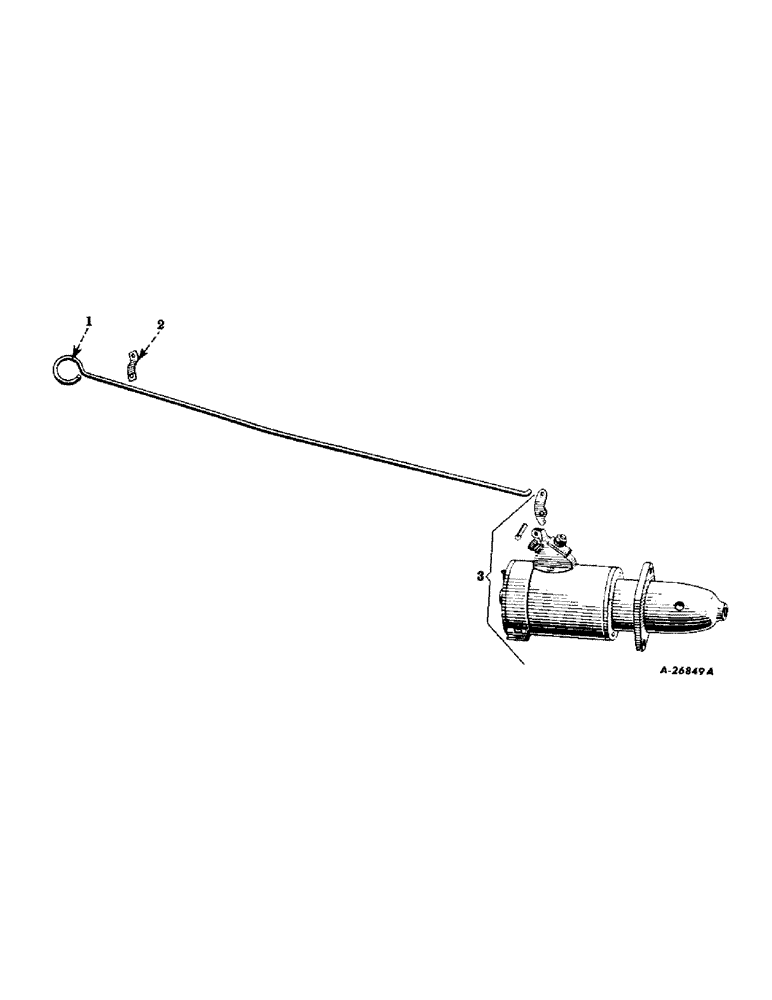

Схема запчастей Case IH 240 - (095) - ELECTRICAL SYSTEM, CRANKING MOTOR AND PULL ROD (06) - ELECTRICAL SYSTEMS
1
2
3

Артикул

Название

Примечание

Количество

1

351446R2

SPARE PART ROD, pull, starting switch (Farmall 200)

1шт.

137130

PIN

PIN, cotter, 1/16 x 7/16"

1шт.

1

366324R1

SPARE PART ROD, pull, starting switch (Farmall 230)

1шт.

137130

PIN

PIN, cotter, 1/16 x 7/16"

2шт.

95-11028

WASHER,1/4"

WASHER, plain, 9/32" ID x 5/8" OD x no. 16 ga.

2шт.

2

354379R1

SPARE PART CLIP, starting switch pull rod

1шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

355794R91

SPARE PART MOTOR, cranking (6 volt) (for components see list of parts under details of "Cranking Motor")

1шт.

3

104221A2GV

STARTER MOTOR

Value, 6V, 10MT Inertia

1шт.

3

104221A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT intertia

1шт.

3

104221A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT inertia

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT, hex-hd., 1/2-13 NC x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Выбрано товаров: 14
