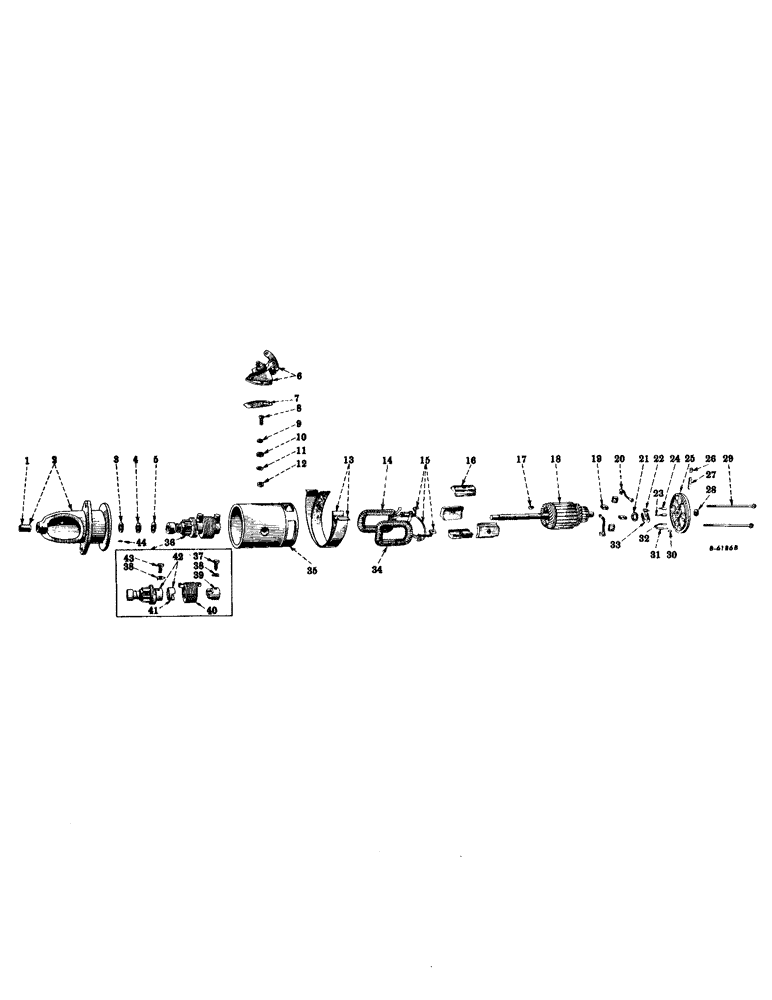

Запчасти Case IH 240 (089) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

BUSHING, drive housing (Mfr. 810620)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, drive, w/bushing, 810620 (Mfr. 1910093)

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER, space, drive end (1/16" x 63/64" O.D.) (Mfr. 833602)

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, space, drive end (3/32" x 1-1/16" O.D.) (Mfr. 1849774)

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER, space, drive end (1/16" x 1-1/16" O.D.) (Mfr. 809815)

1шт.

6

NSS

NOT SOLD SEPARAT

SWITCH, starting, assembly (for components see list of parts under details of "Starting Switch") (Mfr. 1918405)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., cd-pltd., no. 10-23NF x 1/4" (Mfr. 132892)

2шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, medium, no. 10 (Mfr. 106497)

2шт.

7

NSS

NOT SOLD SEPARAT

GASKET, starting switch (Mfr. 1912376)

1шт.

8

NSS

NOT SOLD SEPARAT

STUD, terminal, field (Mfr. 821524)

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER, insulating, terminal stud (Mfr. 1904669)

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER, insulating, terminal stud (Mfr. 1861076)

2шт.

11

NSS

NOT SOLD SEPARAT

WASHER, terminal stud, plain (1/32" thick) (Mfr. 812622)

2шт.

11

NSS

NOT SOLD SEPARAT

WASHER, terminal stud, plain (1/16" thick) (Mfr. 805790)

1шт.

12

NSS

NOT SOLD SEPARAT

NUT, terminal stud (Mfr. 805258)

1шт.

13

NSS

NOT SOLD SEPARAT

BAND, cover, w/nut, 120614, and screw, 132926 (Mfr. 1886923)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., cd-pltd., no. 10-32NF x 1-1/4" (Mfr. 132926)

1шт.

NSS

NOT SOLD SEPARAT

NUT, hex., no. 10-32NF (Mfr. 120614)

1шт.

14

NSS

NOT SOLD SEPARAT

COIL, field (upper) (Mfr. 812407)

1шт.

15

NSS

NOT SOLD SEPARAT

LEAD, brush and field connector (Mfr. 819362)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., cd-pltd., no. 10-32NF x 1/4" (Mfr. 132892)

2шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, no. 10 (Mfr. 106497)

2шт.

16

NSS

NOT SOLD SEPARAT

SHOE, pole (Mfr. 810601)

4шт.

NSS

NOT SOLD SEPARAT

SCREW, pole shoe (Mfr. 1881869)

4шт.

17

NSS

NOT SOLD SEPARAT

KEY, Woodruff, alloy-stl., no. 6 (Mfr. 124546)

1шт.

18

NSS

NOT SOLD SEPARAT

ARMATURE (Mfr. 818002)

1шт.

19

NSS

NOT SOLD SEPARAT

BRUSH (Mfr. 811553)

4шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., blued, no. 6-32NC x 1/2" (Mfr. 115903)

4шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, no. 6 (Mfr. 106495)

4шт.

20

NSS

NOT SOLD SEPARAT

LEAD, ground, brush (Mfr. 813554)

2шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., cd-pltd., no. 8-32NC x 1/4" (Mfr. 122159)

2шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, no. 8 (Mfr. 106496)

2шт.

21

NSS

NOT SOLD SEPARAT

WASHER, space, commutator end (Mfr. 833602)

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING, brush (Mfr. 813521)

4шт.

23

NSS

NOT SOLD SEPARAT

PIN, brush holder hinge, w/insulation (Mfr. 812016)

2шт.

24

NSS

NOT SOLD SEPARAT

PIN, brush holder stop, w/insulation (Mfr. 812015)

2шт.

25

1881625

FRAME

commutator end, assembly (composed of (1) frame (NSS), (1) oiler 1880642, (1) pin 809062, (2) pin 812015, (2) pin 812016, (2) pin 817313, (2) pin 817314, (1) plug 1865182, (1) wick 802691) (Mfr. 1881625)

1шт.

26

NSS

NOT SOLD SEPARAT

OILER, commutator, w/cap and spring (Mfr. 1880642)

1шт.

27

802694

NOZZLE

WICK, oil, commutator end (Mfr. 802694)

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG, expansion, commutator end frame (Mfr. 1865182)

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT, thru (Mfr. 809053)

2шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, medium, cd-pltd., 1/4" (Mfr. 120380)

2шт.

30

NSS

NOT SOLD SEPARAT

PIN, dowel, commutator end (Mfr. 809062)

1шт.

31

NSS

NOT SOLD SEPARAT

PIN, brush holder hinge (Mfr. 817313)

2шт.

32

NSS

NOT SOLD SEPARAT

PIN, brush holder stop (Mfr. 817314)

2шт.

33

NSS

NOT SOLD SEPARAT

HOLDER, brush (Mfr. 810226)

4шт.

34

NSS

NOT SOLD SEPARAT

COIL, field, lower (Mfr. 812406)

1шт.

35

NSS

NOT SOLD SEPARAT

FRAME (not serviced separately - order cranking motor assembly)

1шт.

36

1868804

DRIVE

DRIVE, motor, assembly (composed of (1) gear and shaft 1855629, (1) head 1848530, (1) screw 1850810, (1) screw 1850811, (1) spring 1860639, (2) washer 805057) (Mfr. 186804)

1шт.

37

NSS

NOT SOLD SEPARAT

SCREW, motor drive spring (Mfr. 1850811)

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER, lock, drive spring screw (Mfr. 805057)

2шт.

39

NSS

NOT SOLD SEPARAT

HEAD, motor drive (Mfr. 1848530)

1шт.

40

NSS

NOT SOLD SEPARAT

SPRING, motor drive (Mfr. 1860639)

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE, motor drive (Mfr. 1849782)

1шт.

42

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT, motor drive, w/sleeve, 1849782 and spring (Mfr. 1855629)

1шт.

43

NSS

NOT SOLD SEPARAT

SCREW, motor drive spring (Mfr. 1850810)

1шт.

44

NSS

NOT SOLD SEPARAT

PIN, dowel, drive end (Mfr. 809593)

1шт.
