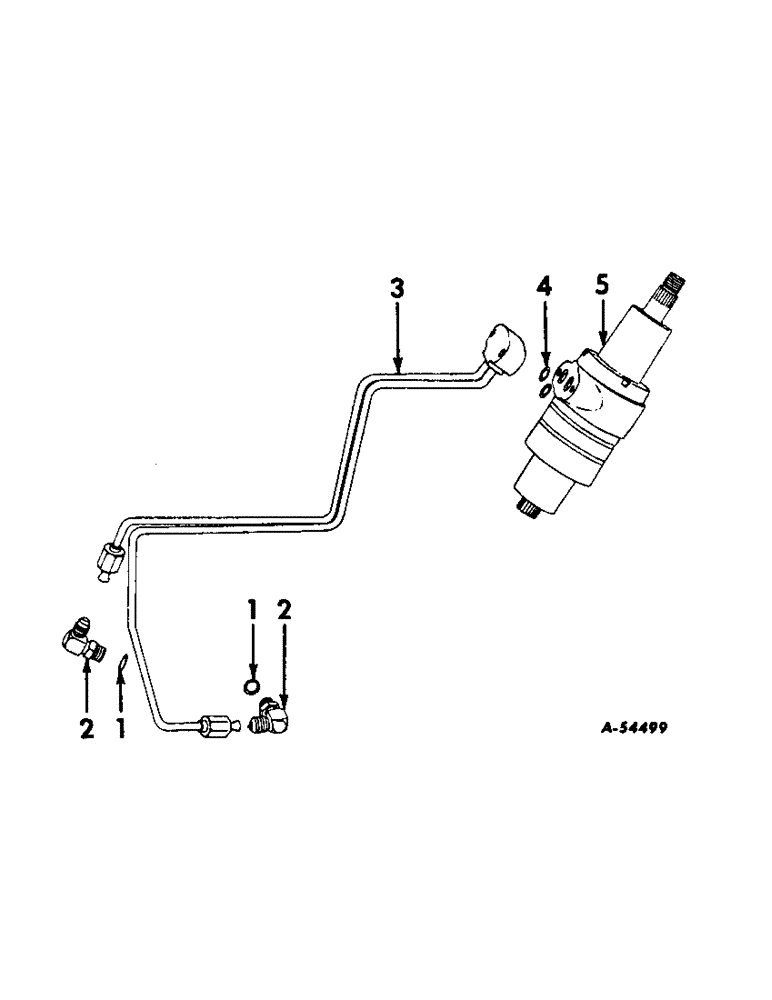

Запчасти Case IH 240 (377) - ATTACHMENTS, HYDRAULIC POWER STEERING, FARMALL AND INTERNATIONAL 240 TRACTORS Attachments

1

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, power steering tube elbow

2шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

power steering tube, 90 [0]

2шт.

3

373065R91

TUBE, manifold, power steering

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

355966R1

O-RING,0.424" ID x 0.103" Width

RING, seal, power steering tube flange

2шт.

5

373069R92

UNIT, hydraulic power steering (for components see list of parts under details of "hydraulic power steering unit")

1шт.

373090R1

SCREW, hex-soc-hd., 5/16-18NC x 1"

3шт.

373064R1

BUSHING, power steering valve support

1шт.

366566R1

CAP

steering wheel monogrammed

1шт.

361456R1

COVER, valve, LH (illustrated in Hydra-Touch System)

1шт.

373166R91, Parts accessory, hydraulic power steering (for tractors equipped w/Hydraulic Power Supply Attachment)

1шт.

366583R1

COVER, valve, RH (illustrated in Hydra-Touch System)

1шт.

373166R91, Parts accessory, hydraulic power steering (for tractors equipped w/Hydraulic Power Supply Attachment)

1шт.

NLS

NO LONGER SERVICED

hex., 7/16NC

4шт.

373166R91, Parts accessory, hydraulic power steering (for tractors equipped w/Hydraulic Power Supply Attachment)

1шт.

445588

SCREW, cap, hex-hd., 7/16-14NC x 5-3/4"

4шт.

373166R91, Parts accessory, hydraulic power steering (for tractors equipped w/Hydraulic Power Supply Attachment)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

373166R91, Parts accessory, hydraulic power steering (for tractors equipped w/Hydraulic Power Supply Attachment)

1шт.

373070R91

JOINT, universal, center and rear

1шт.

374831R1

SCREW,3/8" - 16 x 1 3/4", Gr 8

cap, hex-hd., 3/8-16NC x 1-3/4"

1шт.

374832R1

NUT, hex., 3/8-16NC

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, woodruff, no. 13

1шт.

21249D

PIN

rear steering shaft universal joint

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, valve

10шт.

373166R91, Parts accessory, hydraulic power steering (for tractors equipped w/Hydraulic Power Supply Attachment)

1шт.

373085R1

SHAFT, steering, center

1шт.

370760R91

VALVE, regulator safety and flow control (for components see list of parts under details of "Regulator Safety and Flow Control Valve")

1шт.

373087R1

YOKE

front, steering shaft rear universal joint

1шт.
