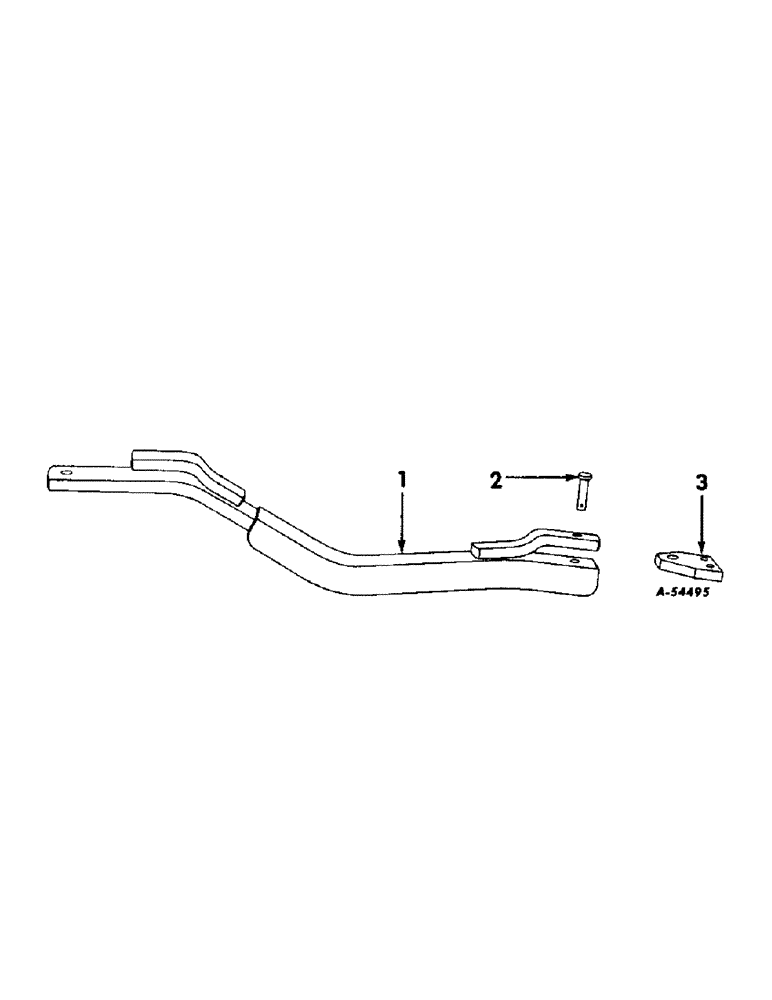

Запчасти Case IH 240 (320[A]) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL Attachments

371931R91

ATTACHMENT, swinging drawbar

1шт.

1

373094R11

DRAWBAR, swinging

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC

2шт.

Used to lock swinging drawbar in rigid position when desired

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 1-3/4"

2шт.

Used to lock swinging drawbar in rigid position when desired

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

Used to lock swinging drawbar in rigid position when desired

1шт.

2

373099R1

PIN, pivot, swinging drawbar

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

103347

WASHER

plain, 1-5/16" ID x 1-3/4" OD x .160 thick

1шт.

3

368666R1

BRACKET, anchor swinging drawbar

1шт.

220081

NUT

hex., 3/4-10NC

2шт.

271617

O-RING

SCREW, cap, hex-hd., 3/4-10NC x 3-1/2"

2шт.
