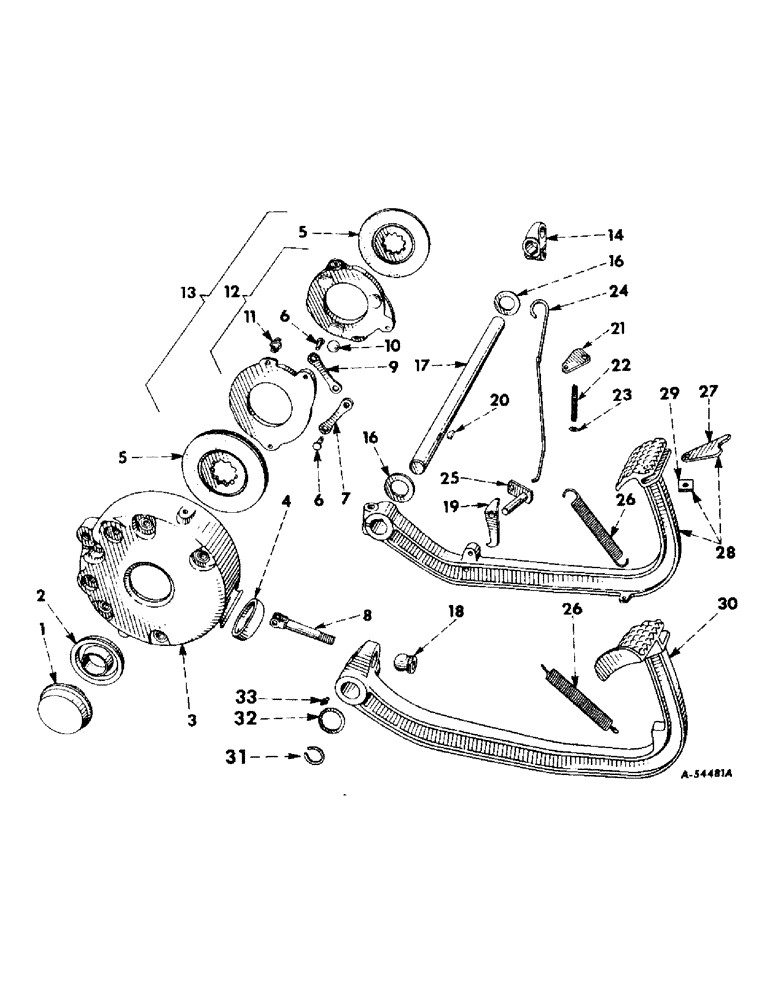

Запчасти Case IH 240 (207) - CHASSIS, BRAKES AND CONNECTIONS, FARMALL AND INTERNATIONAL 240 TRACTORS (12) - CHASSIS

1

357101R1

PLUG

cup brake housing (closed end plug)

2шт.

2

355970R1

RETAINER

PLUG, cup brake housing (open end plug)

2шт.

3

355969R3

HOUSING, brake

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(Used to plug tapped holes at top of brake housing) Hex, 3/8"-16 x 1/2", G5, Full Thd

2шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/2"

10шт.

4

370877R1

INSULATOR

BOOT, exclosure

2шт.

5

368181R91

BRAKE

DISC, middle, w/bonded facings

4шт.

6

354625R1

STUD

actuating disc

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

7

356070R1

DRAG LINK

LINK, actuating (yoke) (replaces 356069R1)

2шт.

8

370875R1

ROD

brake operating

2шт.

114494

NUT,Jam, 3/8"-24, G5

2шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, rod end, 3/8 x 1-3/32"

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

9

356070R1

DRAG LINK

LINK, actuating (plain)

2шт.

10

16028R1

BALL

7/8" dia.

6шт.

11

354627R1

SPRING

extension

4шт.

12

364837R91

PLATE

DISC, actuating, assembly (composed of (3) ball 16028R1, (2) nut 114493, (2) disc (NSS), (2) spring 354627R1, (1) link 356069R1, (2) stud 354625R1, (1) link 356070R1)

2шт.

13

368180R91

BRAKE, double disc (includes two disc, 368181R91 and one disc, assembly, 364837R91)

1шт.

14

370874R1

LEVER

brake shaft

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NF

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

16

48983D

THRUST WASHER

thrust, brake pedal shaft

2шт.

17

370941R1

SHAFT, brake pedal

1шт.

18

368298R1

BALL

brake operating rod

2шт.

19

368976R11

PAWL, brake lock

1шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

20

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, Woodruff, ni-steel, no. 13

2шт.

21

371463R1

BRACKET, brake lock operating rod

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

22

362698R1

SPRING

brake lock operating rod

1шт.

23

16558R1

WASHER

plain, 17/64" ID. x 5/8" OD x 18 GA.

1шт.

24

368973R1

ROD, brake lock operations

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, cotter, 1/16 x 5/8"

1шт.

25

368974R11

ARM, brake lock pawl

1шт.

26

368971R1

SPRING

return brake pedal

2шт.

27

43751DB

LATCH, PEDALS

PLATE, lock, brake pedal

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

rd-hd., 1/4 x 1-1/4"

1шт.

28

368969R11

PEDAL, brake, L.H. (composed of (1) pedal 368969R1 (NSS), (1) rivet 104087, (1) plate 43751DB, (1) spring 51293D)

1шт.

425-107

NUT,7/16"-14, G5

hex., 7/16-14NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

29

51293D

SPRING

tension, brake pedal lock plate

1шт.

30

368970R1

PEDAL, brake, R.H.

1шт.

31

351215R1

RING, snap, brake pedal shaft

1шт.

32

40435D

WASHER, brake pedal shaft

1шт.

33

66584D

FITTING

lubrication, straight drive type 3/16"

1шт.
