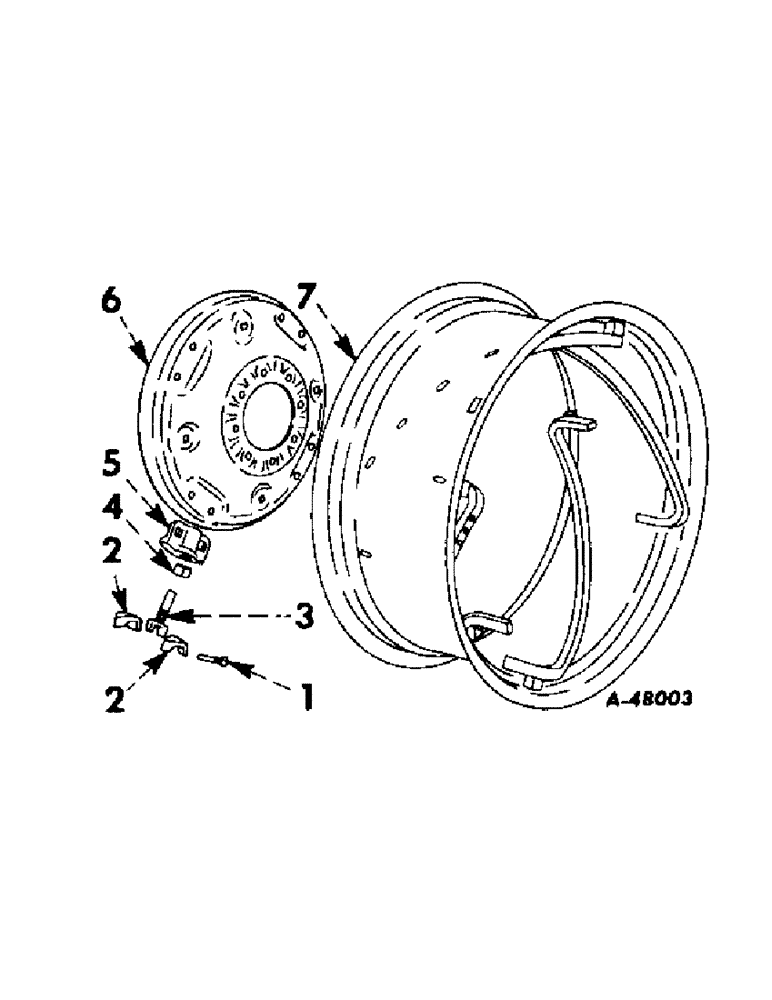

Запчасти Case IH 240 (203) - CHASSIS, REAR WHEELS, FOR INTERNATIONAL 240 TRACTORS EQUIPPED WITH POWER ADJUSTED REAR WHEELS (12) - CHASSIS

1

365326R1

SCREW

power adjusted rear wheel stop

4шт.

2

365327R2

STOP

BODY, power adjusted rear wheel stop

4шт.

3

365329R1

JACK SCREW

power adjusted rear wheel jack

8шт.

4

365328R1

NUT

power adjusted rear wheel jack screw

8шт.

5

365330R1

BODY

power adjusted rear wheel jack screw

8шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, carriage, sq-nk., cd-pltd., 5/8-11 NC x 1-1/2"

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex., cd-plt., 5/8-11 NC

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

6

371562R1

DISC, power adjusted rear wheel (24" dia.)

2шт.

6

365325R1

DISC, power adjusted rear wheel (28" dia.)

2шт.

372981R1

BOLT (MACHINE),Sq Hd, 5/8" - 18 x 2 1/2"

BOLT, rear wheel mounting (7/8" hex.) (not neccessary to include these parts in a field attachment)

16шт.

7

371561R91

RIM, power adjusted rear wheel, w/four rails (W10-24 rim for 11.2/10-24 or 12.4/11-24 tire)

2шт.

7

365324R92

RIM

power adjusted rear wheel, w/four rails (W12-28 rim for 13.6/12-28 tire)

2шт.

7

373300R91

RIM, power adjusted rear wheel, w/four rails (W10-28 rim for 12.4/11-28 tire)

2шт.

365331R1

WRENCH, jack screw (1-1/2")

1шт.
