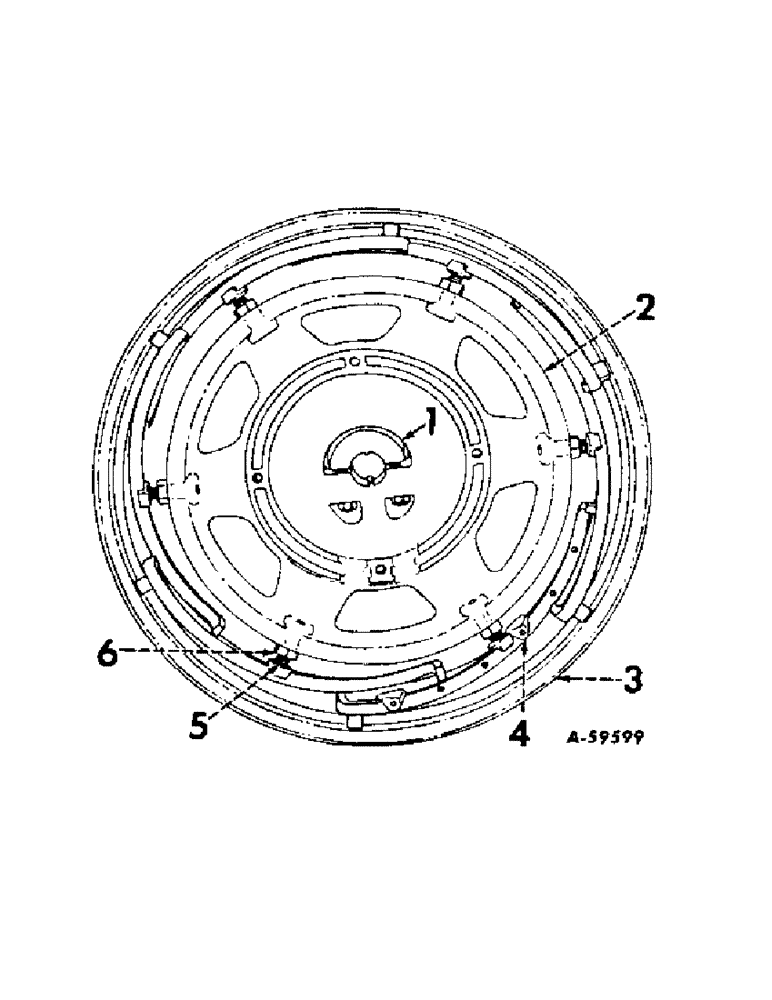

Запчасти Case IH 240 (202) - CHASSIS, REAR WHEELS, FOR FARMALL 240 TRACTORS EQUIPPED WITH 36 INCH POWER ADJUSTED REAR WHEELS (12) - CHASSIS

1

373499R1

CLAMP, hub, rear wheel

2шт.

362818R1

SCREW, rear wheel hub clamp

8шт.

575813R1

WASHER

plain, 25/32" ID x 1-1/4" OD X NO. 11 GA.

8шт.

2

373498R1

WHEEL, rear, power adjusted

2шт.

3

370865R91

RIM, power adjusted rear wheel, w/six rails (w-10-36 rim for 11.2/10-36 or 12.4/11-36 tire)

2шт.

4

365327R2

STOP

BODY, power adjusted rear wheel stop

4шт.

365326R1

SCREW

power adjusted rear wheel stop

4шт.

5

366104R1

JACK SCREW,1" - 16 x 3.34"

power adjusted rear wheel jack

12шт.

6

366105R1

WHEEL NUT,Hex, 1" - 16

power adjusted rear wheel jack screw

12шт.

366106R1

WRENCH, jackscrew (1-11/16") (illustrated with tools and tool box)

1шт.
