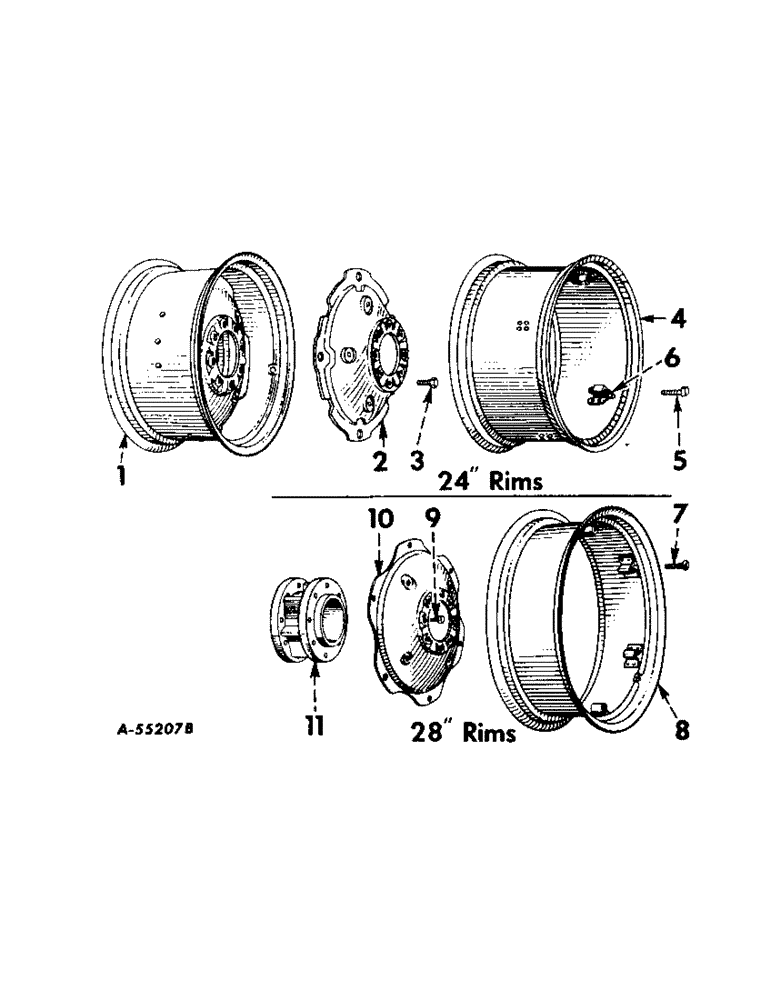

Запчасти Case IH 240 (201) - CHASSIS, REAR WHEELS, INTERNATIONAL 240 TRACTORS (12) - CHASSIS

1

364346R92

WHEEL

rear, assembly (disc type, W12-24 rim for 13.6/12-24 or 14.9/13/24 tire)

2шт.

2

369485R1

DISC, rear wheel

2шт.

3

368114R1

BOLT,Hex, 9/16" - 18 x 1.78"

mounting, rear wheel

16шт.

124634

NUT,9/16"-18, G5

16шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

16шт.

4

56206DB

RIM, rear wheel w/four clamps (W10-24 rim for 11.2/10-24 or 12.4/11-24 tire)

2шт.

4

369486R92

RIM, rear wheel w/four clamps (W12-24 rim for 13.6/12-24 or 14.9/13-24 tire)

2шт.

5

372981R1

BOLT (MACHINE),Sq Hd, 5/8" - 18 x 2 1/2"

BOLT - rear wheel rim clamp

8шт.

352777R1

NUT

rear wheel rim clamp bolt

8шт.

369730R1

WASHER

rear wheel rim clamp bolt

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

368075R92

PACKAGE, rear wheel rim clamp, w/rivets

8шт.

7

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

357099R2

NUT

rear wheel rim clamp bolt

12шт.

369730R1

WASHER

rear wheel rim clamp bolt

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

8

361700R91

RIM

rear wheel w/clamps (W10-28 rim for 12.4/11-28 tire)

2шт.

8

363988R91

RIM

rear wheel w/clamps (W12-28 rim for 13.6/12-28 tire)

2шт.

9

364451R1

BOLT,9/16" - 18 x 1 7/32"

mounting, rear wheel

16шт.

11

361724R1

WHEEL DISC

DISC, rear wheel

2шт.

11

(Not used)

1шт.
