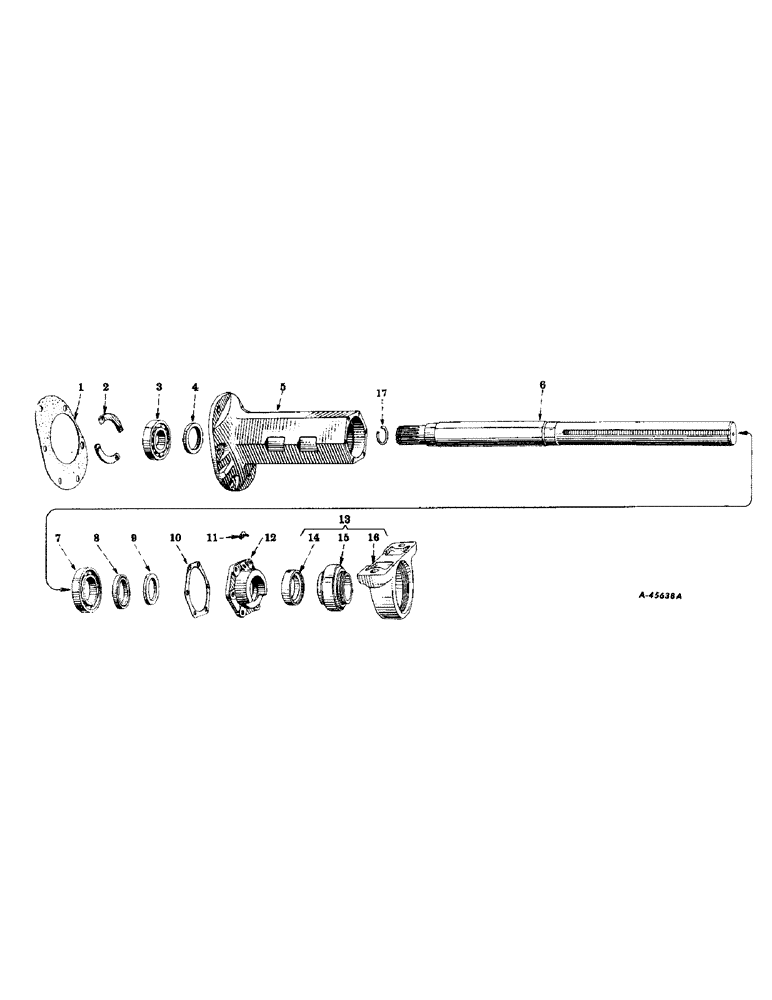

Запчасти Case IH 240 (195) - CHASSIS, REAR AXLE, FARMALL 200, 230 AND 240 TRACTORS (12) - CHASSIS

1

351113R1

GASKET

rear axle carrier

2шт.

2

351114R2

RETAINER, rear axle inner bearing

4шт.

192278

BOLT, self-locking, hex-hd., 3/8-16NC x 3/4"

8шт.

3

ST295

BEARING, BALL,50mm ID x 110mm OD x 27mm W

rear axle, inner

2шт.

4

46983D

OIL SEAL

OIL SEAL, rear axle carrier, inner

2шт.

5

351111R31

CARRIER

rear axle, L.H., w/oil seal, 46983D

1шт.

5

351112R31

CARRIER

rear axle, R.H., w/oil seal, 46983D

1шт.

425-1110

NUT,5/8"-18, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

5

351496R41

CARRIER, rear axle, L.H., w/oil seal, 46983D (for tractors equipped with 100" wide tread rear axle)

1шт.

5

351497R41

CARRIER, rear axle, R.H., w/oil seal, 46983D (for tractors equipped with 100" wide tread rear axle)

1шт.

6

370312R1

AXLE, rear (80" tread) (standard) (see note A)

2шт.

6

369393R1

AXLE, rear (88" tread) (special) (see note A

2шт.

6

370658R1

AXLE, rear (100" tread) (special) (see note A)

2шт.

7

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, ball, rear axle, outer

2шт.

8

60254D

SEAL

OIL SEAL, rear axle, outer

2шт.

9

351118R1

SEALING WASHER

WASHER, felt, rear axle

2шт.

10

351117R1

GASKET

rear axle carrier cap

2шт.

11

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 deg. angle (optional with 109462)

2шт.

11

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 deg. angle (optional with 271285)

2шт.

12

351116R11

CAP, rear axle carrier, w/washer, 351118R1 and oil seal, 60254D

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

13

658605R91

BEARING, pillow block, front frame axle support, assembly (optional with 658954R91) (composed of (1) bearing 658608R91, (1) collar 658609R11, (1) housing 658607R1)

2шт.

For farmall 200 and 230 tractors equipped with cotton picker mounting attachment.

1шт.

13

658964R91

BEARING, pillow block, front frame axle support, assembly (optional witth 658605R91) (composed of (1) bearing 657379R92, (1) collar 657382R11, (1) housing 658380R1)

2шт.

For farmall 200 and 230 tractors equipped with cotton picker mounting attachment.

1шт.

14

657382R11

COLLAR, bearing, w/set screw (Fafnir)

2шт.

For farmall 200 and 230 tractors equipped with cotton picker mounting attachment.

1шт.

14

658609R11

COLLAR, bearing, w/set screw (Link-belt)

2шт.

For farmall 200 and 230 tractors equipped with cotton picker mounting attachment.

1шт.

15

657379R92

BEARING, ball self-aligning, w/seals (Fafnir)

2шт.

For farmall 200 and 230 tractors equipped with cotton picker mounting attachment.

1шт.

15

658608R91

BEARING, ball self-aligning, w/seals (Link-belt)

2шт.

For farmall 200 and 230 tractors equipped with cotton picker mounting attachment.

1шт.

16

657380R1

HOUSING, pillow block (Fafnir)

2шт.

For farmall 200 and 230 tractors equipped with cotton picker mounting attachment.

1шт.

16

658607R1

HOUSING, pillow block (Link-belt)

2шт.

For farmall 200 and 230 tractors equipped with cotton picker mounting attachment.

1шт.

17

358236R1

RING

snap, rear axle

2шт.

351495R96

PARTS ACCESSORY, 100" wide tread rear axle (special) (composed of (2) axle 370658R1, (2) gasket 351113R1, (2) bearing ST269A, (2) gasket 351117R1, (2) bearing ST295, (4) retainer 351114R2, (2) cap 351116R11, (2) ring 358236R1, (1) carrier 351496R41

1шт.

370374R91

AXLE

PARTS ACCESSORY, 88" wide tread rear axle (special) (consists of two rear axles, 369393R1 and two snap rings, 358236R1)

1шт.
