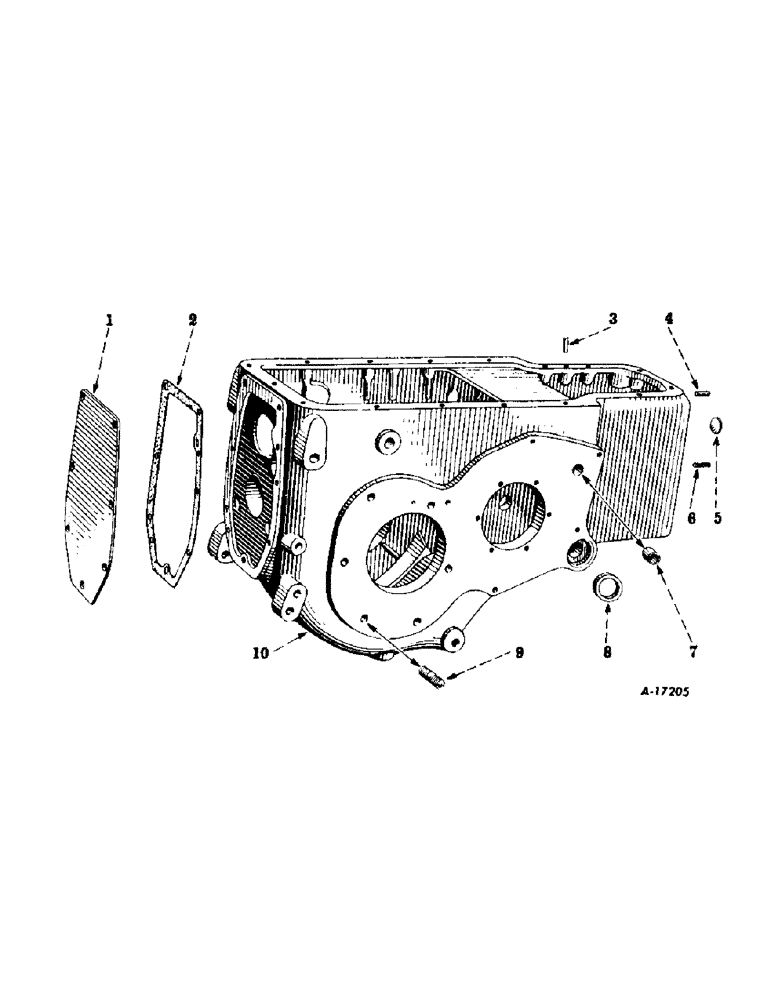

Запчасти Case IH 240 (192) - CHASSIS, REAR FRAME (12) - CHASSIS

1

46060D

PLATE, rear frame cover

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1"

7шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

7шт.

2

60589DA

GASKET

rear frame cover plate

1шт.

3

357124R1

DOWEL

PIN, dowel, rear frame cover

2шт.

4

357232R1

PIN

dowel, rear frame clutch housing

2шт.

5

172558

PLUG,Exp, 1 1/4"

expansion, rear frame idler shaft hole, 1-1/4"

1шт.

6

356514R1

STUD, countershaft bearing cage

3шт.

103026

NUT,3/8"-24, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

brake band lever shaft

2шт.

8

360076R92

SEAL

OIL SEAL, brake pedal shaft

2шт.

9

356608R1

STUD, rear axle carrier (2-7/16")

12шт.

9

368079R1

STUD, rear axle carrier (2-5/8")

12шт.

10

351131R51

FRAME, rear assembly (composed of, (2) bushing 48594DA, (1) plug 143997, (2) dowel 357124R1, (1) plug 364016R2, (1) frame 351131R5 (NSS), (1) plug 172558, (2) oil seal 360076R92, (12) stud 368079R1, (2) pin 357232R1, (3) stud 356514R1)

1шт.

143997

PLUG

pipe, sq-socket, stl., 1/4"

1шт.

364016R2

PLUG

pipe, sq-socket, stl., 3/4"

1шт.
