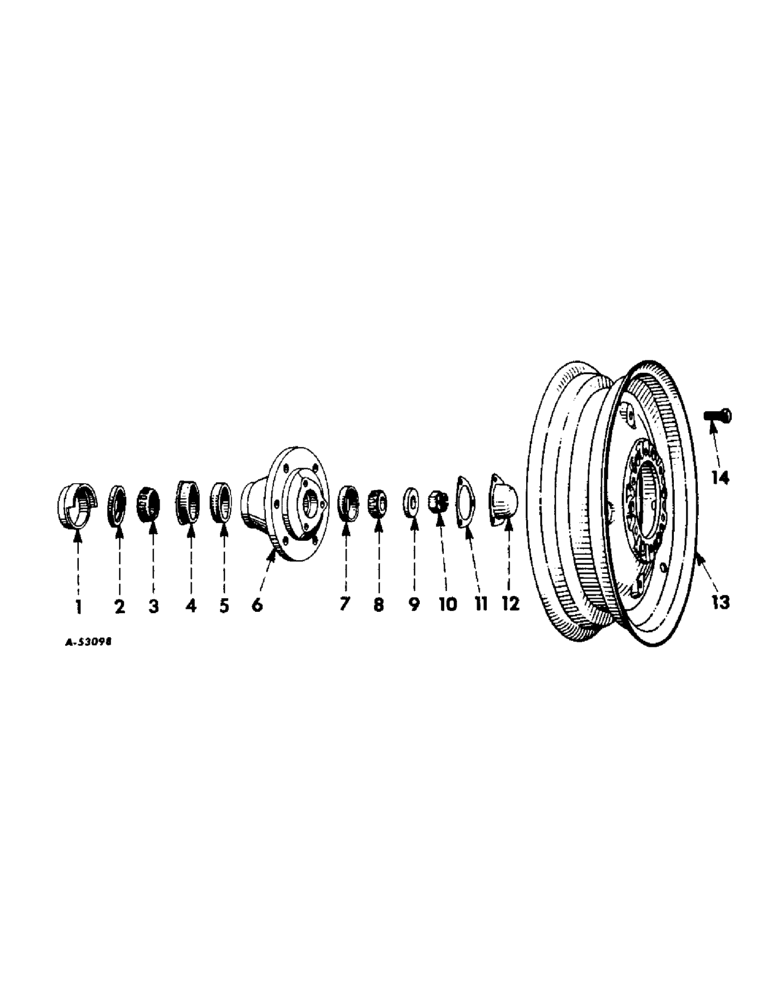

Запчасти Case IH 240 (190) - CHASSIS, DUAL FRONT WHEELS, FARMALL AND INTERNATIONAL 240 TRACTORS (12) - CHASSIS

1

43462D

DEFLECTOR

SHIELD, front wheel dust

2шт.

2

368629R91

SEAL

front wheel dust

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, front wheel inner bearing

2шт.

4

49117D

CUP ASSY.

RING, front wheel oil seal wear

2шт.

5

651817R1

BEARING CUP

CUP, front wheel inner bearing

2шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

6

370289R11

HUB

front wheel, assembly (Farmall 240) (composed of, (1) cup 651814R1, (1) cup 651817R1, (1) hub 370289R1 (NSS), (1) ring 49117D)

2шт.

6

368626R11

HUB

front wheel, assembly (International 240) (composed of, (1) cup 651814R1, (1) cup 651817R1, (1) hub 368626R1 (NSS), (1) ring 49117D)

2шт.

7

651814R1

BEARING CUP

CUP, front wheel outer bearing

2шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, front wheel outer bearing

2шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

9

369936R1

WASHER

front wheel outer bearing retainer

2шт.

10

102649

SLOTTED NUT,5/8"-18, G5

NUT, , Front wheel outer bearing retainer 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

11

49116D

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

49115D

CYLINDER END CAP

CAP, front wheel hub

2шт.

179814

SPACER

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

370603R91

WHEEL, front, assembly (disc type) (w/4.00E-16DC rim for 5.50-16 or 6.00-16 or 6.50-16 tire) (Farmall 240)

2шт.

13

370604R91

WHEEL ASSY.

WHEEL, front, assembly (disc type) (w/3.00D-15DC rim for 5.00-15 tire) (Farmall 240)

2шт.

13

370605R91

WHEEL, front, assembly (disc type) (w/3.00D x 19DC rim for 4.00-19 tire) (Farmall 240)

2шт.

13

361714R91

WHEEL ASSY.

WHEEL, front, assembly (disc type) (w/4.25KA-16DC rim for 5.50-16 or 6.00-16 tire) (International 240)

2шт.

14

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

375128R91

KIT

PACKAGE, overhaul, front wheel bearing (consists of, (1) cone 651815R91, (1) gasket 49116D, (1) cone 651818R91, (1) ring 49117D, (1) cup 651814R1, (1) seal 368629R91, (1) cup 651817R1)

1шт.
