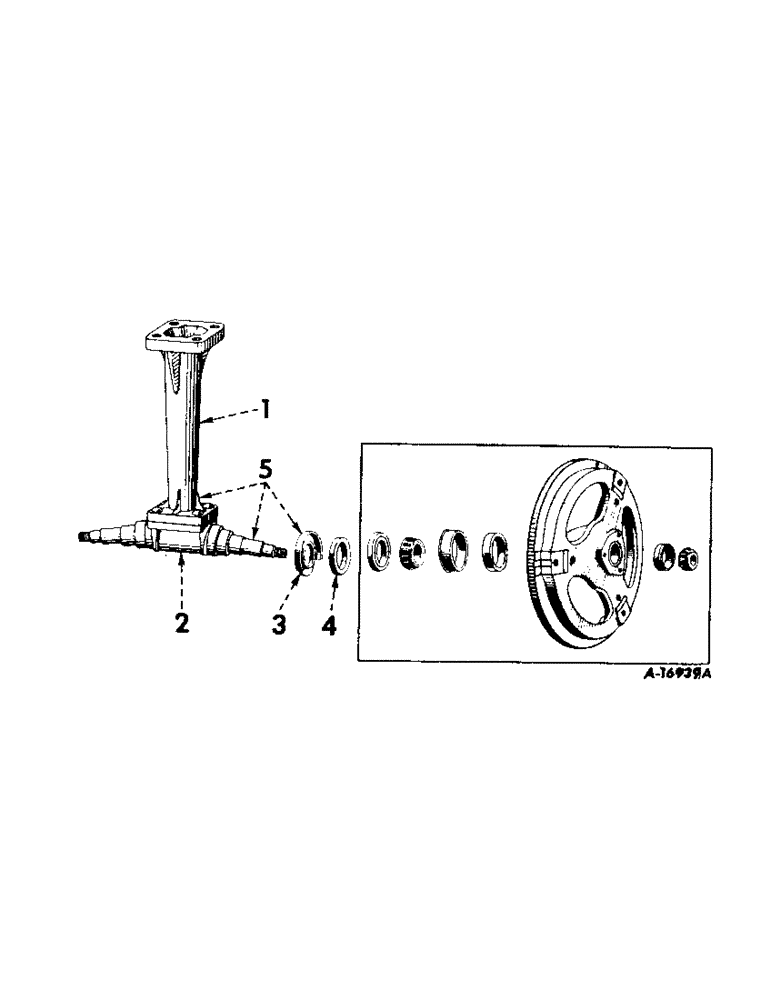

Запчасти Case IH 240 (185) - CHASSIS, FRONT AXLE AND BOLSTER, FARMALL 200, 230 AND 240 TRACTORS (12) - CHASSIS

1

8624DCX

BOLSTER, front wheel, w/four rivet, 357126R1

1шт.

2

370288R11

AXLE

front, w/four rivet, 357126R1 (Farmall 240 tractors)

1шт.

2

55452DBX

AXLE

front, w/four rivets, 357126R1 (Farmall 200 and 230 tractors)

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

Q1538

WASHER

steel, plain, 21/32" I.D. x 1-1/4" O.D. x no. 12 GA. (Farmall 200 and 230 tractors)

2шт.

3

55454D

SHIELD

DEFLECTOR, dust, front axle (Farmall 200 and 230 tractors)

2шт.

3

43462D

DEFLECTOR

dust, front axle (Farmall 240 tractors)

2шт.

4

55453D

WASHER

felt, front axle (Farmall 200 and 230 tractors)

2шт.

5

55461DE

AXLE, front, w/bolster, assembly (Farmall 200 and 230 tractors) (composed of, (1) axle 55452DB (NSS), (1) bolster 8624DC (NSS), (2) deflector 55454D, (4) rivet 357126R1)

1шт.

5

370287R91

AXLE, front, w/bolster, assembly (Farmall 240 tractors) (composed of, (1) axle 370288R1 (NSS), (1) bolster 8624DC (NSS), (2) deflector 43462D, (4) rivet 357126R1)

1шт.

357126R1

RIVET, front axle and bolster

4шт.
