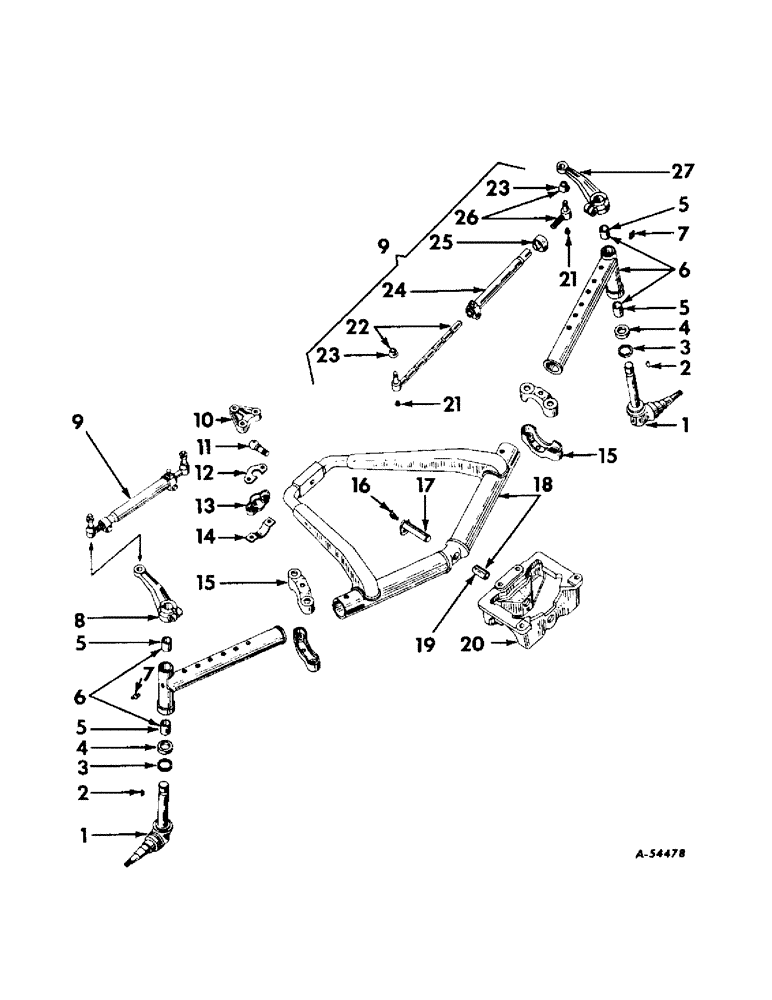

Запчасти Case IH 240 (183) - CHASSIS, FRONT AXLE, INTERNATIONAL 240 TRACTORS (12) - CHASSIS

1

371705R91

KNUCKLE

steering, assembly, (composed of, (1) deflector 43462D, (1) knuckle 368624R1 (NSS), (1) key 117997, (1) seal 368629R91)

2шт.

1

373890R91

KNUCKLE, steering, assembly (for tractors with increased clearance axle (composed of, (1) deflector 43462D, (1) post 373891R1 (NSS), (1) key 117997, (1) knuckle 368624R1 (NSS) (1) seal 368629R91)

2шт.

2

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

3

368627R1

WASHER

felt, steering knuckle

2шт.

4

365317R1

BEARING, thrust, steering knuckle

2шт.

5

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

steering knuckle post

4шт.

6

369001R11

EXTENSION, front axle, assembly

2шт.

6

373888R91

EXTENSION, front axle, assembly (for tractors with increased clearance axle)

2шт.

7

110161

FITTING, lubrication, straight, drive type, 3/16" (optional with 125617)

2шт.

7

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (optional with 110161)

2шт.

8

369007R1

ARM, steering knuckle, R.H.

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

1шт.

9

369406R91

TIE ROD, adjustable, assembly (composed of, (1) clamp 356543R1, (1) screw 179844, (1) end 356540R91, (1) screw 179845, (2) fitting 109454, (1) tube 369409R1, (2) nut 102635, (2) washer 114606, (1) rod 369407R11)

2шт.

10

368997R1

SOCKET

ball, stay rod

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8"

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-3/4"

2шт.

11

365453R1

BALL

stay rod socket

1шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT, hex., slotted, 5/8-18NF

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

12

368999R1

SHIM

stay rod ball socket cap

3шт.

13

368998R1

SOCKET

CAP, stay rod ball socket

1шт.

14

369000R1

PLATE, lock, stay rod ball socket cap

1шт.

15

368615R1

CLAMP, front axle extension

4шт.

102639

NUT,5/8"-11, G5

6шт.

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11 NC x 3-1/2"

4шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, cap, hex-hd., 5/8-11 NC x 5", Course Threads

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

6шт.

16

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 450, 1/8"-27 (optional w/173102)

1шт.

16

173102

LUBE NIPPLE

FITTING, lubrication, 450, 1/8"-27 (optional w/126152)

1шт.

17

368604R11

PIN ASSY.,31.55mm OD x 116.84mm L

PIN, pivot, front axle

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

18

370762R91

AXLE, front, w/bushing, 368608R1

1шт.

19

368608R1

BUSHING,31.76mm ID x 34.95mm OD x 53.34mm L

front axle pivot

1шт.

20

369008R2

BOLSTER

lower

1шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, cap, hex-hd., 5/8-11 NC x 1-7/8"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (31/64" long) (optional w/271287) 1/4"-28 NPT x .54" lg

4шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (31/64" long) 1/4"-28 NPT x .54" lg

4шт.

22

369407R11

TIE-ROD

TIE ROD, w/cover, 358209R1, nut, 102647 and pin, 103385

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

23

358209R1

COVER

dust, tie rod end

4шт.

24

369409R11

TUBE, tie rod

2шт.

102454

LINK

SCREW, set, sq-hd., (oval-pt.) 3/8-16NC x 3/4"

2шт.

25

356543R1

CLAMP

tie rod

2шт.

102635

NUT,3/8"-16, G5

4шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-5/8"

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth

4шт.

26

356540R91

END

tie rod, w/cover, 358209R1, nut, 102647 and pin, 103385

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

369006R1

ARM, steering knuckle, L.H.

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

1шт.

373983R91

PARTS ACCESSORY, increased clearance front axle (consists of, (1) arm 369006R1, (2) nut 102637, (1) arm 369007R1, (2) nut 102649, (2) extension 373888R91, (2) pin 103386 (2) fitting 110161, (2) screw 179893, (2) knuckle 373890R91, (2) washer 369936R1)

1шт.
