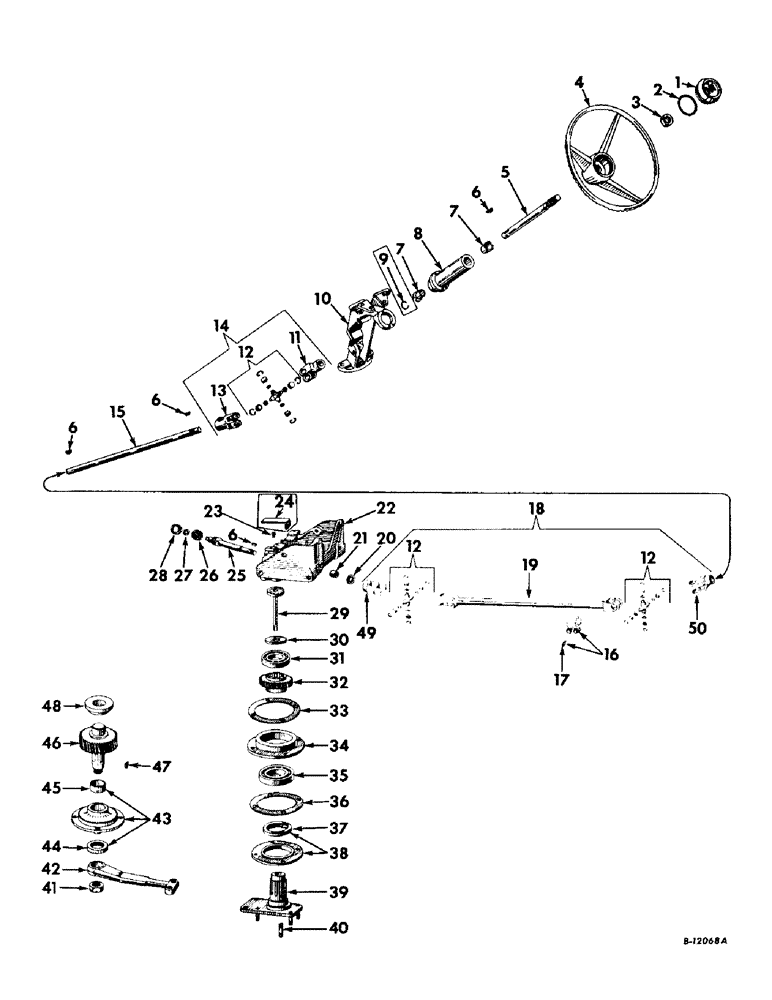

Запчасти Case IH 240 (179) - CHASSIS, STEERING MECHANISMS, FARMALL AND INTERNATIONAL 240 TRACTORS (12) - CHASSIS

1

366558R1

PRODUCT GRAPHIC

CAP, monogrammed, steering wheel (for tractors w/o power steering)

1шт.

1

366566R1

CAP

monogrammed, steering wheel (for tractors w/power steering)

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

RING, seal, steering wheel cap

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel (optional w/368576R1)

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel (optional w/367232R1)

1шт.

4

366557R1

WHEEL

steering (18" dia.)

1шт.

5

369710R1

SHAFT, steering, rear (for tractors w/o power steering)

1шт.

557270R1

WASHER

plain, 29/32" ID x 1-1/4 OD x .119 GA.

1шт.

NSS

NOT SOLD SEPARAT

Farmall 240-3137 up

1шт.

NSS

NOT SOLD SEPARAT

International 240-8338 up

1шт.

6

103462

KEY

Woodruff, no. 13 (one used on tractors w/power steering)

4шт.

6

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, Woodruff, no. 13 (for tractors w/power steering)

1шт.

7

368513R1

BUSHING,1.3125" OD x 0.875"

BEARING, support, rear steering shaft upper (for tractors w/o power steering)

2шт.

8

369705R1

SUPPORT, rear steering shaft upper (for tractors w/o power steering)

1шт.

9

359909R1

RING

snap, rear steering shaft (for tractors w/o power steering)

1шт.

NSS

NOT SOLD SEPARAT

Farmall, Serial Range: 240-501-3136

1шт.

NSS

NOT SOLD SEPARAT

International, Serial Range: 240-501-8337

1шт.

10

369704R1

SUPPORT, rear steering shaft lower

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

(For tractors w/o power steering) Hex, 5/16"-18 x 1 1/8", G5

3шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (For tractors w/o power steering) 5/16"

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

350256R1

YOKE

steering universal joint (one used on tractors equipped, w/power steering)

1шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

11

373071R1

YOKE, adjusting, rear steering shaft universal joint (for tractors w/power steering)

1шт.

21249D

PIN

groove, 3/16 x 1-3/8"

1шт.

12

363313R91

BEARING

AND SPIDER, steering universal joint (optional w/363321R91)

3шт.

12

363321R91

BEARING

AND SPIDER, steering universal joint (optional w/363313R91)

3шт.

13

369657R1

YOKE

adjusting rear steering shaft universal joint

1шт.

374832R1

NUT, hex., 3/8-16NC

1шт.

374831R1

SCREW,3/8" - 16 x 1 3/4", Gr 8

cap, hex-hd., 3/8-16NC x 1-3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

369709R91

JOINT, universal, assembly (center and rear) (for tractors w/o power steering)

1шт.

14

373070R91

JOINT, universal, assembly (center and rear) (for tractors w/power steering)

1шт.

15

369708R1

SHAFT, steering, center (for tractors w/o power steering)

1шт.

15

373085R1

SHAFT, steering, center (for tractors w/power steering)

1шт.

16

351126R12

BEARING CARRIER

steering shaft center, assembly

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

66584D

FITTING

lubrication

1шт.

18

369706R91

SHAFT, steering 369707R91 w/two bearing and spider and two yoke, 350256R1 (for tractors w/o power steering)

1шт.

18

373086R91

SHAFT, steering, 369707R91, w/two bearing and spider and one yoke, 350256R1 and one yoke, 373087R1) (for tractors w/power steering)

1шт.

19

369707R91

SHAFT, steering, front assembly

1шт.

20

364468R91

SEAL

OIL SEAL, steering worm shaft

1шт.

21

41096DBR

BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L

steering worm

1шт.

22

368962R21

BOLSTER, front, assembly, (composed of, (1) bushing 41096DBR, (1) plug 356568R1, (1) housing 368962R2 (NSS), (1) plug 103866, (1) oil seal 364468R91, (1) plug 444658)

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., C.1. 1/4" (optional w/103878)

1шт.

103878

PLUG

pipe, sq-hd., stl., 1/4" (optional w/103866)

1шт.

444658

PLUG

pipe, sq-socket, C.1. 1/4" (optional w/444660)

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, pipe, sq-socket, stl., 1/4" (optional w/444658)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8 - 1 INC x 2"

3шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, cap, hex-hd., 5/8 - 1 INC x 2-3/4"

3шт.

23

356568R1

PLUG, steering gear housing vent

1шт.

179814

SPACER

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24

368963R1

BRACKET, starting crank

1шт.

NSS

NOT SOLD SEPARAT

Farmall, Serial Range: 240-501-2686

1шт.

NSS

NOT SOLD SEPARAT

International, Serial Range: 240-501-7453

1шт.

25

371016R1

GEAR

WORM, steering (Farmall 240) (for tractors equipped, w/adjustable wide front axle)

1шт.

25

351123R2

CAPSCREW

WORM, steering (Farmall 240)

1шт.

25

369703R1

SHAFT

WORM, steering (International 240)

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

26

ST225BT

BALL BEARING

BEARING, ball, steering worm shaft

1шт.

27

69442D

NUT

steering worm

1шт.

28

6660DA

BEARING CAP

steering worm bearing

1шт.

29

52953DX

SHAFT

WASHER, steering worm gearshaft upper bearing, and shaft (Farmall 240)

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2nf-20

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

30

352417R1

WASHER

SEAL, steering worm gear shaft (Farmall 240)

1шт.

31

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

BEARING, upper, steering worm gear shaft (Farmall 240)

1шт.

32

351122R1

GEAR

worm, steering (38 teeth) (Farmall 240)

1шт.

32

371017R1

GEAR

worm, steering (Farmall 240) (for tractors equipped w/adjustable wide front axle)

1шт.

33

52951D

GASKET

steering worm gear shaft lower bearing cage

1шт.

34

8324D

CAGE

steering worm gear shaft lower bearing (Farmall 240)

1шт.

35

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, lower, steering worm gear shaft (Farmall 240)

1шт.

36

52952D

GASKET

steering worm shaft lower bearing cage cover (Farmall 240)

1шт.

37

360457R91

SEAL

OIL SEAL, steering worm gear shaft (Farmall 240)

1шт.

38

350009R12

COVER, steering worm gear shaft lower bearing cage w/oil seal, 360457R91 (Farmall 240)

1шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14nc x 1-1/2"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

39

53001DX

SHAFT, steering worm gear, w/four studs, 53002D (Farmall 240)

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20nf

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

41

70121D

NUT

steering gear arm (International 240)

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

42

369697R1

ARM, steering gear (International 240)

1шт.

43

369699R11

CAGE, steering worm gear w/bushing, 369700R1 and oil seal, 372370R91 (International 240)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14nc x 1-1/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

44

372370R91

SEAL

OIL SEAL, steering worm gear case (International 240)

1шт.

45

369700R1

BUSHING

steering worm gear case (International 240)

1шт.

46

369696R1

GEAR, worm steering (50 teeth) (International 240)

1шт.

47

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, Woodruff (type - A)

1шт.

48

369702R1

BUSHING

ADAPTER, steering worm gear shaft upper bearing (International 240)

1шт.

49

350256R1

YOKE

front steering shaft front universal joint

1шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

50

350256R1

YOKE

front steering shaft rear universal joint (tractors w/o power steering)

1шт.

50

373087R1

YOKE

front steering shaft rear universal joint (tractors w/power steering)

1шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.
