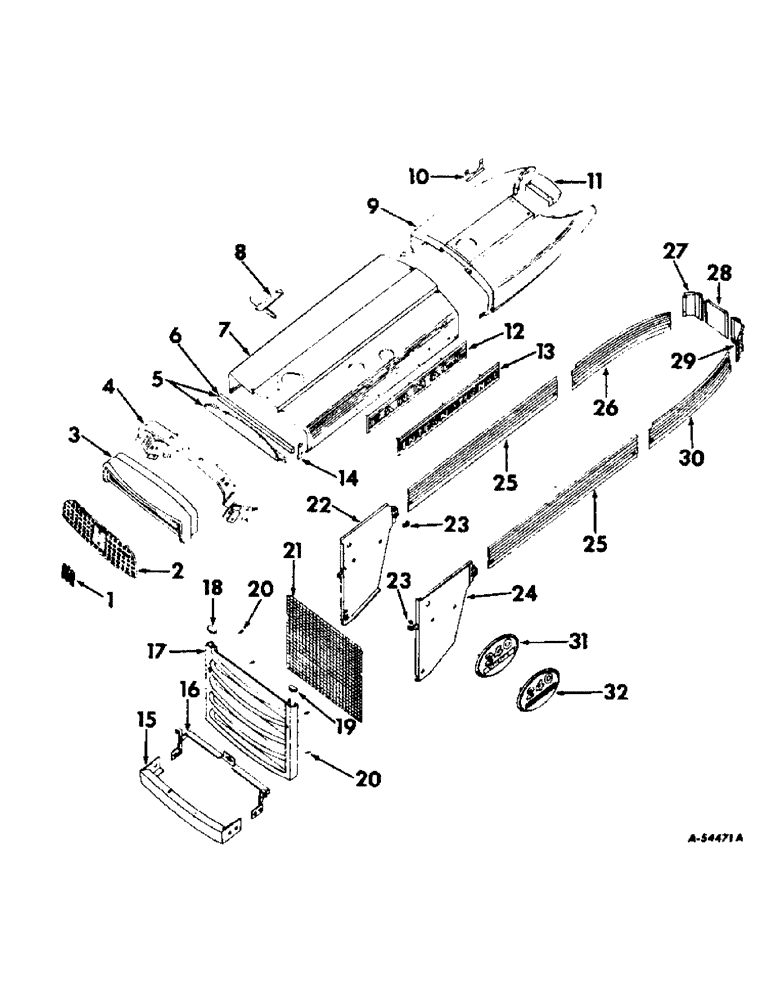

Запчасти Case IH 240 (137) - CHASSIS, HOOD AND RADIATOR GRILLE, FARMALL AND INTERNATIONAL 240 TRACTORS (12) - CHASSIS

1

368523R1

PRODUCT GRAPHIC

EMBLEM, hood, I.H.

1шт.

155097

SCREW, mach., rd-hd., cr-rec., no. 10-24NC x 5/16"

2шт.

2

369260R1

GRILLE, hood

1шт.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

hood grille

3шт.

3

369256R11

HOUSING, hood grille w/four nuts, 363885R91

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16-18NC

4шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

3шт.

4

373043R91

SUPPORT, hood grille housing, assembly

1шт.

110633

NUT,#10-24

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

5

370088R91

BAFFLE, radiator, assembly

1шт.

110633

NUT,#10-24

4шт.

6

370181R1

GASKET

baffle, radiator

1шт.

7

369332R11

HOOD, assembly (tractors w/undeslung exhaust) (gasoline)

1шт.

7

369476R11

HOOD, assembly (tractors w/vertical exhaust) (gasoline)

1шт.

7

371320R11

HOOD, assembly (distillate)

1шт.

110633

NUT,#10-24

8шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, hood fastener

8шт.

8

369180R1

PRODUCT GRAPHIC

ORNAMENT, hood

1шт.

8

369180R1GV

DECAL

Value, Ornament, Hood

1шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

mach., hex-hd., w/washer, no. 10-24 x 7/16"

2шт.

9

369683R11

HOUSING, instrument panel w/two nuts, 366885R91 (Farmall 240)

1шт.

9

369267R11

HOUSING, instrument panel w/two nuts, 366885R91 (International 240)

1шт.

366885R91

NUT, floating cage, 5/16-18NC

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel housing (5/16-18NC x 5/8")

6шт.

369916R1

CAPSCREW,#10 - 24 x 7/16"

SCREW, instrument panel housing (no. 10-24NC x 7/16")

8шт.

10

369269R1

GASKET

PLATE, closure, instrument panel housing (for tractors w/o hydra- touch system)

1шт.

10

370182R1

PLATE, closure, instrument panel housing (for tractors w/hydra- touch system)

1шт.

373193R1

SCREW, cutting, rd-hd., cr-rec., no. 10-24NC x 3/8"

2шт.

11

369268R11

CHANNEL, instrument panel housing

1шт.

12

369058R1

PLATE, name, McCormick Farmall

2шт.

370786R1

FASTENER

tubular clip

12шт.

13

369059R1

PRODUCT GRAPHIC

PLATE, name, International

2шт.

370786R1

FASTENER

tubular clip

12шт.

14

369173R1

SPRING

hood

8шт.

15

369336R11

PAN, lower grille, assembly

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, grille pan

6шт.

16

373718R11

BRACKET, mounting, side sheet, assembly (will work for 369337R11)

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

48712D

SPACER, side sheet mounting bracket

2шт.

NSS

NOT SOLD SEPARAT

Farmall 240 -, Serial Range: 501-2486

2шт.

NSS

NOT SOLD SEPARAT

International 240 -, Serial Range: 501-7453

2шт.

86224H

SPACER,1/4" Pipe x 3/8"

Side sheet mounting bracket 1/4" Pipe x 3/8"

2шт.

NSS

NOT SOLD SEPARAT

Farmall 240 - 2497 up

2шт.

NSS

NOT SOLD SEPARAT

International 240 - 7454 up

2шт.

17

368718R11

GRILLE, radiator, assembly

1шт.

369866R1

NUT

quick release fastener

2шт.

372648R1

CAPSCREW

SCREW, radiator grille

2шт.

18

369956R1

CAP, radiator grille, R.H.

1шт.

9404121

SCREW, tapping, slt-pan-hd., no.4-40 x 1-1/4"

1шт.

19

369955R1

CAP, radiator grille, L.H.

1шт.

9404121

SCREW, tapping, slt-pan-hd., no. 4-40 x 1-1/4"

1шт.

20

368175R1

BUMPER

radiator grille flange

4шт.

21

368720R1

SCREEN, radiator grille

1шт.

22

369343R11

SIDE SHEET, radiator grille, R.H. w/two receptacles, 369865R2 and four rivets, 134772

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

1шт.

369344R1

SCREW, side sheet

1шт.

23

369865R2

FASTENER

RECEPTACLE, quick release fastener

4шт.

134772

RIVET, flat-hd., solid, 3/32 x 3/16"

8шт.

24

369342R11

SIDE SHEET, radiator grille, L.H., w/two receptacles, 369865R2 and four rivet, 134772

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

1шт.

369344R1

SCREW, side sheet

1шт.

25

369335R1

SKIRT, hood

2шт.

369866R1

NUT

quick release fastener

4шт.

372784R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

hood skirt

4шт.

26

369271R11

SKIRT, instrument panel housing, R.H.

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, skirt fastener

1шт.

27

369274R1

SKIRT, instrument panel housing corner, R.H.

1шт.

28

369275R11

SKIRT, instrument panel housing rear w/nuts

1шт.

369916R1

CAPSCREW,#10 - 24 x 7/16"

SCREW, rear skirt fastener

4шт.

29

369273R1

SKIRT, instrument panel housing corner, L.H.

1шт.

30

369270R11

SKIRT, instrument panel housing, L.H.

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, skirt fastener

1шт.

31

369063R1

PLATE, model symbol, 240 utility

2шт.

370786R1

FASTENER

tubular clip

4шт.

32

369062R1

PLATE, model symbol, 240

2шт.

370786R1

FASTENER

tubular clip

4шт.
