Запчасти Case IH 240 (111) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, BATTERY IGNITION, 6 VOLT, FARMALL 200 TRACTORS (06) - ELECTRICAL SYSTEMS

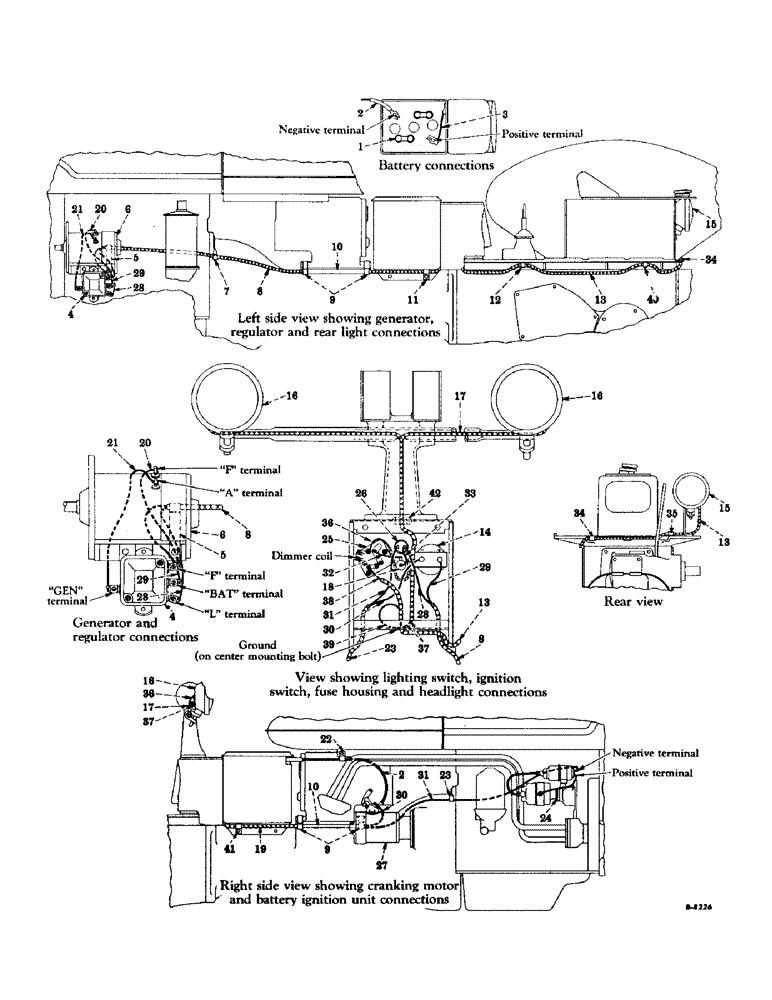

Схема запчастей Case IH 240 - (111) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, BATTERY IGNITION, 6 VOLT, FARMALL 200 TRACTORS (06) - ELECTRICAL SYSTEMS
23
19
26
6
2
42
25
8
35
1
32
15
37
6
9
5
23
3
15
31
36
38
6
2
29
21
13
29
7
31
24
16
22
39
34
4
14
28
21
16
10
18
13
8
17
17
30
27
12
20
28
10
4
37
16
29
13
34
30
40
41
28
33
20
9
38
11
8

Артикул

Название

Примечание

Количество

1

355196R93

SPARE PART BATTERY (Auto-Lite IMS-85R) (6 volt)

1шт.

2

350735R91

CABLE

CABLE, battery to starting switch, w/bolt, 356062R91

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve and washer

1шт.

3

350736R91

CABLE

CABLE, battery to ground, w/bolt, 356062R91

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve and washer

1шт.

4

360898R91

REGULATOR

REGULATOR, voltage, (6 volt) assembly (for components see list of parts under details of "voltage regulator")

1шт.

5

362126R1

CLIP

CLIP, cable harness (on generator bracket rear bolt)

1шт.

6

NSS

NOT SOLD SEPARAT

GENERATOR (for components see list of parts under details of "generator")

1шт.

6

NSS

NOT SOLD SEPARAT

GENERATOR, (for components see list of parts under details of "generator")

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

362482R1

CLIP, cable harness (on clutch housing bolt L.H. side)

1шт.

8

354243R92

HARNESS

HARNESS, cable

1шт.

9

350741R1

SPARE PART CLIP, cable harness (on Touch-Control cylinder block mounting bolt)

4шт.

10

363479R1

SPARE PART SHIELD, cable harness

2шт.

11

363478R1

SPARE PART CLIP, cable harness (on battery box rear hold down bolt) (L.H. side) (for tractors equipped with Touch-Control)

1шт.

12

363487R1

CLIP

CLIP, rear light, cable (on underside of rear frame cover)

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

363486R91

SPARE PART HARNESS, rear light cable

1шт.

14

360053R91

INDICATOR

INDICATOR, charge, w/clamp, six nuts and six washers

1шт.

15

373572R91

LAMP

LIGHT, rear, sealed beam, (6 volt) assembly (for components see list of parts under details of "headlights or rear light") (will work for 357884R94)

1шт.

16

373572R91

LAMP

HEADLIGHT, sealed beam, (6 volt) assembly (for components see list of parts under details of "headlight or rear light") (will work for 357884R94)

2шт.

17

358916R92

HARNESS

HARNESS, headlight cable

1шт.

18

354232R91

BOX

HOUSING, fuse w/two cables, knob, 356445R91, nut and washer

1шт.

19

358109R92

HARNESS

CABLE, ignition and lighting

1шт.

20

358116R92

SPARE PART CABLE, generator "F" terminal to regulator "F" terminal

1шт.

21

358112R92

CABLE

CABLE, generator "A" terminal to regulator "GEN" terminal.

1шт.

22

362123R1

CLIP

CLIP, battery cable (on fuel tank rear mounting bolt)

1шт.

23

363480R1

SPARE PART CLIP, battery ignition switch cable (on clutch housing bolt)

1шт.

24

NSS

NOT SOLD SEPARAT

UNIT, battery ignition (for components see list of parts under details of "battery ignition")

1шт.

25

363130R91

SWITCH

SWITCH, lighting, assembly (Delco-Remy) (will work for 362111R91) (for components see list of parts under details of "lighting switch unit")

1шт.

26

62801DC

SWITCH

SWITCH, battery ignition (for components see list of parts under details of "switch unit")

1шт.

27

355794R91

SPARE PART MOTOR, cranking (Delco-Remy 1107093) (for components see list of parts under details of "cranking motor")

1шт.

27

104221A2GV

STARTER MOTOR

Value, 6V, 10MT Inertia

1шт.

27

104221A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT intertia

1шт.

27

104221A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT inertia

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT, hex-hd., 1/2-13 NC x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

NSS

NOT SOLD SEPARAT

CABLE, regulator "L" terminal to ignition switch (order 354243R92)

1шт.

29

NSS

NOT SOLD SEPARAT

CABLE, regulator "BAT" terminal to charge indicator (order 354243R92)

1шт.

30

NSS

NOT SOLD SEPARAT

CABLE, charge indicator to starting switch (order 358109R92)

1шт.

31

NSS

NOT SOLD SEPARAT

CABLE, ignition switch to coil (order 358109R92)

1шт.

32

NSS

NOT SOLD SEPARAT

CABLE, fuse housing to lighting switch (used with 354232R91)

1шт.

33

NSS

NOT SOLD SEPARAT

CABLE, fuse houing to ignition switch (used with 354232R91)

1шт.

34

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, (on rear frame cover L.H., bolt)

1шт.

35

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, (on top or rear frame cover)

1шт.

103026

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

36

NSS

NOT SOLD SEPARAT

CABLE, lighting switch to headlight (order 358916R92)

1шт.

37

NSS

NOT SOLD SEPARAT

CABLE, headlight to ground (order 358916R92)

1шт.

38

NSS

NOT SOLD SEPARAT

CABLE, lighting switch to rear light (363486R91)

1шт.

39

NSS

NOT SOLD SEPARAT

CABLE, rear light to ground (order 363486R91)

1шт.

40

363487R1

CLIP

CLIP, (on underside of rear frame cover)

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

41

363478R1

SPARE PART CLIP, (on battery box rear hold-down bolt R.H., side)

1шт.

42

63323D

SPARE PART GROMMET, in instrument panel

1шт.

106653

FUSE

FUSE, type AGC 20 amps.

1шт.

356445R91

KNOB

KNOB, fuse holder

1шт.

29332D

LOOM, switch to rear light cable

1шт.

27618D

RING, clamp, switch to rear light cable loom

2шт.

Выбрано товаров: 64
