Запчасти Case IH 240 (110) - ELECTRICAL SYSTEM, BATTERY HOLDER, FARMALL AND INTERNATIONAL 240 TRACTORS (06) - ELECTRICAL SYSTEMS

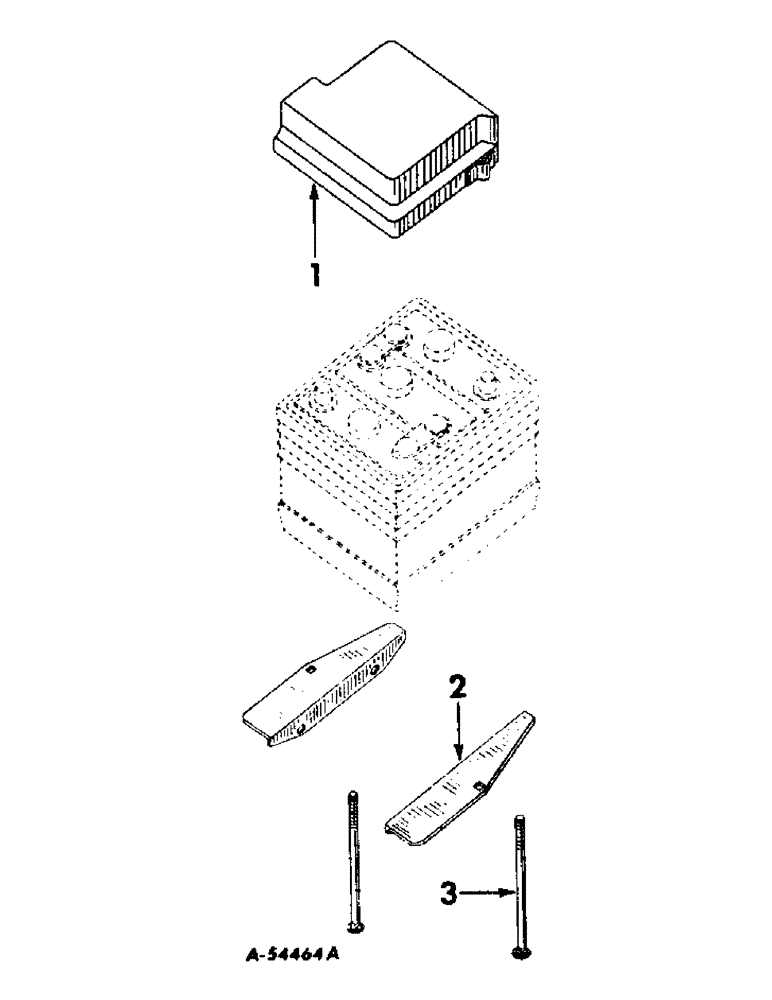

Схема запчастей Case IH 240 - (110) - ELECTRICAL SYSTEM, BATTERY HOLDER, FARMALL AND INTERNATIONAL 240 TRACTORS (06) - ELECTRICAL SYSTEMS
3
1
2

Артикул

Название

Примечание

Количество

1

370735R11

COVER

battery hold-down

1шт.

2

370736R1

BRACKET, battery support

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

3

371737R1

BOLT, battery hold-down (for tractors with fast or industrial hitch and cable type follow-up system)

1шт.

3

374935R1

BOLT, battery hold-down (for tractors with fast or industrial hitch and linkage type follow-up system)

1шт.

3

911248R1

BOLT, battery hold-down

2шт.

129-409

WING NUT,1/4"-20

NUT, WING, , Type A 1/4"-20

2шт.

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x 16 ga

2шт.

Выбрано товаров: 8
