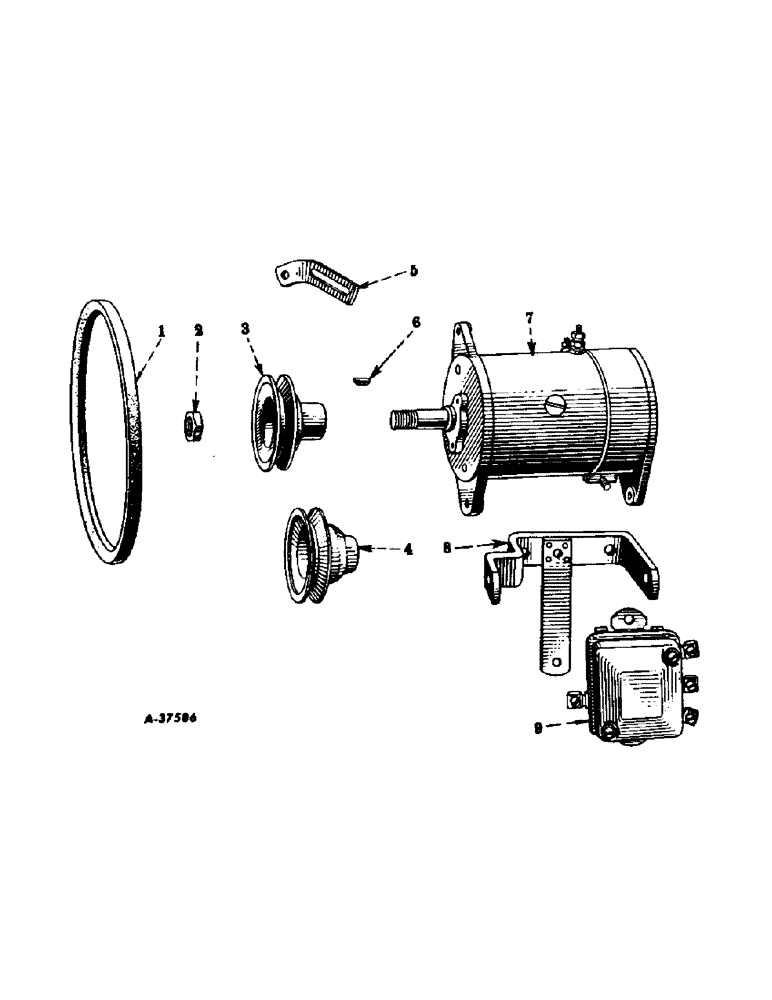

Запчасти Case IH 230 (080) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

52318DA

V-BELT,0.55" W

Generator

1шт.

2

NSS

NOT SOLD SEPARAT

NUT, armature shaft (Delco-Remy 1914308) (used with generator 354237R91)

1шт.

2

NSS

NOT SOLD SEPARAT

NUT, armature shaft (Delco-Remy 806915) (used with generator 362657R91)

1шт.

3

356744R1

PULLEY

PULLEY, generator (used with generator 354237R91) (Farmall 200)

1шт.

4

363366R1

PULLEY

PULLEY, generator (used with generator 362657R91)

1шт.

5

60714DA

SUPPORT

BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

WASHER, plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

6

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

7

354237R91

SPARE PART GENERATOR, assembly, (6 volt) (has long (1-3/4" shaft) (Farmall 200) (for components see list of parts under details of "generator")

1шт.

7

362657R91

SPARE PART GENERATOR, assembly (6 volt) (has short (1-1/4" shaft) (Farmall 200 and 230) (for components see list of parts under details of "generator")

1шт.

7

103820A1R

REMAN-GENERATOR

Generator

1шт.

7

103820A1C

CORE-GENERATOR

Return Part Number

1шт.

7

103821A1R

REMAN-GENERATOR

Generator

1шт.

7

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

7

87497945R

REMAN-ALTERNATOR

Kit to convert reman generator 103821R to an alternator. Kit includes: instruction sheet, hardware kit, 12 v. resistor ballast, wire harness, mounting brkt., tension brkt., reman alternator 12 volt 63 amp w/pulley & regulator.

1шт.

7

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

7

104019A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 20 ampere

1шт.

7

104019A1C

CORE-GENERATOR

Return Part Number, Generator, 12 volt 20 ampere

1шт.

7

104449A1R

REMAN-GENERATOR

Remanufactured Generator, 6 volt 35 ampere

1шт.

7

104449A1C

CORE-GENERATOR

Return Part Number, Generator, 6 volt 35 ampere

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

354238R94

SPARE PART BRACKET, generator

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

360898R91

REGULATOR

REGULATOR, voltage assembly (6 volt) (for components see list of parts under details of "voltage regulator")

1шт.

179788

SHEET

SCREW, cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
