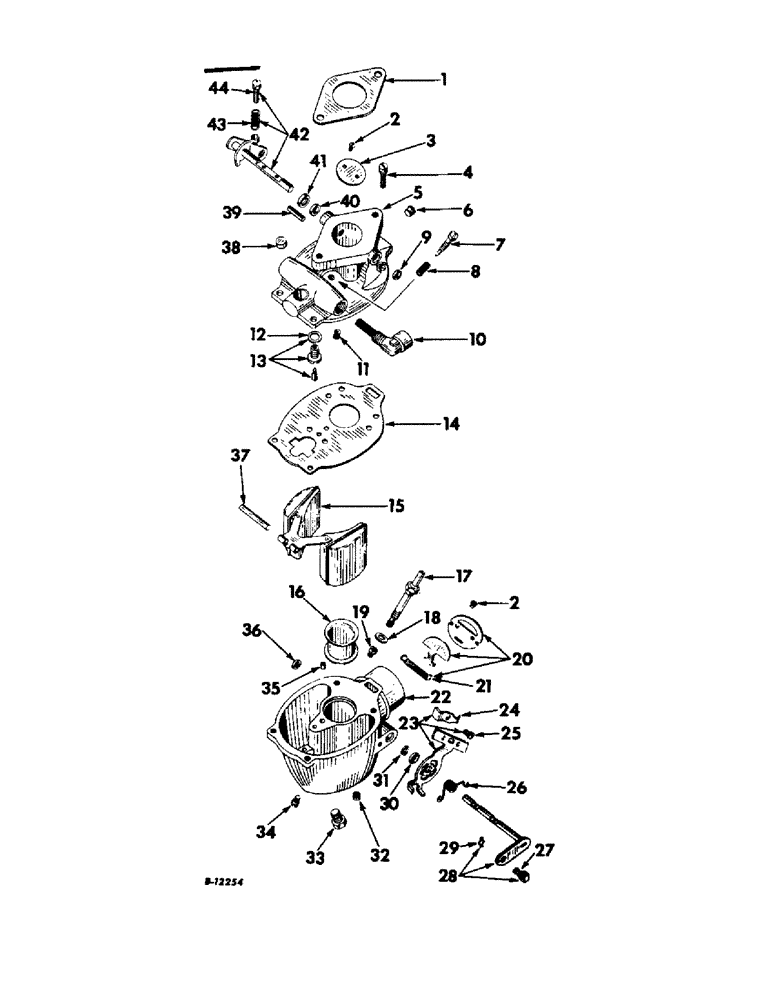

Запчасти Case IH 230 (056) - ENGINE, CARBURETOR, MARVEL-SCHEBLER MODEL TSK-744, GASOLINE C-123 65001 UP (01) - ENGINE

372984R91

CARBURETOR, assembly (optional with 367822R91)

1шт.

1

24520D

GASKET

carburetor

1шт.

Not part of carburetor assembly.

1шт.

2

352701R91

SCREW

choke and throttle plate

4шт.

3

373389R1

VALVE

PLATE, throttle

1шт.

4

352700R91

SCREW, throttle, Serial Range: body-bowl

4шт.

5

373355R91

BODY, throttle, assembly (composed of (1) body (NSS), (1) plug 373400R1, (1) cup 69930D, (1) plug 373401R1, (1) packing 373390R1, (1) retainer 69931D, (1) pin 69932D, (2) screw 352701R91, (1) plate 373389R1, (1) shaft 373388R91)

1шт.

425-115

NUT,5/16"-24, G5

hex. 5/16-24NF

2шт.

Not part of carburetor assembly.

1шт.

50705D

STUD

carburetor (illustrated with manifold)

2шт.

Not part of carburetor assembly.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not part of carburetor assembly.

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

69923D

SCREW

idle adjusting

1шт.

8

69954D

SPRING

idle adjusting screw

1шт.

9

69930D

CUP

throttle shaft

1шт.

10

69938D

ELBOW

AND SCREEN, gas inlet, assembly

1шт.

11

69929D

JET, idling

1шт.

12

69950D

GASKET

float valve seat

1шт.

13

69956D

HYDRAULIC VALVE

VALVE, float, assembly

1шт.

14

69952D

GASKET

throttle, Serial Range: body-bowl

1шт.

15

69919D

FLOAT

assembly

1шт.

16

69958D

VENTURI (11/16")

1шт.

17

373376R1

NOZZLE, main

1шт.

18

373361R1

GASKET

main nozzle

1шт.

19

373380R1

JET, power

1шт.

20

373370R91

VALVE

PLATE, choke, assembly

1шт.

21

373371R1

SPRING

choke plate

1шт.

22

373363R91

BOWL, fuel, assembly (composed of (1) bowl (NSS), (1) vent 373384R1, (1) cup 373403R1, (1) strainer 373387R1, (1) plug 373404R1

1шт.

23

373372R91

BRACKET

choke valve, assembly

1шт.

453666

SCREW, mach. slt-fil-md. no. 8-32NC x 3/8"

1шт.

24

373373R1

CLIP

choke valve bracket

1шт.

25

19548R91

SCREW, choke valve bracket clip

1шт.

26

373369R1

SPRING

choke return

1шт.

27

373405R1

PIVOT

SWIVEL, choke shaft

1шт.

455956

SCREW, mach. slt-hex-hd. no. 8-32NC x 5/16"

1шт.

28

373366R91

LEVER

SHAFT, choke, assembly

1шт.

29

373406R1

SPLIT PIN

SPRING, swivel retainer

1шт.

30

69924D

PACKING

choke shaft

1шт.

31

69931D

RETAINER

choke shaft packing

1шт.

32

373387R1

FILTER

STRAINER,bowl

1шт.

69940D

PLUG

drain

1шт.

34

373404R1

PLUG

power jet drilling

1шт.

35

373384R1

VENT, well

1шт.

36

373403R1

PLUG

CUP, choke shaft

1шт.

37

69920D

SHAFT

AXLE, float

1шт.

38

373401R1

PLUG, welch expansion

1шт.

39

69932D

PIN, throttle stop

1шт.

40

373390R1

PACKING

throttle shaft

1шт.

41

69931D

RETAINER

throttle shaft packing

1шт.

42

373388R91

LEVER

SHAFT, throttle, assembly

1шт.

43

69953D

SPRING

throttle stop screw

1шт.

44

69946D

SCREW, throttle stop

1шт.

373359R91

GASKET

SET, carburetor (consists of (1) gasket 24520D, (1) gasket 69950D, (1) gasket 373361R1, (1) gasket 69952D)

1шт.
