Запчасти Case IH 230 (050) - ENGINE, CARBURETOR, ZENITH MODEL, 68 X 7, FOR GASOLINE ENGINE SERIAL NO. 36001 TO 65000 (01) - ENGINE

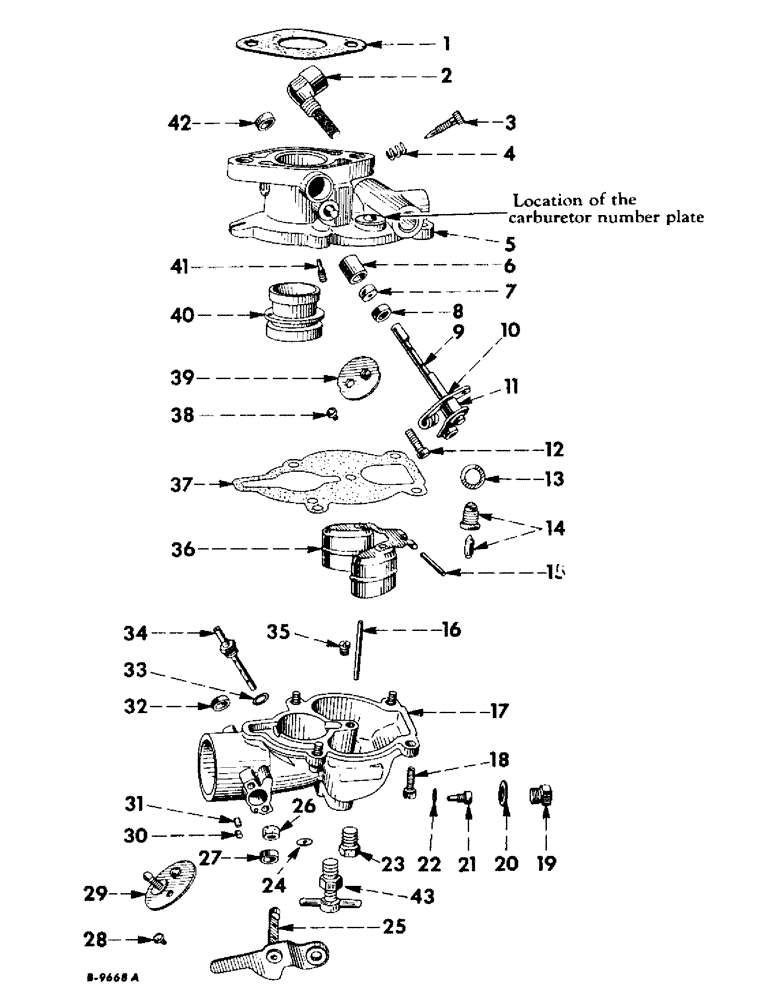

Схема запчастей Case IH 230 - (050) - ENGINE, CARBURETOR, ZENITH MODEL, 68 X 7, FOR GASOLINE ENGINE SERIAL NO. 36001 TO 65000 (01) - ENGINE
2
16
35
8
25
43
34
22
32
7
39
19
41
18
3
28
33
6
42
13
26
21
14
36
17
38
5
24
23
40
12
27
29
1
15
9
31
4
10
20
30
11
37

Артикул

Название

Примечание

Количество

366306R91

CARBURETOR

assembly (gasoline)

1шт.

Refer the the illustration for the location of the carburetor number plate.

1шт.

1

24520D

GASKET

carburetor

1шт.

These parts are not included with the carbruetor assembly.

1шт.

2

53796D

ELBOW

w/strainer

1шт.

3

13873D

NEEDLE

VALVE, needle, idle adjusting

1шт.

4

12472D

SPRING

idle adjusting needle valve

1шт.

5

368348R91

BODY, throttle, assembly (composed of (1) body, (1) bracket (NSS), (1) bushing 368360R1, (1) pin (NSS), (1) plate 357144R1, (1) plug 53797D, (1) retainer 368359R1, (2) screw (NSS), (2) screw 357155R91, (1) seal 368358R1, (1) shaft 62170D, (1)spacer 54062D

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

These parts are not included with the carbruetor assembly.

1шт.

50705D

STUD

carburetor (illustrated with manifold)

2шт.

These parts are not included with the carbruetor assembly.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

These parts are not included with the carbruetor assembly.

1шт.

6

368360R1

BUSHING

throttle shaft

2шт.

7

368358R1

SEAL

throttle shaft

1шт.

8

368359R1

RETAINER

throttle shaft seal

1шт.

9

62170D

SHAFT, throttle, w/lever, 12455D and pin, 135645H

1шт.

10

54062D

WASHER

throttle lever

1шт.

11

135645H

PIN, taper

1шт.

12

12455D

SCREW, throttle stop

1шт.

13

53792D

WASHER

fuel valve

1шт.

14

353241R91

VALVE

fuel

1шт.

15

35514D

AXLE, float

1шт.

16

368361R1

TUBE, idle filter 0.091" ID, 0.11" OD, 1.48" Length

1шт.

17

368349R91

BOWL, fuel assembly (composed of (1) bowl (NSS), (1) filter 274897R1, (1) plug 53797D, (1) retainer 42191D, (1) tube 368361R1, (1) washer 21210D)

1шт.

18

357154R91

SCREW, bowl to body, w/lock washer

4шт.

19

16825D

PLUG

lower (main jet passage)

1шт.

20

12433D

WASHER

fibre, main passage

1шт.

21

93328H

JET, main

1шт.

22

12435D

SEALING WASHER

WASHER, main jet

1шт.

23

54063D

PLUG

drain, fuel bowl (1/8")

1шт.

24

274897R1

FILTER

drip plug

1шт.

25

368356R91

SHAFT

choke valve, w/lever

1шт.

26

42191D

RETAINER

packing, choke shaft

1шт.

27

21210D

WASHER

packing, choke shaft

1шт.

28

357155R91

SCREW, choke valve plate, w/lock washer

2шт.

29

368355R91

SHUTTER

PLATE, choke valve, w/rivet and spring

1шт.

30

357150R1

PIN, friction, choke lever

1шт.

31

357149R1

SPRING

friction, choke lever

1шт.

32

53797D

PLUG

choke shaft hole

1шт.

33

22846D

WASHER, fibre, discharge jet

1шт.

34

368354R91

JET

main discharge

1шт.

35

55536D

JET, well vent

1шт.

36

53783D

FLOAT

1шт.

37

368362R1

GASKET

, Serial Range: bowl-body

1шт.

38

357155R91

SCREW, throttle valve plate, w/lock washer

2шт.

39

357144R1

LARGE PLATE

PLATE, throttle valve

1шт.

40

368351R1

VENTURI

1шт.

41

352604R1

JET

idling

1шт.

42

53797D

PLUG

throttle shaft hole

1шт.

368357R91

GASKET KIT

SET (consists of (1) gasket 368362R1, (1)washer 12433D, (1) washer 12435D, (1) washer 22846D, (1) washer 53792D)

1шт.
