Запчасти Case IH 230 (039) - ENGINE, UNDERSLUNG EXHAUST SYSTEM, FOR TRACTORS EQUIPPED WITH UNDERSLUNG EXHAUST MUFFLER (01) - ENGINE

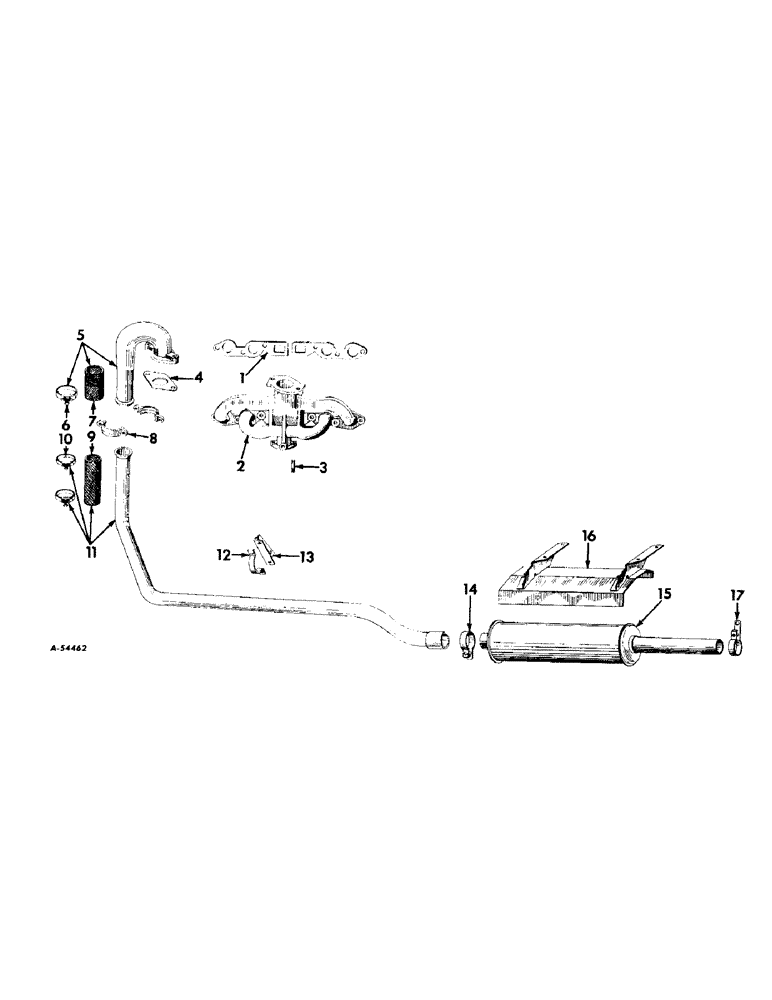

Схема запчастей Case IH 230 - (039) - ENGINE, UNDERSLUNG EXHAUST SYSTEM, FOR TRACTORS EQUIPPED WITH UNDERSLUNG EXHAUST MUFFLER (01) - ENGINE
7
15
14
8
10
12
2
1
13
3
16
9
17
4
11
6
5

Артикул

Название

Примечание

Количество

1

352014R2

GASKET

exhaust and intake manifold

2шт.

2

369645R11

MANIFOLD

exhaust and intake, w/plut 103865 (gasoline)

1шт.

103865

PLUG, pipe, sq-hd., C.I. 1/8" (optional with 103877)

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (optional with 103865)

1шт.

3

50705D

STUD

, Serial Range: carburetor-manifold

2шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

368482R1

GASKET

exhaust pipe elbow

1шт.

5

368484R11

ELBOW

exhaust pipe, assembly

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

594183C1

CLAMP,10.2mm - 16mm

exhaust pipe elbow (replaces 46364H)

1шт.

7

A49863

TAPE

exhaust pipe, elbow (replaces 370581R1)

1шт.

8

362300R1

CLAMP

exhaust pipe elbow

2шт.

120376

NUT,5/16"-18, G5

2шт.

180084

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

SCREW, cap, hex-hd., cd-pltd., 5/16 -18NC x 1-5/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

370639R1

TAPE

exhaust pipe

1шт.

10

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Exhaust pipe tape (Replaces 29979D) #28, 1.31/2.25 Type F Worm

2шт.

11

369836R11

PIPE, exhaust, assembly

1шт.

12

369838R1

CLAMP

exhaust pipe support

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

369837R11

BRACKET, exhaust pipe support

1шт.

14

48889DA

CLAMP

exhaust muffler front support

1шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

360720R91

MUFFLER

exhaust

1шт.

16

369842R11

SHIELD, muffler assembly

1шт.

109084

NUT,1/4"-20, G5

4шт.

157715

SCREW, mach. cr-rec., truss-hd., 1/4-20NC x 1/2"

4шт.

17

369839R1

CLAMP

exhaust muffler rear support

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

61252H

WASHER

plain, 15/32 I.D. x 3/4" O.D. x 11 ga.

1шт.

Выбрано товаров: 39
