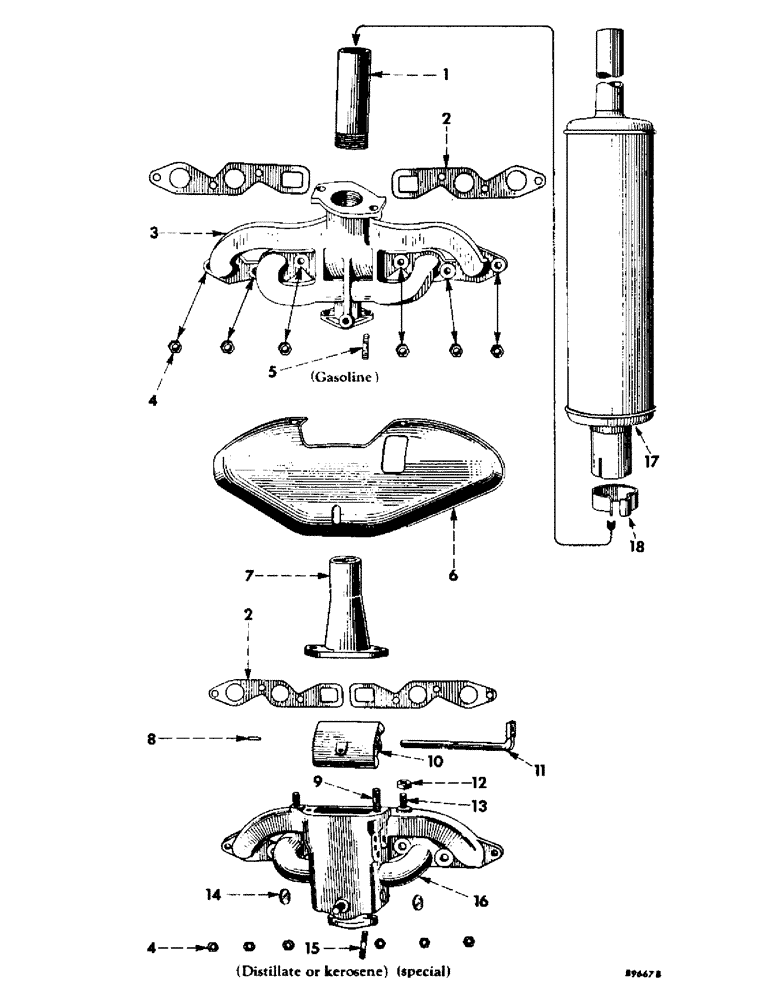

Запчасти Case IH 230 (035) - ENGINE, MANIFOLD AND EXHAUST PIPE, 501 TO 65000 (01) - ENGINE

1

356354R1

PIPE

exhaust (gasoline)

1шт.

2

352014R2

GASKET

exhaust and intake manifold (will work for 48696D)

2шт.

3

251175R21

MANIFOLD

exhaust and intake, w/plug, 103865 (gasoline), C-123, Serial Range: 501-36000

1шт.

3

369645R11

MANIFOLD

exhaust and intake, w/plug, 103865 (gasoline), C-123, Serial Range: 36001-65000

1шт.

103865

PLUG, pipe, C.I. 1/8" (optional with103877)

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (optional with 103865)

1шт.

251174R1

STUD

cylinder head to manifold (illustrate with cylinder head)

6шт.

4

251176R1

NUT

manifold to cylinder head stud

6шт.

5

50705D

STUD

carburetor mounting (gasoline), C-123, Serial Range: 36001-65000

2шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

48892DB

SHIELD, heat manifold (distillate or kerosene)

1шт.

7

356369R1

PIPE

exhaust (distillate or kerosene)

1шт.

8

38-31014

PIN,5/32" x 7/8", Coiled

- grooved, 5/32" x 7/8", Type A (distillate or kerosene)

1шт.

9

46202D

STUD

exhaust pipe (distillate or kerosene)

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

10

6866DA

VALVE, heat, manifold (distillate or kerosene)

1шт.

11

52521DA

SHAFT, manifold heat valve (distillate or kerosene)

1шт.

102953

SCREW, set, sq-hd., cone-pt., 3/8-16NC x 1-1/2"

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

12

93082H

NUT

manifold heat sheild stud (distillate or kerosene)

3шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

3шт.

13

46102D

STUD, manifold heat shield (distillate or kerosene)

3шт.

14

41-3014

PLUG,Exp, 7/8"

expansion, 7/8" (distillate or kerosene)

2шт.

15

G8603

STUD, carburetor (distillate or kerosene)

2шт.

16

351655R31

MANIFOLD, exhaust and intake, assembly (distillate or kerosene) (composed of (1) manifold 351655R3 (NSS), (2) pin (used with muffler attachment) 107317, (1) plug 103865, (2) plug 172540, (2) stud G8603, (3) stud 46102D, (2) stud 46202D)

1шт.

16

354137R93

MANIFOLD, exhaust and intake, w/heat valve assembly (distillate or kerosene) (composed of (1) manifold 351655R31, (1) nut 114503, (1) pin 142494, (1) screw 102953, (1) shaft 52521DA, (1) valve 6866DA)

1шт.

103865

PLUG, pipe, sq-hd., C.I., 1/8" (optional with 103877)

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (optional with 103865)

1шт.

251174R1

STUD

cylinder head to manifold (illustrate with cylinder head)

6шт.

17

360720R91

MUFFLER

exhaust

1шт.

18

48889DA

CLAMP

exhaust muffler

1шт.

93082H

NUT

exhaust muffler clamp

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

48831DB

MUFFLER

PARTS ACCESSORY, exhaust muffler (consists of ref. nos. 17, 18, and attaching hardware)

1шт.
