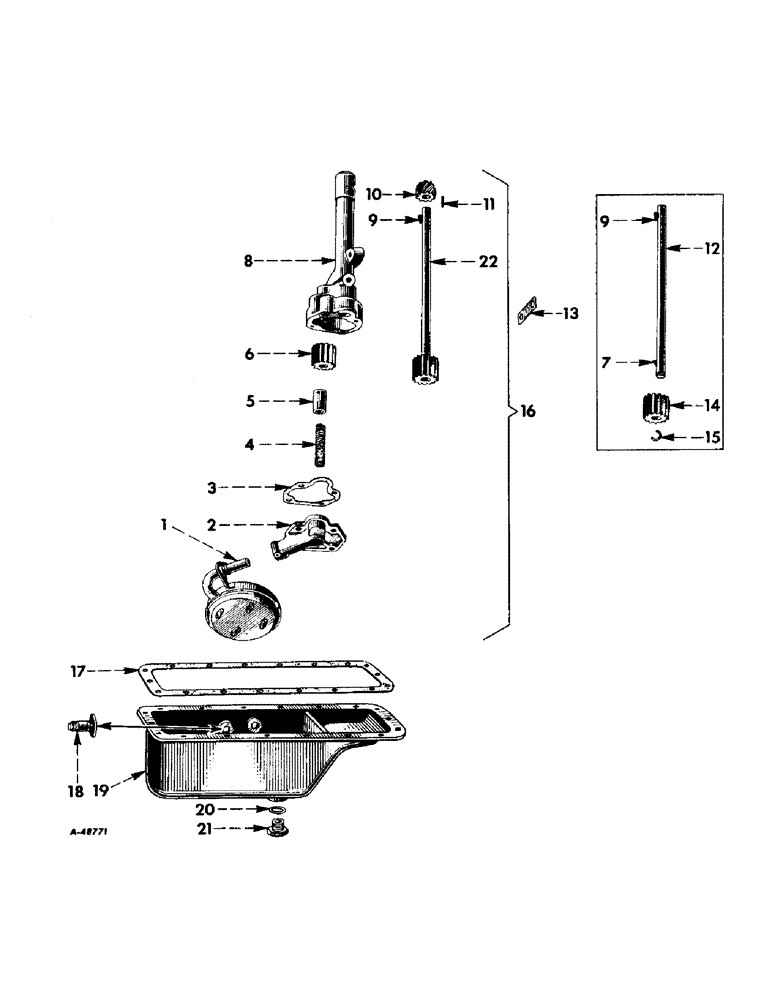

Запчасти Case IH 230 (033) - ENGINE, CRANKCASE OIL PAN AND LUBRICATING OIL PUMP (01) - ENGINE

1

56108D

FILTER SCREEN

SCREEN, lubricating oil pump, C-123, Serial Range: 501-51938

1шт.

1

368979R91

SCREEN

lubricating oil pump (not illustrated), C-123, 51939 up

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

2

6098DA

OIL RESERVOIR

COVER, lubricating oil pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

43415D

GASKET

lubricating oil pump body cover

1шт.

4

43414DA

VALVE SPRING

SPRING, pressure lubricating oil pump

1шт.

5

357648R1

LOCK VALVE

VALVE, pressure, lubricating oil pump

1шт.

6

35631H

GEAR

idler, lubricating oil pump

1шт.

7

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, woodruff no. 5 (used with gear ref. no. 14)

1шт.

8

6096DX

BODY

lubricating oil pump, w/idler shaft and plug, 103865

1шт.

103865

PLUG, pipe, sq-hd., CL, 1/8" (optional with 103877)

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (optional with 103865)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

2шт.

8

352036R92

PUMP

BODY, lubricating oil pump, assembly (composed of (1) body 6096DX, (1) gear and shaft 365377R91, (1) gear 352057R1, (1) key 103905, (1) pin 112011

1шт.

9

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, woodruff, no. 5

1шт.

10

352057R1

GEAR

spiral, lubricating oil pump

1шт.

11

112011

PIN,1/8" x 7/8"

lubricating oil pump spiral gear (will work for G1123)

1шт.

12

43412DR

SHAFT, drive, lubricating oil pump body (no longer serviced separately-order gear and shaft-ref. 22)

1шт.

13

46629D

LOCK

lubricating oil pump screw

1шт.

14

358615R1

GEAR

lubricating oil pump body (no longer serviced separately - order gear and shaft-ref. 22)

1шт.

15

27999H

RING

RETAINER, lubricating oil pump body gear (used with gear-ref. no. 14)

1шт.

16

352085R94

PUMP

lubricating oil, assembly (composed of (1) body 352036R92, (1) cover 6098DA, (AR) gasket 43415D, (1) gear 35631H, (1) pin 103386, (1) screen 368979R91, (4) screw 179816, (1) spring 43414DA, (1) valve 357648R1, (4) washer 103320)

1шт.

17

43458DD

GASKET

oil pan

1шт.

18

1998TA

VALVE

oil indicator (for distillate or kerosene)

1шт.

19

355735R92

PAN, crankcase, assembly, C-123, 501 to 65000 (composed of (1) (1) gasket 3405H, (1) plug 359875R1, (1) pan 43457DCX (NSS), (2) plug 103867)

1шт.

19

372145R91

PAN

crankcase, assembly (consists of gasket, 3405H, plug, 103867 and plug, 359875R1, C-123, 65000 up

1шт.

103867

PLUG

valve opening, oil gage (3/8" C.I. pipe plug) (optional with 103879)

2шт.

368486R91

SCREW,Hex, 5/16" - 18 x 3/4", W/ LW

machine hex-hd., 5/16-18NC x 3/4", w/int-tooth lockwasher

14шт.

368487R91

SCREW, machine hex-hd., 5/16-18NC x 1-1/2", w/int-tooth lockwasher

4шт.

20

3405H

GASKET

crankcase oil pan drain plug

1шт.

21

359875R1

PLUG

drain, crankcase oil pan (optional with 41300HA)

1шт.

21

41300HA

PLUG

drain, crankcase oil pan (optional with 359875R1)

1шт.

22

365377R91

SHAFT

GEAR AND SHAFT, oil pump body (will work for gear, 358615R1 and shaft, 43412DR)

1шт.
