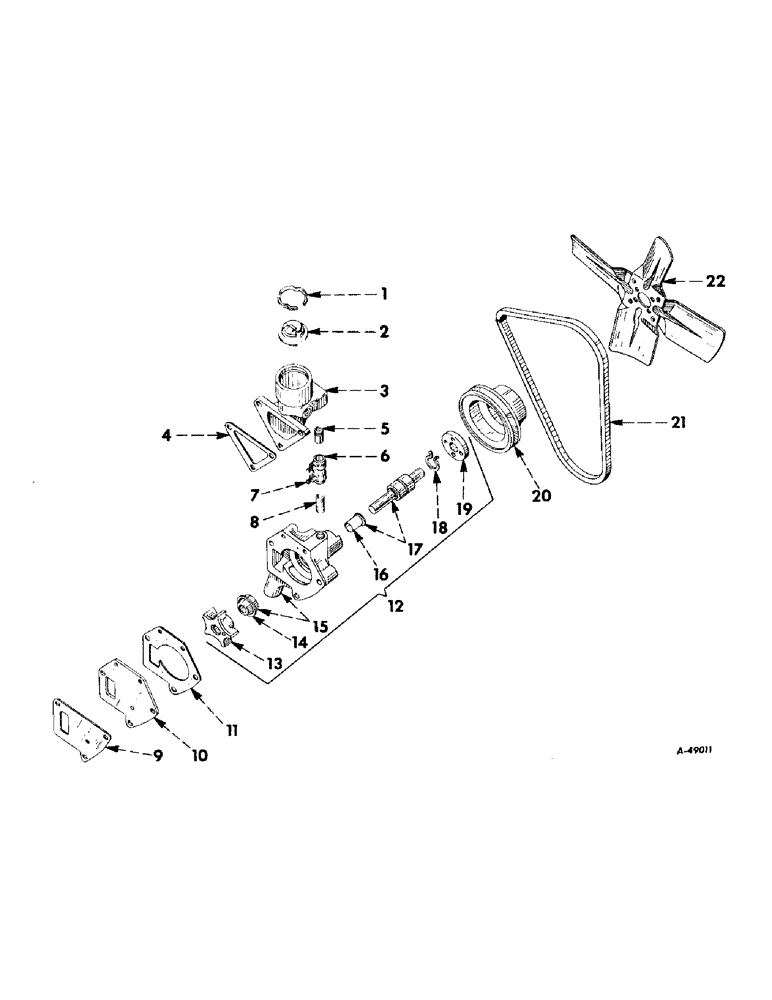

Запчасти Case IH 230 (031) - ENGINE, FAN, THERMOSTAT AND WATER PUMP, C-123, 65001 UP (01) - ENGINE

1

257441R2

SEGMENT

RING, thermostat retainer

1шт.

2

369320R91

THERMOSTAT

(170 deg.) (optional with 369321R91 and 369322R91)

1шт.

2

369321R91

THERMOSTAT

(170 deg.) (optional with 369320R91 and369322R91)

1шт.

2

369322R91

THERMOSTAT

(170 deg.) (optional with 369320R91 and 369321R91)

1шт.

2

372368R91

THERMOSTAT (150 deg.) (for use with low boiling anti-freeze)

1шт.

3

367679R1

ELBOW

water outlet

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

43294D

GASKET

water outlet elbow

1шт.

5

367680R1

FITTING

PIPE, upper by-pass

1шт.

6

367681R1

HOSE

by-pass pipe

1шт.

7

375061R91

CLAMP

by-pass pipe hose (will work for 261498R91)

2шт.

8

368556R1

FITTING

PIPE, lower by-pass

1шт.

9

368560R1

GASKET

water pump plate

1шт.

10

368559R1

SUPPORT

PLATE, water pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

367687R1

GASKET

water pump body

1шт.

12

367683R91

PUMP

ASSEMBLY, water

1шт.

375793R92R

REMAN-WATER PUMP

200 (1/54-12/56), 230 (1/56-12/58), 240 (1/58-12/61), Reman For New P/N 367683R91

1шт.

375793R92C

CORE-WATER PUMP

Return Number

1шт.

13

367689R1

IMPELLER

water pump

1шт.

14

73296R92

SEAL

ASSEMBLY, water pump

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, cap, hex-hd., 3/8-16 x 1-3/8"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

186278

BOLT

SCREW, cap, hex-hd., 3/8-16 x 2-5/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

16

71351R1

SLINGER

water pump

1шт.

17

ST-644

SHAFT AND BEARING ASSEMBLY, water pump, w/slinger

1шт.

18

102069H

RING

front snap

1шт.

19

368501R1

HUB

pulley

1шт.

20

367688R1

PULLEY

water pump

1шт.

21

367697R1

V-BELT,0.38" W x 42.00" L

Fan and generator 0.38" W x 42.00" L

1шт.

22

367682R91

FAN

BLADE ASSEMBLY, fan

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

367708R91

PUMP

PACKAGE, water pump service (consists of (1) gasket 367687R1, (1) gasket 368560R1, (1) hub 368501R1, (1) impeller 367689R1, (1) ring 102069H, (1) seal 73296R92, (1) shaft ST644)

1шт.

A173712

FAN

6 (blade)

1шт.
