Запчасти Case IH 230 (028) - ENGINE, WATER PUMP, C-123, 501 TO 65000 (01) - ENGINE

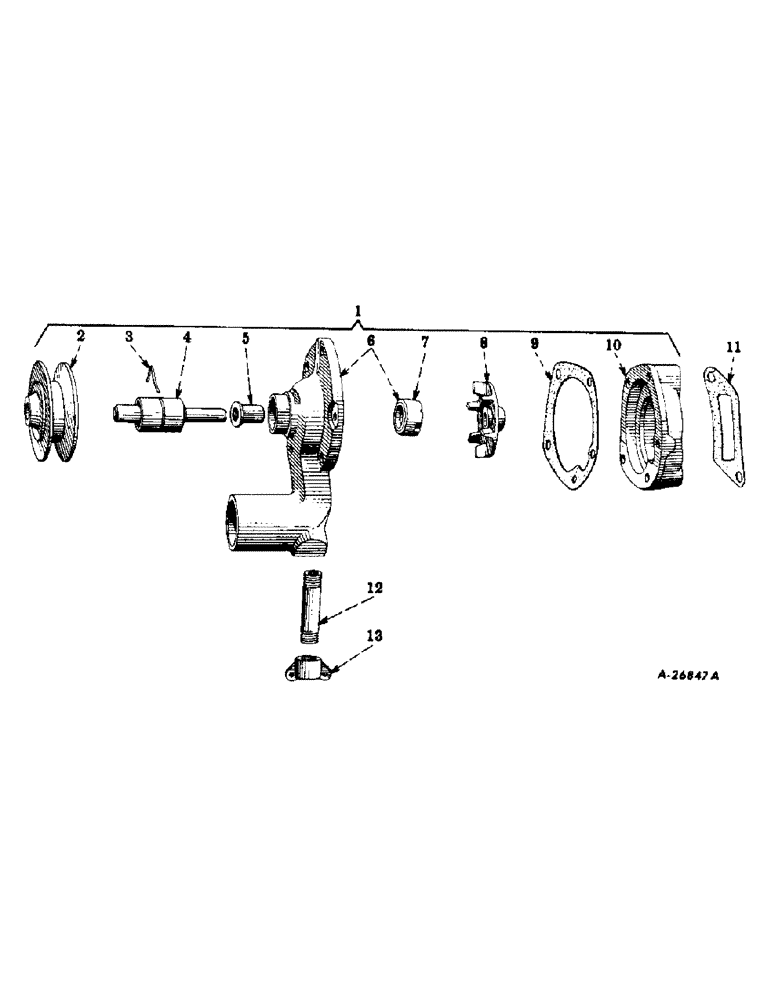

Схема запчастей Case IH 230 - (028) - ENGINE, WATER PUMP, C-123, 501 TO 65000 (01) - ENGINE
2
9
5
11
7
1
8
13
3
10
6
22
4

Артикул

Название

Примечание

Количество

1

355760R93

PUMP

water, assembly

1шт.

1

355760R93GV

WATER PUMP

Value, Water Assy.

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

9102D

PULLEY

water pump (will work for 355765R1)

1шт.

3

355768R1

RETAINER

bearing

1шт.

4

362101R91

SHAFT

w/bearings and flinger, 362038R1

1шт.

5

362038R1

SLINGER

FLINGER

1шт.

6

355763R92

BODY, front, w/seal, 355762R91

1шт.

3066422R1

PLUG

pipe, sq-socket, stl., 3/8"

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

355762R91

SEAL

assembly

1шт.

8

355766R1

IMPELLER

1шт.

9

355769R1

GASKET

body

1шт.

10

355764R1

BODY, rear

1шт.

11

46871D

GASKET

1шт.

12

191296

PIPE,Nipple, 3/8" NPT x 4 1/2"

NIPPLE, pipe 3/8 x 4-1/2"

1шт.

13

13047DA

PLUG

CAP, radiator drain pipe

1шт.

366146R91

PUMP

PACKAGE, service, water pump (consists of (1) gasket 46871D, (1) retainer 355768R1, (1) gasket 355769R1, (1) seal 355762R91, (1) impeller 355766R1, (1) shaft 362101R91)

1шт.

Выбрано товаров: 22
