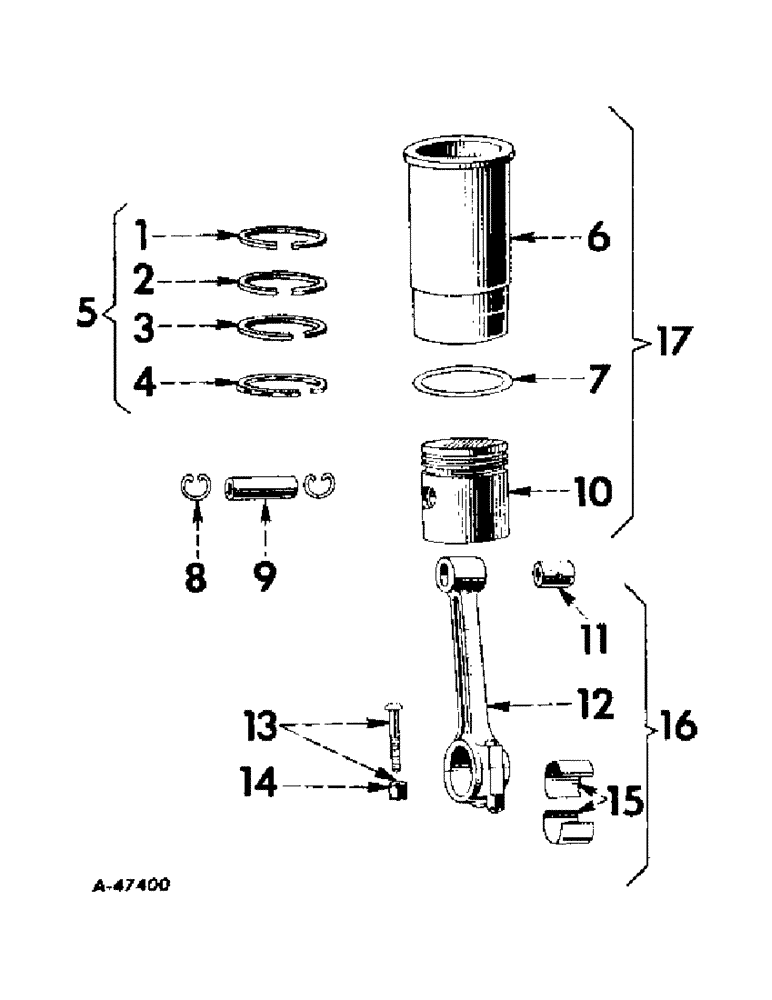

Запчасти Case IH 230 (023) - ENGINE, CONNECTING RODS, PISTONS, AND CYLINDER SLEEVES (01) - ENGINE

1

366291R1

RING

compression, piston(top or first groove) (chrome) (gasoline or distillate)

4шт.

Used with three ring 3-1/8" dia. aluminum pistons, 362867R1, 363375R1, 363377R1, 366669R1, 374339R1 and 374495R1

1шт.

1

366642R1

RING, compression, piston (top or first groove) (chrome) (distillate or kerosene)

4шт.

Used with four ring 3-1/8" dia. gray iron pistons,356302R2, 356618R2, 356619R2, 356899r2, 356916R2, 356917R2.

1шт.

1

370154R1

RING

compression, piston (top or first groove) (chrome) (gasoline or distillate)

4шт.

Used with three ring aluminum pistons (3-3/16" dia) 370147R1 and 370149R, 374294R1 and 374451R1

1шт.

2

354884R1

RING, compression, piston (second groove) (gasoline, distillate and kerosene, C-123, Serial Range: 501-36000

4шт.

Used with three ring 3-1/8" dia. aluminum pistons, 362867R1, 363375R1, 363377R1, 366669R1, 374339R1 and 374495R1

1шт.

Used with four ring 3-1/8" dia. gray iron pistons,356302R2, 356618R2, 356619R2, 356899r2, 356916R2, 356917R2.

1шт.

2

366292R1

RING

compression, piston (second groove) (gasoline, distillate and kerosene), C-123, 36001 up

4шт.

Used with three ring 3-1/8" dia. aluminum pistons, 362867R1, 363375R1, 363377R1, 366669R1, 374339R1 and 374495R1

1шт.

Used with four ring 3-1/8" dia. gray iron pistons,356302R2, 356618R2, 356619R2, 356899r2, 356916R2, 356917R2.

1шт.

2

370155R1

RING

compression, piston (second groove) (gasoline or distillate

4шт.

Used with three ring aluminum pistons (3-3/16" dia) 370147R1 and 370149R, 374294R1 and 374451R1

1шт.

3

354884R1

RING, compression, piston (third groove) (distillate or kerosene), C-123, Serial Range: 501-36000

4шт.

Used with four ring 3-1/8" dia. gray iron pistons,356302R2, 356618R2, 356619R2, 356899r2, 356916R2, 356917R2.

1шт.

3

366292R1

RING

compression, piston (third groove) (distillate or kerosene, C-123, 36001 up

4шт.

Used with four ring 3-1/8" dia. gray iron pistons,356302R2, 356618R2, 356619R2, 356899r2, 356916R2, 356917R2.

1шт.

4

366636R91

RING

oil piston (third or bottom groove) (chrome) (gasoline or distillate)

4шт.

Used with three ring 3-1/8" dia. aluminum pistons, 362867R1, 363375R1, 363377R1, 366669R1, 374339R1 and 374495R1

1шт.

4

370156R91

RING, oil piston (third or bottom groove) (chrome) (gasoline or distillate)

4шт.

Used with three ring aluminum pistons (3-3/16" dia) 370147R1 and 370149R, 374294R1 and 374451R1

1шт.

4

366636R91

RING

oil piston (fourth or bottom groove) (chrome) (distillate)

4шт.

Used with four ring 3-1/8" dia. gray iron pistons,356302R2, 356618R2, 356619R2, 356899r2, 356916R2, 356917R2.

1шт.

4

366293R91

RING, oil piston (fourth or bottom groove) (chrome) (kerosene)

4шт.

Used with four ring 3-1/8" dia. gray iron pistons,356302R2, 356618R2, 356619R2, 356899r2, 356916R2, 356917R2.

1шт.

5

364788R91

RING

SET, piston (perfect circle 2 in 1 chrome) (3-1/8" dia. pistons) (composed of eight compression rings and four oil regulating rings) (gasoline) (distillate), C-123, 36001 up

1шт.

5

354893R92

PISTON RING SET

RING SET, piston (perfect circle) (distillate) (composed of twelve compression rings and four regulating rings) (optional with 354894R92 and 357679R91) (3-1/8" dia. pistons), C-123, Serial Range: 501-36000

1шт.

5

354894R92

PISTON RING SET

RING SET, piston (Wilkening (distillate) (composed of twelve compression rings and four oil regulating rings) (optional with 354893R92 and 357679R91) (3-1/8" dia. pistons), C-123, Serial Range: 501-36000

1шт.

5

357679R91

SET OF RINGS

RING SET, piston (perfect cicle) (kerosene) (composed of twelve compression rings and four oil regulating rings) (optional with 357080R91)

1шт.

5

357076R91

RING SET, piston (perfect circle) (kerosene) (composed of twelve compression rings and four oil regulating rings) (optional with 357080R91)

1шт.

5

357080R91

RING SET, piston (Wilkening) (kerosene) (composed of twelve compression rings and four oil regulating rings) (optional with 357076R91)

1шт.

5

370422R91

RING

SET, piston (perfect circle 2 in 1 chrome) (3-3/16" dia pistons) (composed of twelve compression rings and four oil regulating rings) (gasoline or distillate), C-123, Serial Range: 501-36000

1шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder (order sleeve, w/piston and rings, assembly for proper fuel and altitude)

4шт.

7

354881R1

SEAL ASSY.

RING, packing, cylinder sleeve, C-123, Serial Range: 501-36000

4шт.

7

24434D

RING,6.04mm Thk x 134.94mm ID

RING, packing, cylinder sleeve, C-123, 36001 up

4шт.

8

359321R1

RING, SNAP

SPRING, piston pin retainer

8шт.

9

24414DB

AXLE PIN

PIN, piston (standard) (will work for 365043R1)

4шт.

9

53159D

PIN

piston (.005" oversize) (will work for 365061R1)

4шт.

10

NSS

NOT SOLD SEPARAT

PISTON, (order sleeve, piston, rings, assembly for proper fuel and altitude)

4шт.

11

64508D

BUSHING,23.82mm ID x 25.22mm OD x 30.96mm L

BUSHING, piston pin

4шт.

12

30926DFXA

ROD

connecting, w/two bolts, 363465R11, bushing, 64508D and cap

4шт.

13

363465R11

BOLT,3/8" - 24 x 2 5/16"

connecting rod, w/nut, 363466R1 (will work for 24412DX)

8шт.

14

24413D

NUT, connecting rod bolt (without identifying notches)

8шт.

14

363466R1

NUT

connecting rod bolt (with identifying notches)

8шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

8шт.

15

356304R11

BEARING

connecting rod (2 halves)

4шт.

15

356305R11

CRANKSHAFT BEARING

connecting rod (2 halves) (.030" undersize)

4шт.

15

356306R11

CRANKSHAFT BEARING

BEARING, connecting rod (2 halves) (.002" undersize)

4шт.

15

360196R11

BEARING, connecting rod (2 halves) (.003" undersize)

4шт.

15

356307R11

BEARING, connecting rod (2 halves) (.032 undersize)

4шт.

15

367876R91

BEARING SET, connecting rod (standard) (consists of four bearings, 356304R11)

1шт.

15

372115R91

KIT

BEARING SET, connecting rod (.030" undersize) (consists of four bearings, 356305R11)

1шт.

16

30926DFYA

ROD

connecting, 30926DFYA, w/bearing, 356304R11

4шт.

17

370157R91

SLEEVE ASSY

SLEEVE SET, crankcase (3-3/16" dia. piston) (consists of four sleeves, w/pistons and rings, 370159R91) (gasoline-standard altitude) (order package, 374259R91), (will work for 362865R92 and 362866R92), C-123, Serial Range: 501-36000

1шт.

It is recommended that tri-metal main bearings be used in conjunction w/foregoing piston and sleeve sets.

1шт.

17

370159R91

SLEEVE ASSY

SLEEVE, cylinder, w/piston and rings assembly (3-3/16" dia. pistons) (gasoline-standard altitude), (order package, 374259R91), C-123, 501 to 36000 (composed of (1) pin 24414DB, (1) ring 370155R1, (1) piston 370147R1 (NSS), (1) ring 370156R91, (1)

4шт.

For service replacement of "thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

17

374887R91

SLEEVE ASSY

SLEEVE SET, crankcase (part of fire crater increased power package, 374259R91) (3-3/16" dia. pistons) (consists of four sleeves, w/pistons and rings, 374293R91) (gasoline-standard altitude) (note D), C-123, Serial Range: 501-36000

1шт.

17

374293R91

PISTON

SLEEVE, cylinder, w/piston and rings, assembly (fire crater increased power) (3-3/16" dia. piston) (gasoline-standard altitude), C-123, 501 to 36000 (composed of (1) pin 24414DB, (1) ring 3701558R1, (1) piston 374294R1 (NSS), (1) ring 370156R91

1шт.

For service replacement of "thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

17

374888R91

SLEEVE SET, crankcase (part of fire crater increased power package, 374449R91) (3-3/16" dia. pistons) (consists of four sleeves, w/pistons and rings, 374450R91) (gasoline-high altitude) (note D), C-123, Serial Range: 501-36000

1шт.

17

374450R91

PISTON

SLEEVE, cylinder, w/piston and rings, assembly (fire crater increased power) (3-3/16"dia. piston) (gasoline-high altitude), C-123, 5-1 to 36000 (composed of (1) pin 24414DB, (1) ring 370155R1, (1) piston 374451R1 (NSS), (1) ring 370156R91, (1) ri

4шт.

For service replacement of "thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

17

370158R91

SLEEVE SET, crankcase (3-3/16" dia. pistons) (consists of four sleeves, w/piston and rings, 370160R91) (distillate-standard altitude) (will work for 356300R92, 356310R92, 367900R91 and 367901R91) (note D), C-123, Serial Range: 501-36000

1шт.

17

370160R91

SLEEVE, cylinder, w/piston and rings assembly (3-3/16" dia. pistons) (distillate-standard altitude), C-123, 501 to 36000 (composed of (1) pin 24414DB, (1) ring 370155R1, (1) piston 370149R1 (NSS), (1) ring 370156R91, (1) ring 354881R1, (1) sleeve

4шт.

It is recommended that tri-metal main bearings be used in conjunction w/foregoing piston and sleeve sets.

1шт.

17

363368R92

SLEEVE ASSY

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 363371R92) (distillate high altitude) (will work for 356617R92, 356621R92, 363370R91 and 363372R91), C-123, Serial Range: 501-36000

1шт.

17

363371R92

SLEEVE, cylinder, w/piston and rings, assembly (distillate high altitude), C-123, 501 to 36000 (composed of (1) pin 24414DB, (1) ring 366636R91, (1) piston 363375R1 (NSS), (1) ring 366291R1, (1) ring 354881R1, (1) sleeve 356301R1 (NSS), (1) ring 366292R1

1шт.

17

374337R91

SET

SLEEVE SET, crankcase (fire crater increased power) (consists of four sleeves, w/pistons and rings, 374338R91) (gasoline-standard altitude), C-123, 36001 up

1шт.

17

374338R91

SLEEVE

cylinder, w/pistons and rings, assembly (fire crater increased power) (gasoline-standard altitude), C-123, 35001 up (composed of (1) pin 24414DB, (1) ring 366292R1, (1) piston 374339R1 (NSS), (1) ring 366636R91, (1) ring 24434D, (1) sleeve 366205R

4шт.

17

374492R91

PISTON ASSY.

SLEEVE SET, crankcase (fire crater increased power) (consists of four sleeves, w/pistons and rings 374493R91) (gasoline-high altitude), C-123, 36001 up

1шт.

17

374493R91

PISTON

SLEEVE, cylinder, w/pistons and rings assembly (fire crater increased power) (gasoline-high altitude), C-123, 36001 up (composed of (1) pin 24414DB, (1) ring 366292R1, (1) piston 374495R1 (NSS), (1) ring 366636R91, (1) ring 24434D, (1) sleeve 366205R1 (NS

4шт.

17

366653R91

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 366658R91) (distillate - high altitude), C-123, 36001 up

1шт.

17

366658R91

SLEEVE, cylinder, w/piston and rings, assembly (distillate-high altitude), C-123, 36001 up (composed of (1) pin 24414DB, (1) ring 366292R1, (1) piston 363375R1 (NSS), (1) ring 366636R91, (1) ring 24434D, (1) sleeve 366205R1 (NSS), (1) ring 366291R1, (2) s

4шт.

17

36687R91

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 366837R91) (distillate-standard altitude), C-123, 36001 up

1шт.

17

366837R91

SLEEVE, cylinder, w/piston and rings, assembly (distillate- standard altitude), C-123, 36001 up (composed of (1) pin 24414DB, (1) ring 366292R1, (1) piston 366669R1 (NSS), (1) ring 366636R91, (1) ring 24434D, (1) sleeve 366205R1, (1) ring 366291R1, (2) sp

4шт.

17

356904R93

SLEEVE CYLINDER

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 356903R93 (kerosene-standard altitude), C-123, Serial Range: 501-36000

1шт.

17

356903R93

SLEEVE CYLINDER

SLEEVE, cylinder, w/piston and rings, assembly (kerosene-standard altitude), C-123, 501 to 36000 (composed of (1) pin 24414DB, (2) ring 366292R1, (1) piston 356899R2 (NSS), (1) ring 366293R91, (1) ring 354881R1, (1) sleeve 356301R1 (NSS), (1) ring 366642R

4шт.

17

356907R93

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 356914R93 (kerosene-high altitude) (discontinued for service), C-123, Serial Range: 501-36000

1шт.

17

356914R93

SLEEVE, cylinder, w/piston and rings, assembly (kerosene-high altitude), C-123, 501 to 36000 (composed of (1) pin 24414DB, (2) ring 366292R1, (1) piston 356916R2 (NSS), (1) ring 366293R91, (1) ring 354881R1, (1) sleeve 356301R1 (NSS), (1) ring

4шт.

17

366652R91

SLEEVE SET, crankcase (consist of four sleeves, w/pistons and rings, 366651R91) (kerosene-standard altitude), C-123, 36001 up

1шт.

17

366651R91

SLEEVE, cylinder, w/pistons and rings, assembly (kerosene- standard altitude), C-123, 36001 up (composed of (1) pin 24414DB, (1) ring 366293R91 (1) piston 356899R2 (NSS), 1) ring 366642R1, (1) ring 24434D, (1) sleeve 366205R1 (NSS), (2) ring 366292R1, (2)

4шт.

17

366655R91

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 366657R91) (kerosene-high altitude), C-123, 36001 up

1шт.

17

366657R91

SLEEVE, cylinder, w/piston and rings, assembly (kerosene-high altitude), C-123, 36001 up (composed of (1) pin 24414DB, (1) ring 366293R91, (1) piston 356916R2 (NSS), (1) ring 366642R1, (1) ring 24434D, (1) sleeve 366205R1 (NSS), (2) ring 366292R1, (2) spr

4шт.

374259R91

PISTON ASSY.

PACKAGE, fire crater increased power (consists of distributor change-over kit, 374262R91 and sleeve set, 374887R91) (gasoline-standard altitude), C-123, Serial Range: 501-36000

1шт.

374449R91

PACKAGE, fire crater increased power (consists of distributor change-over kit, 374262R91 and sleeve set, 374888R91) (gasoline- high altitude), C-123, Serial Range: 501-36000

1шт.

376636R11

BEARING ASSY

Per Marv Hood, the .010" undersize is part number 376636R11

1шт.
