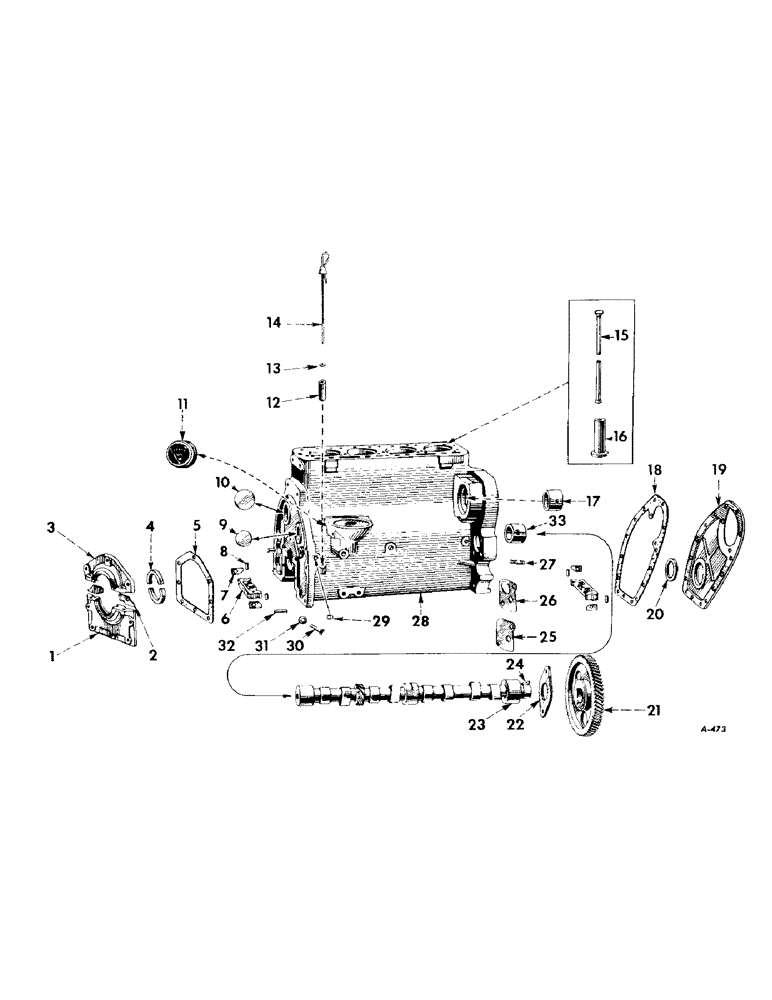

Запчасти Case IH 230 (015) - ENGINE, CRANKCASE, FRONT COVER, CAMSHAFT AND RELATED PARTS, C-123, 501 TO 36000 (01) - ENGINE

1

6102D

RETAINER

crankshaft rear oil seal, lower

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

5шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, cap hex-hd., 1/4-20NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

43447D

GASKET

crankshaft rear oil seal retainer, center

2шт.

3

6101D

RETAINER

crankshaft rear oil seal, upper

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

24425D

OIL SEAL,24.61mm ID x 50.01mm OD x 4.76mm Thk

OIL SEAL, felt, crankshaft, rear

2шт.

5

43448D

GASKET

crankshaft rear oil seal retainer

1шт.

6

6100D

PLATE, crankshaft oil seal retainer, front and rear

2шт.

7

43446D

GASKET

crankshaft oil seal retainer plate

4шт.

8

43445D

PLUG, felt, crankshaft oil seal retainer plate

4шт.

9

172576

PLUG,Exp, 1 5/8"

expansion, 1-5/8"

1шт.

10

63556R1

PLUG

expansion, 2"

1шт.

11

364665R91

INDICATOR

GAGE, oil pressure (will work for 43987DB)

1шт.

106649

ELBOW,45 Degree, 1/8" NPT Street

street, 45 deg., M.I., 1/8" (oil pressure gage)

1шт.

12

361555R1

SLEEVE, oil level gage, C-123, Serial Range: 501-36000

1шт.

12

365936R1

SLEEVE, oil level gage, C-123, 36001 up

1шт.

13

34259H

WASHER, felt, oil level gage

1шт.

14

362611R11

GAUGE

GAGE, bayonet type, engine oil level, w/shield and washer, 34259H

1шт.

15

47386D

ROD

push, valve, (optional with 357548R1 and 360213R91)

8шт.

15

357548R1

ROD

push, valve (optional with 47386D and 360213R91)

8шт.

15

360213R91

ROD

push, valve (optional with 47386D and 357548R1)

8шт.

16

47384D

TAPPET

valve (optional with 356979R1)

8шт.

16

356979R1

TAPPET

valve (optional with 47384D)

8шт.

17

43439DBR

BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L

magneto and governor pinion

1шт.

18

46179DB

GASKET, crankcase front cover

1шт.

19

46122DCX

COVER

crankcase, front, w/oil seal, 49177D and pointer

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

11шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

C-123, 51767 up Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (12 used - C-123, 501 to 51766) 5/16"

11шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , C-123, 51767 up 3/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga. (12 used - C-123, 501 to 51766)

11шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga), C-123, 51767 up 3/8"

1шт.

20

49177D

SEAL

OIL SEAL, crankshaft, front

1шт.

21

6779DB

GEAR

camshaft (66 T.)

1шт.

22

43249D

PLATE

thrust, camshaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

353609R2

PACKAGE

CAMSHAFT

1шт.

24

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

KEY, woodruff, no. 91

1шт.

25

251067R1

COVER

hydraulic pump pad (for tractors not equipped with touch- control C-123, Serial Range: 501-36000

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

350708R1

GASKET

hydraulic pump pad cover (for tractors not equipped with touch-control), C-123, Serial Range: 501-36000

1шт.

27

251066R1

STUD, crankcase front cover, C-123, Serial Range: 501-51766

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. no. 16 ga.

1шт.

28

366294R93

CRANKCASE, assembly (composed of (6) bolt 17091R1, (1) gasket 350708R1, (9) bolt 364789R1, (1) plug 103866, (1) bushing 373102R1, (2) plug 143997, (1) bushing 43439DBR, (1) plug 172576, (2) cap 8073DA (NSS), (1) plug 172592, (1) cap 8074DA (NSS)

1шт.

When crankcase assembly, 366294R93 is furnished for service on engines with serial numbers C-123, 501 to 36000, the following must also be furnished depending of type of fuel and altitude desired.

1шт.

143997

PLUG

pipe, sq-soc., stl., 1/4"

2шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., CI, 1/4" (optional with 103878)

1шт.

103878

PLUG

pipe, sq-hd., stl., 1/4" (optional with 103866)

1шт.

29

365101R1

PLUG

crankcase oil header, 1/8" (will work for 50410DA)

3шт.

30

17091R1

BOLT, hex-hd., self-locking, 1/2-12 NC x 3" (crankshaft bearing cap)

6шт.

31

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt

6шт.

32

15945D

DOWEL, clutch housing

2шт.

33

373102R1

BUSHING

camshaft, front (used only with 366204R3 crankcase (NSS)

1шт.

366653R91

SLEEVE SET, crankcase (distillate-high-altitude)

1шт.

366687R91

SLEEVE SET, crankcase (distillate-standard altitude)

1шт.

374492R91

PISTON ASSY.

SLEEVE SET, crankcase (gasoline-high altitude)

1шт.

374337R91

SET

SLEEVE SET, crankcase (gasoline-standard altitude)

1шт.

366655R91

SLEEVE SET, crankcase (kerosene-high altitude)

1шт.

366652R91

SLEEVE SET, crankcase (kerosene-standard altitude)

1шт.
