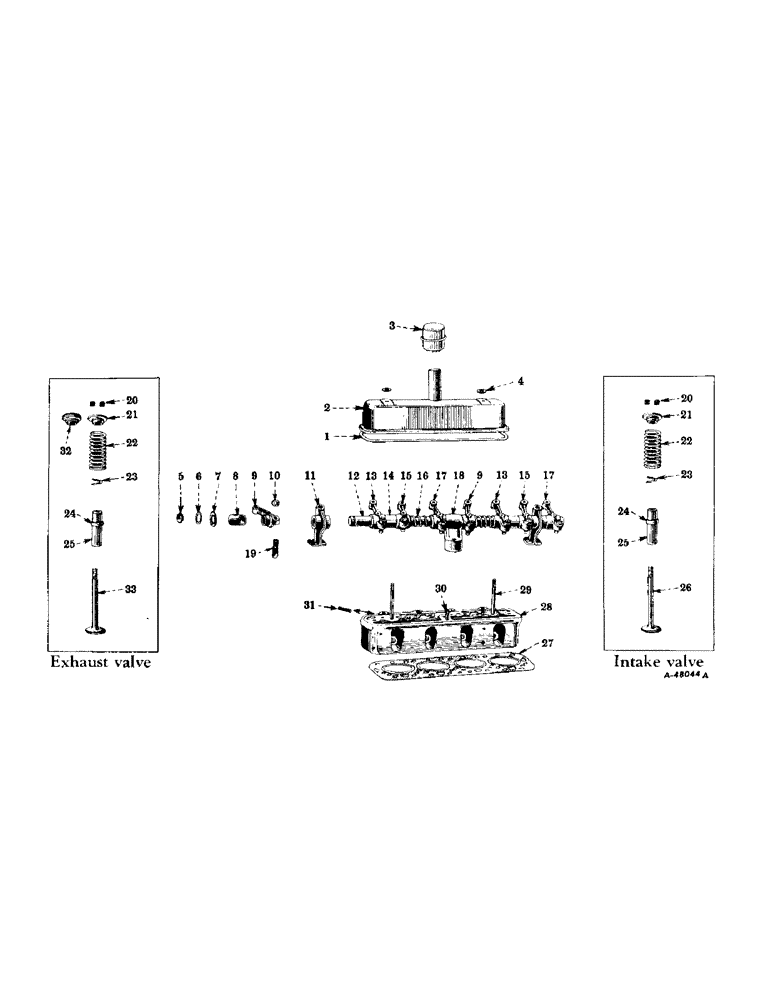

Запчасти Case IH 230 (012) - ENGINE, CYLINDER HEAD, VALVE COVER, VALVES AND VALVE LEVERS (01) - ENGINE

1

43378DB

GASKET

valve cover

1шт.

2

356352R92

COVER, valve, C-123, Serial Range: 501-65000

1шт.

2

367673R91

COVER, valve, C-123, 65001 up

1шт.

3

49049DX

BREATHER

cylinder head (optional with 364901R91), C-123, Serial Range: 501-65000

1шт.

3

364901R91

BREATHER

cylinder head (optional with 49049DX), C-123, Serial Range: 501-65000

1шт.

3

364901R91GV

CAP

Value, Cap, Cylinder Head

1шт.

3

367677R91

BREATHER

cylinder head, C-123, 65001 up

1шт.

4

62866D

WASHER,5/64" Thk x 13/32" ID

valve stud nut (optional with 357374R1)

2шт.

4

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve stud nut (optional with 62866D)

2шт.

5

172528

PLUG,Exp, 9/16"

expansion, 9/16"

2шт.

6

43375D

RING

snap, valve lever shaft

2шт.

7

43374D

SPRING WASHER

spring, valve lever shaft

2шт.

8

24564DA

BUSHING

valve lever (used only with forged type valve levers)

8шт.

9

357289R91

LEVER

intake or exhaust valve, L.H. (welded type) (will work for 43365DBX)

2шт.

9

357291R92

LEVER

intake or exhaust valve, L.H., 357289R91, w/screw, 16067DA and nut, 133093R1 (will work for 43365DBYA)

2шт.

10

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

11

42099DA

BRACKET

valve lever shaft, end

2шт.

12

352521R11

SHAFT

valve lever, w/two plugs, 172528

1шт.

13

357290R91

LEVER

intake or exhaust valve, R.H. (welded type) (will work for 63196DAX and 43364DBX)

2шт.

13

357292R92

LEVER

intake or exhaust valve, R.H. 357290R91, w/screw, 16067DA and nut, 133093R1 (will work for 43364DBYA)

2шт.

14

43373D

SPACER

valve lever (optional with 365766R1)

2шт.

14

365776R1

SPACER, valve lever (optional with 43373D)

2шт.

15

357289R91

LEVER

intake or exhaust valve, L.H. (welded type) (will work for 43363DBX)

2шт.

15

357291R92

LEVER

intake or exhaust valve, L.H. 357289R91, w/screw, 16067DA NUT, 133093R1 (will work for 43363DBYA)

2шт.

16

24541D

SPRING

valve lever

2шт.

17

357290R91

LEVER

intake or exhaust valve, R.H. (welded type) (will work for 43366DBX)

2шт.

17

357292R92

LEVER

intake or exhaust valve, R.H. 357290R91, w/screw, 16067DA and NUT, 133093R1 (will work for 43364DBYA)

2шт.

18

6089DA

BRACKET

valve lever shaft, center

1шт.

19

16067DA

ADJUSTMENT SCREW,3/8" - 24

adjusting, valve lever

8шт.

20

42026D

KEY

valve spring collar

16шт.

21

368450R1

SPRING

SEAT, valve spring, upper (4 used with rotocap) (optional with 47278D)

8шт.

21

47278D

SEAT, VALVE

spring, upper (4 used with rotocap) (optional with 42040D)

8шт.

22

368450R1

SPRING

valve (used with rotocap), C-123, 36001 up

4шт.

22

366304R1

SPRING

valve (gasoline), C-123, 36001 up

8шт.

22

24544DA

SPRING

valve (4 used with rotocap) (distillate or kerosene)

8шт.

22

356842R1

SPRING

valve (used with rotocap), C-123, Serial Range: 501-36000

4шт.

23

42098D

RETAINER

valve stem

8шт.

24

356588R1

RETAINER

SEAT, valve spring, lower

8шт.

25

356583R1

GUIDE

valve

8шт.

26

57797D

VALVE

intake(gasoline), C-123, Serial Range: 501-36000

4шт.

26

366302R1

VALVE

intake (gasoline), C-123, 36001 up

4шт.

26

351648R1

VALVE

intake (distillate or kerosene)

4шт.

27

366300R2

GASKET

cylinder head (will work for 356313R2 and 362879R1)

1шт.

28

261295R21

HEAD, cylinder, assembly (distillate or kerosene) (composed of (8) guide 356587R1 (NSS), (2) stud 45574D, (1) head 261295R2 (NSS), (6) stud 251174R1, (1) plug 103868, (1) stud 355373R1, (8) seat 356588R1

1шт.

28

355046R21

HEAD, cylinder, assembly (distillate or kerosene) (composed of (8) guide 356587R1 (NSS), (2) stud 45574D, (1) head 355045R2 (NSS), (6) stud 251174R1, (1) plug 103868, (1) stud 355373R1 (8) seat 356588R1)

1шт.

28

366299R12

HEAD, cylinder, assembly (gasoline) C-123, 36001 up (composed of (8) guide 356587R1 (NSS), (2) stud 373899R1, (1) head 366299R1 (NSS), (6) stud 251174R1, (1) plug 103868, (1) stud 355373R1)

1шт.

28

251173R96

HEAD, cylinder, w/valves, assembly (gasoline) (composed of (1) head 366299R12, (8) seat 356588R1, (16) key 42026D, (8) spring 366304R1, (8) retainer 42098D, (4) valve 366302R1, (8) seat 42040D, (4) valve 366303R1)

1шт.

28

351641R94

HEAD, cylinder, w/valves, assembly (distillate or kerosene) (see note) (composed of (1) head 261295R21, (8) spring 24544DA , (16) key 42026D, (4) valve 351647R1, (8) retainer 42098D, (4) valve 351648R1), (8) seat 42040D

1шт.

364789R1

BOLT

cylinder head, C-123, 39400 up

9шт.

4097DA

NUT

cylinder head stud, C-123, Serial Range: 501-39399

9шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

24433D

STUD

cylinder head, C-123, Serial Range: 501-39399

9шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt, C-123, 39400 up

9шт.

29

45574D

STUD

valve cover, length 4-3/4", short thread 3/8-16NC, long thread 3/8-24NF

2шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

355373R1

STUD

valve lever shaft oiler, length 1 5/8", short thread 3/8-16NC, long thread 3/8-24NF

1шт.

103026

NUT,3/8"-24, G5

1шт.

31

251174R1

STUD

cylinder head to manifold, length 1 15/16", short thread 3/8-16NC, long thread 3/8-24NF

6шт.

32

356841R91

ROTATOR

ROTOCAP, exhaust valve (gasoline), C-123, Serial Range: 501-36000

4шт.

33

57798D

VALVE

exhaust (gasoline), C-123, Serial Range: 501-36000

4шт.

33

366303R1

VALVE

exhaust (gasoline), C-123, 36001 up

4шт.

33

351647R1

STD EXHAUST VALVE

VALVE, exhaust (distillate or kerosene)

4шт.

356840R91

ATTACHMENT, valve rotator, C-123, 501 to 36000 (composed of (4) rotocap 356841R91, (4) spring 356842R1)

1шт.

356314R97

GASKET SET, engine (will work for 362880R91)

1шт.

357476R93

GASKET KIT

GASKET SET, valve grinding (will work for 362881R91)

1шт.

368449R91

ROTATOR

PARTS ACCESSORY VALVE ROTATOR, C-123, 36001 up (composed of (4) rotocap 356841R91, (4) spring 368450R1)

1шт.

386192R1

SEAL

STEM valve

1шт.
