Запчасти Case IH 230 (376) - ATTACHMENTS, TACHOMETER, SPECIAL, FARMALL AND INTERNATIONAL 240 TRACTORS Attachments

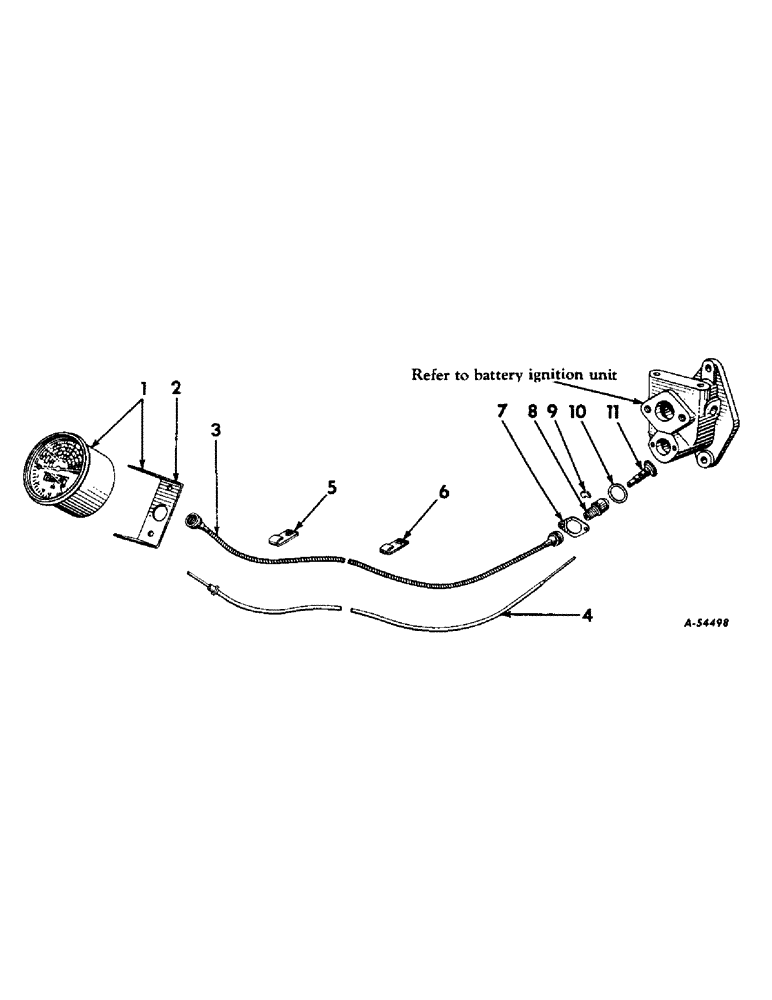

Схема запчастей Case IH 230 - (376) - ATTACHMENTS, TACHOMETER, SPECIAL, FARMALL AND INTERNATIONAL 240 TRACTORS Attachments
10
3
4
11
8
6
2
5
1
9
7

Артикул

Название

Примечание

Количество

1

371276R92

SPEEDOMETER

TACHOMETER

1шт.

371271R91, Parts accessory, tachometer (Farmall 240)

1шт.

1

371277R92

TACHOMETER

1шт.

371273R91, Parts accessory, tachometer (International 240)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

138476

WASHER, lock, external tooth, cd-pltd., no. 10

2шт.

2

364482R1

CLAMP, tachometer mounting

1шт.

3

133393R91

CABLE

CONDUIT, tachometer, flexible drive shaft, w/core, 133391R91

1шт.

4

133391R91

CORE

tachometer, flexible drive shaft

1шт.

5

363812R1

CLIP, tachometer drive conduit (on lower front LH mounting bolt of Hydra-Touch Valve)

1шт.

6

363812R1

CLIP, tachometer drive conduit (on lower rear tapped hole in cylinder head RH side)

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

363817R1

RETAINER

PLATE, tachometer, connection housing

1шт.

435429

SCREW, machine, slt-rd-hd., cd-pltd., no. 10-32NF x 9/16" Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

369692R1

HOUSING

tachometer connection

1шт.

9

369693R1

SUPPORT

RETAINER, tachometer drive gear

1шт.

10

363814R1

GASKET

tachometer connection housing

1шт.

11

369695R91

GEAR

tachometer (32 teeth)

1шт.

Выбрано товаров: 20
