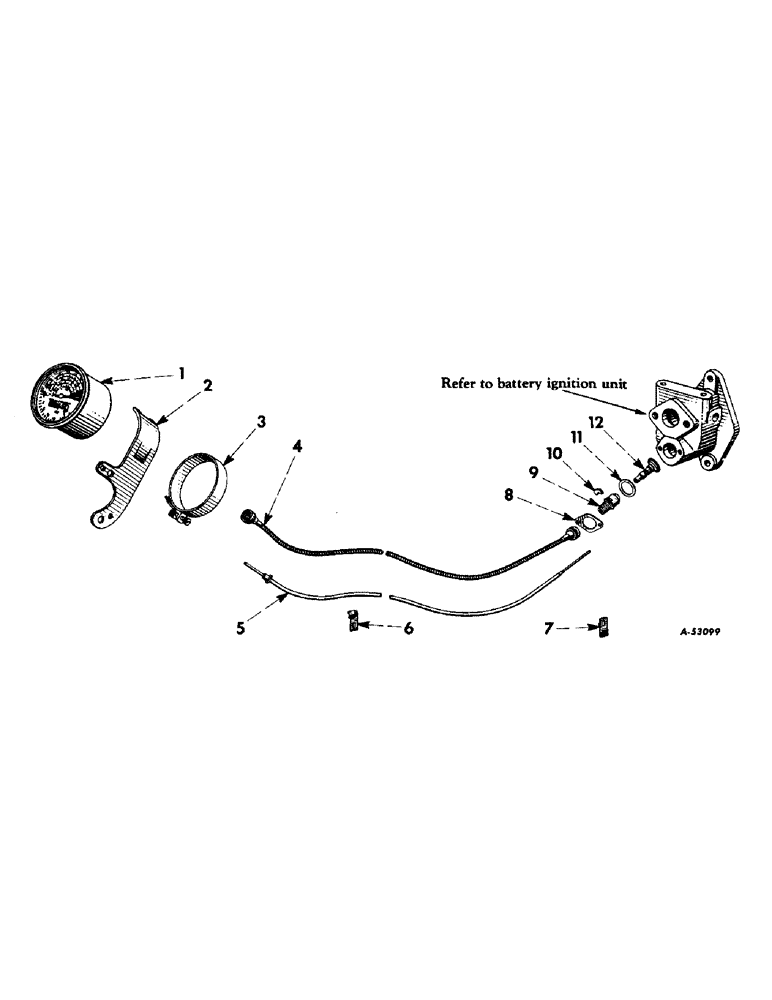

Запчасти Case IH 230 (375) - ATTACHMENTS, TACHOMETER, FOR FARMALL 230 TRACTORS EQUIPPED WITH BATTERY IGNITION Attachments

370195R91

PARTS ACCESSORY, tachometer

1шт.

1

370200R91

TACHOMETER

1шт.

2

370203R1

BRACKET, tachometer mounting

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

357870R91

CLAMP

tachometer mounting, w/clip and screw (range 3/4 to 4" OD tachometer)

1шт.

4

150941R91

CABLE

CONDUIT, tachometer, flexible drive shaft, w/core 150939R91

1шт.

5

150939R91

CORE

tachometer, flexible drive shaft

1шт.

6

364377R1

CLIP, tachometer drive conduit (on fuel tank rear support mounting bolt, LH side)

1шт.

7

363812R1

CLIP, tachometer drive conduit (on lower rear tapped hole in cylinder head, RH side)

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

363817R1

RETAINER

PLATE, tachometer connection housing

1шт.

435429

SCREW, machine, slt-rd-hd., cd-pltd., no. 10-32NF x 9/16" Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

369692R1

HOUSING

tachometer connection

1шт.

10

369693R1

SUPPORT

RETAINER, tachometer drive gear

1шт.

11

363814R1

GASKET

tachometer connection housing

1шт.

12

369695R91

GEAR

tachometer (32-T)

1шт.
