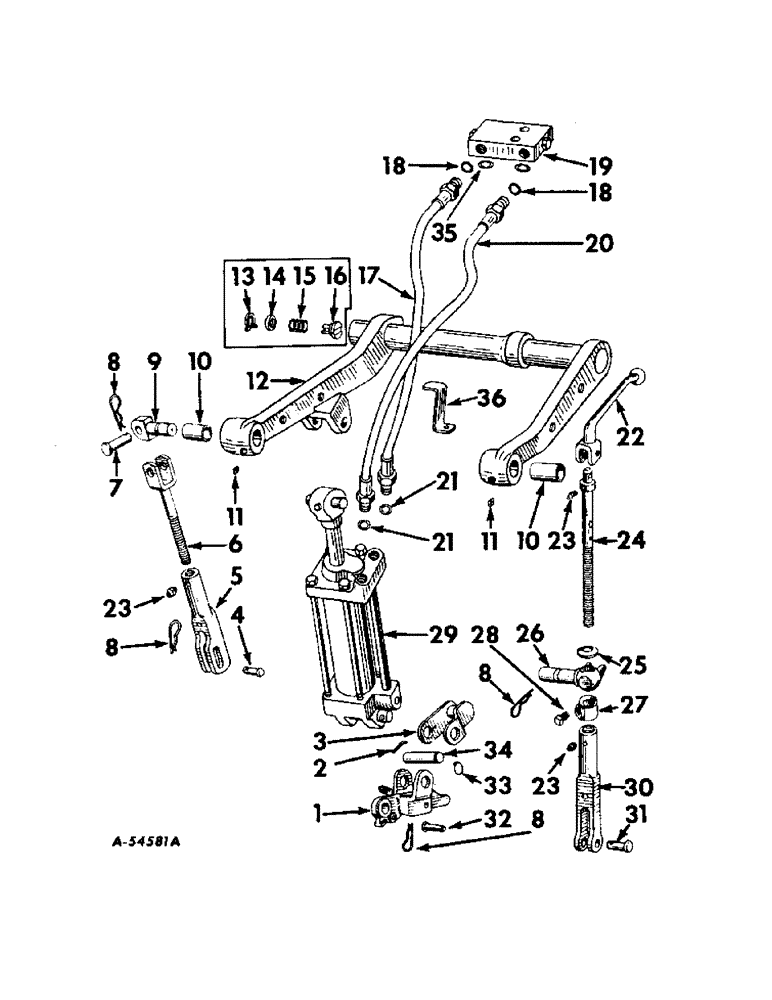

Запчасти Case IH 230 (351) - ATTACHMENTS, ROCKSHAFT, LEVELING LINKS, HYDRAULIC CYLINDER & CONNECTIONS, INTERNATIONAL 240 TRACTORS Attachments

1

523142R12

BELLCRANK, cylinder, assembly (order 374813R91, 374815R1 and 374816R11), 501 to 8407 (A only)

1шт.

1

374816R11

BELLCRANK, cylinder, assembly, 8408 up (A, B only)

1шт.

2

523116R1

ROD

PIN, lock, cylinder bell crank shaft (A only)

1шт.

3

372969R91

BRACKET, cylinder bellcrank, assembly, 501 to 8407, (A only)

1шт.

3

372813R91

PLATE

BRACKET, cylinder bellcrank, assembly, 8408 up, (A, B only)

1шт.

4

PO28401

HEADED PIN,3/4" x 2 1/16"

PIN, LH leveling screw housing (A, B only)

1шт.

NLS

NO LONGER SERVICED

plain, 13/16" ID x 1-1/2" OD x no. 10 ga. (A, B only)

1шт.

5

372972R1

HOUSING, LH leveling screw (A, B only)

1шт.

6

372971R11

SCREW, LH leveling, assembly (A, B only)

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

PIN, (A, B only) 1/4" x 7/8", Slotted

1шт.

7

523113R1

CLEVIS PIN,19.05mm OD x 60.33mm L

PIN, LH leveling screw clevis (A, B only)

1шт.

8

520175R1

CLIP

PIN, quick-attachable (A only)

4шт.

8

NSS

NOT SOLD SEPARAT

(B only)

2шт.

9

523115R1

PIN

EYE-BOLT, rockshaft arm, LH (A only)

1шт.

13121R1

PIN - split (Cotter), 1/4" x 1 1/2" (A only) 1/4" x 1 1/2"

1шт.

Q3480

WASHER

plain, 1-1/32" ID x 1-1/2" OD x no. 11 ga. (A only)

1шт.

10

523169R1

BUSHING,25.43mm ID x 30.28mm OD x 57.15mm L

rockshaft arm (A only)

2шт.

11

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) (A only) 1/8"-27 x .66 lg

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 138322H) (A only) 1/8"-27 x .66 lg

2шт.

12

525584R92

ROCKSHAFT, assembly (used only on tractors with cable type follow-up system) (see note A) (composed of (2) bushing 523169R1, (1) ring 526219R1, (1) coupling 526206R2, (1) rockshaft 525564R92 (NSS), (1) ring 526208R2, (1) spring 526209R1) (A only)

1шт.

These parts are not included in the fast-hitch field attachment.

1шт.

526207R1

INSERT, rockshaft coupling (A only)

1шт.

These parts are not included in the fast-hitch field attachment.

1шт.

374705R1

SHIM, rockshaft (A, B only)

1шт.

12

374914R91

ROCKSHAFT W/TWO BUSHINGS, 523169R1 (used only on tractors with linkage type follow-up system) (A only)

1шт.

13

526219R1

RING

snap-in rockshaft (used only in rockshaft, 525584R92) (A only)

1шт.

These parts are not included in the fast-hitch field attachment.

1шт.

14

526208R2

RING, retaining-in rockshaft (used only in rockshaft, 525584R92) (A only)

1шт.

These parts are not included in fast-hitch field attachments

1шт.

15

526209R1

SPRING, plunger-in rockshaft (used only in rockshaft, 525584R92) (A only)

1шт.

These parts are not included in fast-hitch field attachments

1шт.

16

526206R2

COUPLING, rockshaft (used only in rockshaft, 525584R92) (A only)

1шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

17

371703R91

HOSE, cylinder to junction block (3/8" ID x 25/32" OD x 23" long) (A only)

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

RING, seal, cylinder hose (A only)

2шт.

19

370965R92

VALVE, check, assembly (single acting) (for components see list of parts under details of "CHECK VALVE") (order PACKAGE, 374174R91), 501 to 6097 (A only)

1шт.

19

374083R91

VALVE

check, assembly (double acting) (for components see list of parts under details of "CHECK VALVE"), 6098 up, (A only)

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/2" (A only)

2шт.

20

371704R91

HOSE, cylinder to check vavle (3/8" ID x 25/32" OD x 26" long) (A only)

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

RING, seal, cylinder hose (at cylinder) (A only)

2шт.

22

523861R1

GRIP

HANDLE, leveling screw (A only)

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

PIN, (A only) 5/16" x 1 1/2", Slotted

1шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, lubricaiton, straight, 1/4-28NF-2 (optional with 102467H) (A only)

3шт.

23

NSS

NOT SOLD SEPARAT

(B only)

2шт.

23

102467H

FITTING

lubrication, straight, 1/4-28NF-2 (optional with 110146R91) (A only)

3шт.

23

NSS

NOT SOLD SEPARAT

(B only)

2шт.

24

525600R11

SCREW, RH leveling w/collar (A only)

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

PIN, (A only) 1/4" x 7/8", Slotted

1шт.

25

522850R1

WASHER

WASHER, pivot, on RH leveling screw ball (A only)

1шт.

26

523862R1

PIVOT

EYE-BOLT, RH leveling screw pivot (A only)

1шт.

Q3480

WASHER

plain, 1-1/32" ID x 1-1/2" OD x no. 11 ga. (A only)

1шт.

27

522816R1

COLLAR

vertical float lock nut (A only)

1шт.

28

112978

SCREW, set, sq-hd, cup-pt, 5/8-11NC x 3/4" (A only)

1шт.

29

371290R92

CYLINDER, hydraulic, assembly (2-1/2 x 8") (for components see list of parts under details of "Hydraulic Cylinder") (A only)

1шт.

30

372973R1

HOUSING, RH leveling screw (A, B only)

1шт.

31

PO28401

HEADED PIN,3/4" x 2 1/16"

PIN, leveling screw housing, RH (A, B only)

1шт.

NLS

NO LONGER SERVICED

cotter, 1/4 x 1-1/8" (A, B only)

1шт.

103346

WASHER

plain, 13/16" ID x 1-1/2" OD x no. 10 ga. (A, B only)

1шт.

32

523174R1

PIN

drawbar lock out (A only)

1шт.

These parts are not included in the fast-hitch field attachment.

1шт.

33

454319R1

RING

snap, pivot shaft (A only) (replaces 522861R1)

1шт.

34

522918R1

SHAFT, pivot, cylinder bell crank, 501 to 8407 (A only)

1шт.

34

374815R1

SHAFT, pivot, cylinder bellcrank, 8408 up (A, B only)

1шт.

35

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, check valve (A only)

2шт.

36

375292R1

BRACKET, cylinder hose (A, B only)

1шт.

374174R91

PACKAGE

service, check valve (will work for 370965R92), 501 to 8407, (consists of, (1) plug 9410360, (1) ring 364885R1, (1) valve 374083R91) (A only)

1шт.
