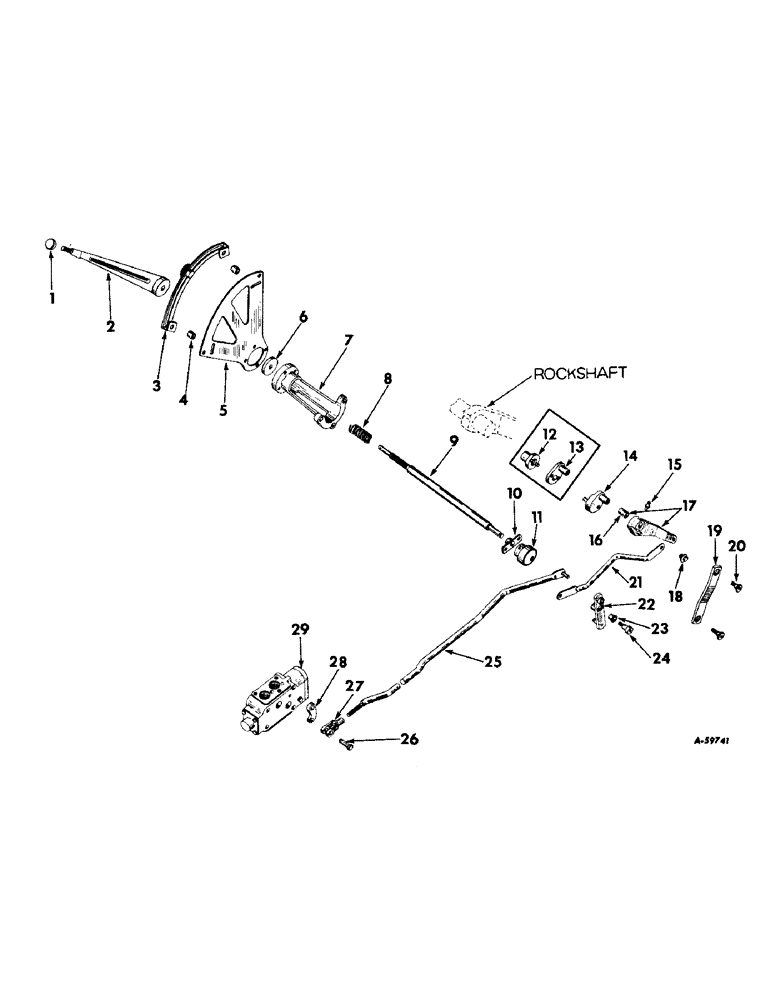

Запчасти Case IH 230 (344) - ATTACHMENTS, TEL-A-DEPTH VALVE, LINKAGE AND CONNECTIONS, LINKAGE TYPE FOLLOW-UP SYSTEM Attachments

1

371602R1

KNOB

BALL, tel-a-depth handle (A, B, C, D, E, F only)

1шт.

2

371404R11

HANDLE

tel-a-depth, assembly (A, B, C, D, E, F only)

1шт.

19506R1

PIN,3/16" x 2", Coiled

(A, B, C, D, E, F only) 3/16" x 2", Coiled

1шт.

3

371403R11

GUIDE, tel-a-depth handle, assembly (A, B, C, D, E, F only)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(A, B, C, D, E, F only) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

4

371598R1

STOP, tel-a-depth handle (A, B, C, D, E, F only)

2шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/4" (A, B, C, D, E, F only)

2шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x .065 ga (A, B, C, D, E, F only)

2шт.

5

371402R11

BRACKET, quadrant support, assembly (A, B, C, D, E, F only)

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

(A, B, C, D, E, F only) Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (A, B, C, D, E, F only) 1/4"

2шт.

6

371601R1

DISC, friction (A, B, C, D, E, F only)

1шт.

7

371597R1

SUPPORT, quadrant (A, B, C, D, E, F only)

1шт.

102635

NUT,3/8"-16, G5

(A, B, C, D, E, F only) 3/8"-16, G5

3шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(A, B, C, D, E, F only) Hex, 3/8"-16 x 1", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A, B, C, D, E, F only) 3/8"

3шт.

8

371603R1

SPRING, tel-a-depth friction (A, B, C, D, E, F only)

1шт.

9

374934R1

SHAFT, tel-a-depth rear lever (A, B, C, D, E, F only)

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

hex., jam, cd-pltd., 1/2-20NF (A, B, C, D, E, F only)

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32" ID x 1-1/16" OD x .095" ga (A, B, C, D, E, F only)

1шт.

10

371595R91

BEARING, tel-a-depth lever shaft, assembly(A, B, C, D, E, F only)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18NC x 1/2" (A, B, C, D, E, F only)

2шт.

11

374936R1

ECCENTRIC, tel-a-depth control lever shaft(A, B, C, D, E, F only)

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

(A, B, C, D, E, F only) 3/16" x 1 1/2", Coiled

1шт.

12

374945R11

PLUG, rockshaft pivot, assembly (part of package, 374932R91) (note A)(A, B, C, D, E, F only)

1шт.

188438

GROOVED PIN,1/4" x 1 1/2", Type F

Pin, Grooved, (A, B, C, D, E, F only) 1/4" x 1 1/2", Type F

1шт.

13

374947R11

PLATE, rockshaft pivot, assembly (part of package, 374932R91) (note A)(A, B, C, D, E, F only)

1шт.

217949

SCREW, hex-soc-rec-hd., 3/8-24NF x 1/2" (A, B, C, D, E, F only)

1шт.

14

374943R11

PLATE, rockshaft pivot, assembly (A, B, C, D, E, F only)

1шт.

27586R1

12 PT SCREW,Flg, 5/16"-18 x 3/4"

cap, hex-soc-hd, 5/16-18NC x 3/4"(A, B, C, D, E, F only)

1шт.

15

66584D

FITTING

lubrication (compensator arm) (A, B, C, D, E, F only)

1шт.

16

375162R1

BUSHING

compensator arm (A, B, C, D, E, F only)

1шт.

17

374948R11

ARM, compensator, assembly (A, B, C, D, E, F only)

1шт.

18

374955R91

SCREW,Hex, 5/16" - 18 x 0.38", W/ LW

retaining, compensator arm (A, B, C, D, E, F only)

1шт.

19

374953R1

SUPPORT

LINK, compensator (A, B, C, D, E, F only)

1шт.

20

374954R1

SCREW,Shldr, Hex Skt, 3/8" - 16 x 0.781"

compensating link (A, B, C, D, E, F only)

2шт.

21

374951R1

ROD, actuating, rear (A, B, C, D, E, F only)

1шт.

137159

COTTER PIN

3/32" x 5/8" (A, B, C, D, E, F only)

2шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no 16 ga (A, B, C, D, E, F only)

2шт.

22

374937R11

BEAM, walking, assembly (A, B, C, D, E, F only)

1шт.

23

374940R1

NYLON BEARING

walking, beam (A, B, C, D, E, F only)

1шт.

24

374942R1

SEAT

SCREW, walking beam (A, B, C, D, E, F only)

1шт.

25

374956R11

ROD, front actuating, assembly (A, B, C, D, E, F only)

1шт.

120368

NUT,5/16"-24, G5

(A, B, C, D, E, F only) 5/16"-24, G5

1шт.

26

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN, rod end, cd-pltd., 5/16" (A, B, C, D, E, F only)

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), (A, B, C, D, E, F only) 3/32" x 1/2"

1шт.

27

144242

CLEVIS

adjustable rod end, 5/16-24NF (A, B, C, D, E, F only)

1шт.

28

374933R1

LEVER, tel-a-depth valve (A, B, C, D, E, F only)

1шт.

19494R1

PIN

spirol, 5/32 x 7/8" (A, B, C, D, E, F only)

1шт.

29

374910R91

VALVE, tel-a-depth, assembly (for components see list of parts under details of "tel-a-depth valve") (A, B, C, D, E, F only)

1шт.

425-107

NUT,7/16"-14, G5

hex., 7/16-14NC (A, B, C, D, E, F only)

4шт.

19259R1

SCREW, cap, hex-hd., 7/16-14NC x 8-1/2" (A, B, C, D, E, F only)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A, B, C, D, E, F only) 7/16"

4шт.

374932R91

PACKAGE, field, tel-a-depth linkage type follow-up, (Consists of (1) arm 374948R11, (1) pin 103372, (1) arm 374948R11, (1) pin 121741, (1) beam 374937R11, (2) pin 137159, (1) bolt 374935R1, (1) pin 188438, (1) bracket 374960R1, (1) plate 374947R11

1шт.

Also order tandem oil filter service package, 374983R91, unless the tractor is already so equipped.

1шт.
