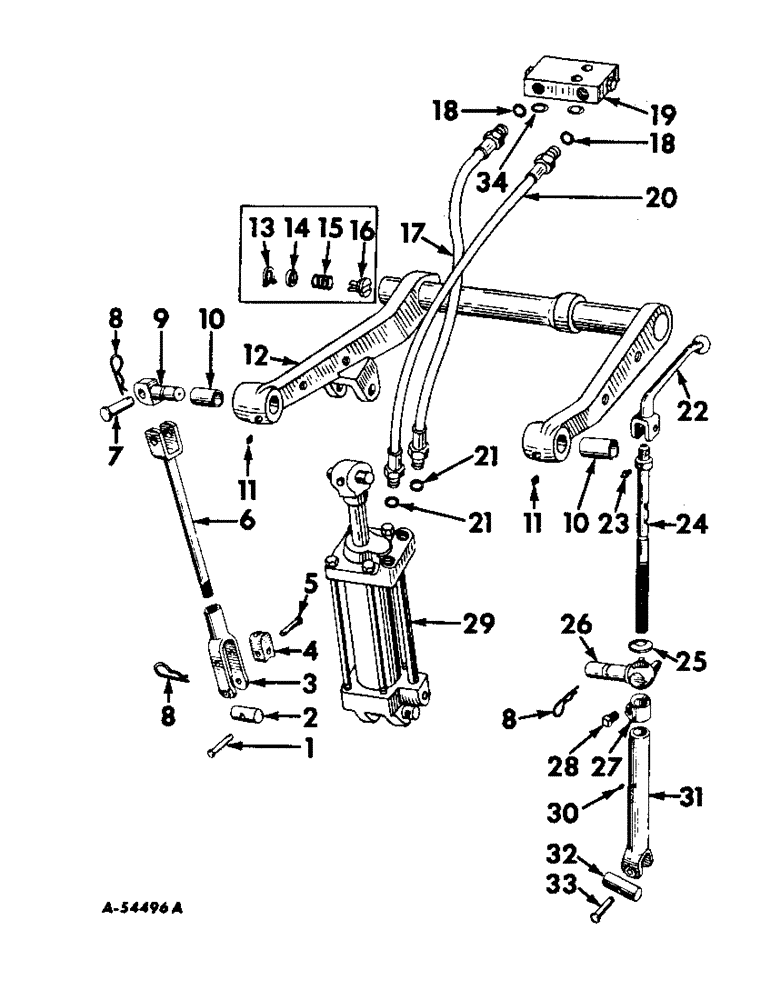

Запчасти Case IH 230 (334) - ATTACHMENTS, ROCKSHAFT, LIFT & LEVELING LINK, HYDRAULIC CYLINDER & CONNECTIONS Attachments

1

522856R1

PIN,12.7mm OD x 63.5mm L

lift link float housing to pivot (A, B, E only)

1шт.

13068R1

PIN,3/16" x 1"

- split (Cotter), (A, B, E only) 3/16" x 1"

1шт.

1

526345R1

PIN, lift link float housing to pivot (C, D, F only)

1шт.

526346R1

RING

snap, pivot pin (C, D, F only)

1шт.

2

522849R1

PIN

lift link pivot (A, B, C, D, E, F only)

1шт.

3

522818R1

YOKE

HOUSING, lift link float (A, B, C, D, E, F only)

1шт.

4

523085R1

BLOCK

lift link float (A, B, C, D, E, F only)

1шт.

5

522855R1

PIN,12.7mm OD x 66.67mm L

vertical float lockout (A, B, C, D, E, F only)

1шт.

6

525587R11

LINK, lift, LH (A, B, E only)

1шт.

6

526656R91

LINK, lift, LH (C, D, F only)

1шт.

7

523113R1

CLEVIS PIN,19.05mm OD x 60.33mm L

PIN, lift link clevis (A, B, C, D, E, F only)

1шт.

8

520175R1

CLIP

PIN, quick-attachable (A, B, C, D, E, F only)

3шт.

9

523115R1

PIN

EYEBOLT, rockshaft arm, LH (A, B, C, D, E, F only)

1шт.

13121R1

PIN - split (Cotter), 1/4" x 1 1/2" (A, B, C, D, E, F only) 1/4" x 1 1/2"

1шт.

Q3480

WASHER

plain, 1-1/32" ID x 1-1/2" OD x no 11 ga (A, B, C, D, E, F only)

1шт.

10

523169R1

BUSHING,25.43mm ID x 30.28mm OD x 57.15mm L

rockshaft arm (A, B, C, D, E, F only)

2шт.

11

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (A, B, C, D, E, F only) 1/8"-27 x .66 lg

2шт.

12

525584R92

ROCKSHAFT, assembly (used only on tractors with cable type follow-up system)(note A)(composed of (2) bushing 523169R1, (1) coupling 526206R2, (1) ring 526208R2, (1) ring 526219R1, (1) rockshaft 525564R92 (NSS), (1) spring 526209R1) (A, B, C, D, E, F only)

1шт.

526207R1

INSERT, rockshaft coupling (note A)(A, B, C, D, E, F only)

1шт.

374705R1

SHIM, rockshaft (note A)(A, B, C, D, E, F only)

1шт.

12

374914R91

ROCKSHAFT, w/two bushings, 523169R1 (used only on tractors with linkage type follow-up system)(A, B, C, D, E, F only)

1шт.

13

526219R1

RING

snap (used only in rockshaft, 525584R92)(note A) (A, B, C, D, E, F only)

1шт.

14

526208R2

RING, retaining (used only in rockshaft, 525584R92) (note A) (A, B, C, D, E, F only)

1шт.

15

526209R1

SPRING, plunger (used only in rockshaft, 525584R92)(note A)(A, B, C, D, E, F only)

1шт.

16

526206R2

COUPLING, rockshaft (used only in rockshaft, 525584R92)(note A) (A, B, C, D, E, F only)

1шт.

17

371703R91

HOSE, cylinder to junction block (3/8" ID x 25/32" OD x 23" long) (A, B, C, D, E, F only)

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

RING, seal, cylinder hose (A, B, C, D, E, F only)

2шт.

19

370965R92

VALVE, check, assembly (single acting)(for components see list of parts under details of "check valve")(order package, 374174R91), Farmall 240, 501 to 2284, International 240, 501 to 6094 (A, B, C, D, E, F only)

1шт.

19

374083R91

VALVE

check, assembly (double acting)(for components see list of parts under details of "check valve"), Farmall 240, 2285 up, International 240, 6098 up (A, B, C, D, E, F only)

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/2" (A, B, C, D, E, F only)

2шт.

20

371704R91

HOSE, cylinder to check valve (3/8" ID x 25/32" OD x 26" long) (A, B, C, D, E, F only)

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

RING, seal, cylinder hose (at cylinder) (A, B, C, D, E, F only)

2шт.

22

523861R1

GRIP

HANDLE, leveling screw (A, B, C, D, E, F only)

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

PIN, (A, B, C, D, E, F only) 5/16" x 1 1/2", Slotted

1шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, lubrication, straight, 1/4-28NF-2 (A, B, C, D, E,F only)

1шт.

24

525588R11

SCREW

leveling, w/collar (A, B, E only)

1шт.

24

525600R11

SCREW, leveling, w/collar (C, D, F only)

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

PIN, (A, B, C, D, E, F only) 1/4" x 7/8", Slotted

1шт.

25

522850R1

WASHER

WASHER, pivot, on leveling screw ball (A, B, C, D, E, F only)

1шт.

26

523862R1

PIVOT

EYEBOLT, leveling screw pivot (A, B, C, D, E, F only)

1шт.

Q3480

WASHER

plain, 1-1/32" ID x 1-1/2" OD x 11 ga (A, B, C, D, E, F only)

1шт.

27

522816R1

COLLAR

vertical float lockout (A, B, C, D, E, F only)

1шт.

28

112978

SCREW, set, sq-hd., cup-pt., 5/8 x 3/4" (A, B, C, D, E, F only)

1шт.

29

371290R92

CYLINDER, hydraulic, assembly (2-1/2 x 8")(for components see list of parts under details of "hydraulic cylinder")(A, B, C, D, E, F only)

1шт.

30

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, lubrication, straight, 1/4-28NF-2 (A, B, C, D, E,F only)

1шт.

31

522889R1

HOUSING, leveling screw (A, B, E only)

1шт.

31

525599R1

HOUSING, leveling screw (C, D, F only)

1шт.

32

522849R1

PIN

leveling screw housing pivot (A, B, C, D, E, F only)

1шт.

33

522856R1

PIN,12.7mm OD x 63.5mm L

leveling screw housing to pivot (A, B, E only)

1шт.

13068R1

PIN,3/16" x 1"

- split (Cotter), (A, B, E only) 3/16" x 1"

1шт.

33

526345R1

PIN, leveling screw housing to pivot (C, D, F only)

1шт.

526346R1

RING

snap, pivot pin (C, D, F only)

1шт.

34

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, check valve (A, B, C, D, E, F only)

2шт.

374174R91

PACKAGE

service, check valve (will work for 370965R92), Farmall 240, 501 to 2284, International 240, 501 to 6097 (composed of (1) plug 9410360, (1) ring 364885R1, (1) valve 374083R91) (A, B, C, D, E, F only)

1шт.
