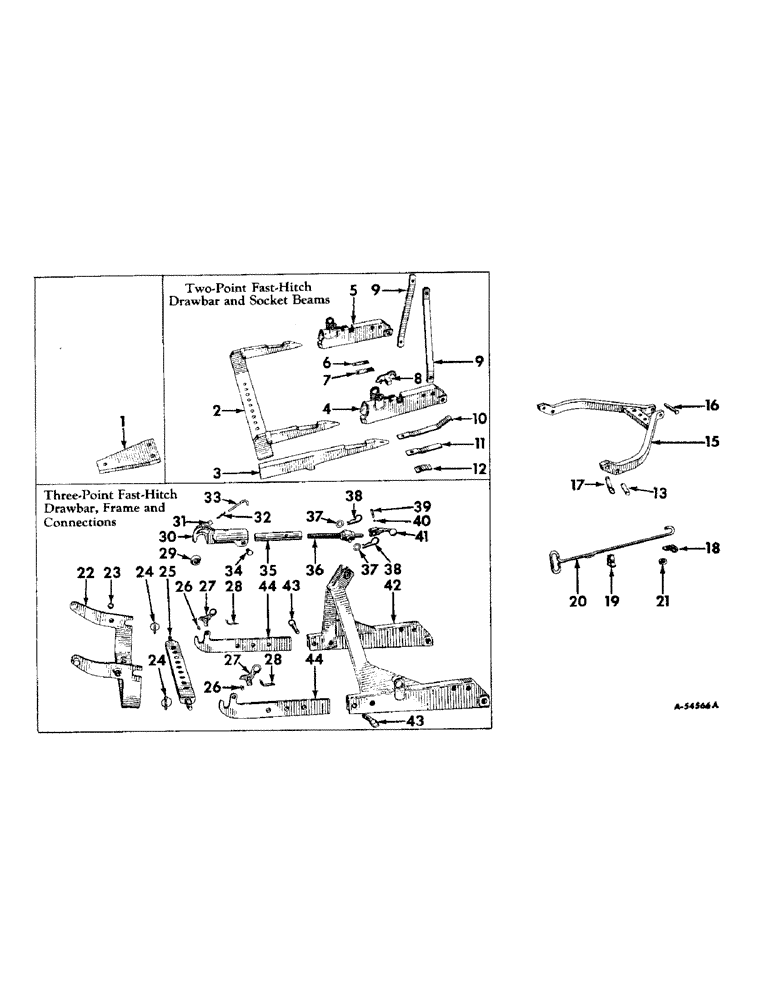

Запчасти Case IH 230 (330) - ATTACHMENTS, BAIL & CONNECTIONS, FARMALL AND INTERNATIONAL 240 TRACTORS Attachments

525620R91

FAST-HITCH DRAWBAR STABILIZER PARTS ACCESSORY, (provides additional bracing to prevent side swing) (composed of ref no 9, 525619R1 and attaching parts)(note A)(Farmall 240)(A, B only)

1шт.

525621R91

FAST-HITCH DRAWBAR STABILIZER PARTS ACCESSORY, (provides additional bracing to prevent side swing) (composed of ref no 9, 525618R1 and attaching parts)(note A)(International 240)(C, D only)

1шт.

1

66185D

BAR

PLATE, drawbar extension (provides standardized power take-off hitch)(note A)(A, B, C, D, E, F only)

1шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF (note A)(A, B, C, D, E, F only)

2шт.

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

SCREW, cap, hex-hd., 3/4-16NF x 2-1/2" (note A)(A, B, C, D, E, F only)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (Note A) (A, B, C, D, E, F only) 3/4"

2шт.

2

525594R11

DRAWBAR (A, B, C, D only)

1шт.

3

526044R11

BEAM, coupling (use to adapt allied implements for use w/fast- hitch by welding this to, or by drilling holes and bolting this to, the implement)(note A)(A, B, C, D only)

1шт.

4

525596R11

SOCKET, beam, RH assembly (A, B, C, D only)

1шт.

5

525595R11

SOCKET, beam, LH assembly (A, B, C, D only)

1шт.

6

522840R1

SPRING

auxiliary (for latch) (A, B, C, D only)

2шт.

7

522839R1

VALVE SPRING

SPRING, latch (A, B, C, D only)

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(A, B, C, D only) Hex, 3/8"-16 x 1/2", G5, Full Thd

2шт.

8

523110R2

LATCH

coupling, beam (A, B, C, D only)

2шт.

9

525619R1

BRACE, drawbar (note A)(Farmall 240)(A, B only)

2шт.

9

525618R1

BRACE, drawbar (note A)(International 240) (C, D only)

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC (note A)(A, B, C, D only)

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2" (note A)(A, B, C, D only)

2шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 3-1/4" (note A)(A,B,C,D only)

2шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5 to - FIGURE DOESN'T EX

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (Note A) (A, B, C, D only) 3/4"

2шт.

10

522836R1

SPRING

leaf (long)(for beam socket)(A, B, C, D only)

2шт.

11

522835R1

SPRING

leaf (medium)(for beam socket)(A, B, C, D only)

2шт.

12

522834R1

VALVE SPRING

SPRING, leaf (short)(for beam socket)(A, B, C, D only)

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4" (A, B, C, D only)

2шт.

13

525589R11

PIN, hitch bail, w/pins (A, B, C, D, E, F only)

2шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), (A, B, C, D, E, F only) 5/16" x 1 1/2"

2шт.

15

525593R91

BAIL, assembly (A, B, E only)

1шт.

15

525617R91

BAIL, assembly (C, D, F only)

1шт.

16

523866R1

PIN

pivot hitch point (5-1/4" long) (A, B, C, D, E, F only)

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), (A, B, C, D, E, F only) 1/4" x 1 1/4"

1шт.

17

522841R11

PIN

float locking (A, B, C, D, E, F only)

2шт.

18

523440R1

SUPPORT, latch hook (A, B, C, D, E, F only)

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

(A, B, C, D, E, F only) Hex, 3/8"-16 x 2 1/4", G5

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x .065 ga) (A, B, C, D only) 3/8"

1шт.

19

371511R1

CLIP, latch hook (A, B, C, D, E, F only)

1шт.

20

360378R2

HOOK, latch (A, B, C, D, E, F only)

1шт.

21

371702R1

SPACER,3/8" X-Strng Pipe x 13/16"

latch hook support (A, B, C, D, E, F only)

1шт.

22

372483R11

CRADLE, drawbar, assembly (used on Farmall 240 tractors with power take-off or swinging drawbar)(note A)(E only)

1шт.

22

372484R11

CRADLE, drawbar, assembly (used on International 240 tractors with power take-off or swinging drawbar)(note A)(F only)

1шт.

271621

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 4-1/2" (E, F only)

2шт.

23

372849R1

SPACER, cradle adapter loose (note A)(E, F only)

2шт.

24

372907R91

LINCH PIN

PIN, drawbar, assembly (used only with drawbar, 370799R1)(note A) (E, F only)

2шт.

25

370799R1

DRAWBAR, (used on tractors without power take-off)(note A)(E, F only)

1шт.

26

690693R1

PIN

roll, 1/2 x 1" (implement latch retainer) (E, F, G only)

2шт.

27

372460R11

LATCH

implement retainer, w/pin, 17132R1 and pin, 690693R1 (E, F, G only)

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, (E, F, G only) 1/4" x 1", Slotted

2шт.

28

372461R1

SUPPORT

SPRING, implement retainer latch (E, F, G only)

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(E, F, G only) Hex, 3/8"-16 x 1/2", G5, Full Thd

2шт.

29

372469R1

BALL

implement attaching (E, F, G only)

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, headed, 3/4 x 3-11/16" (E, F, G only)

1шт.

30

372466R1

HOUSING, upper link (E, F, G only)

1шт.

31

372471R1

LATCH, upper link (E, F, G only)

1шт.

17272R1

LOCK PIN,1/8" x 1/2", Slotted

Pin, (E, F, G only) 1/8" x 1/2", Slotted

1шт.

32

2063A

SPRING

upper latch link (E, F, G only)

1шт.

33

372470R1

EYE BOLT, upper link latch (E, F, G only)

1шт.

34

372468R1

BOLT, upper link housing (E, F, G only)

1шт.

102637

NUT,1/2"-13, G5

(E, F, G only) 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (E, F, G only) 1/2"

1шт.

35

372838R2

SLEEVE, upper link screw housing (E, F, G only)

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, (E, F, G only) 1/4" x 7/8", Slotted

1шт.

36

372462R11

SCREW, upper link adjusting, w/integral handle (order package, 373012R91)(E, F, G only)

1шт.

36

373010R11

SCREW, upper link adjusting, assembly (E, F, G only)

1шт.

37

372465R1

WASHER

BEARING, upper link trunnion pivot (E, F, G only)

2шт.

38

520175R1

CLIP

PIN, quick attachable cotter (E, F, G only)

4шт.

39

373011R1

PIN, upper link adjusting screw handle (E, F, G only)

1шт.

40

373009R1

RING, snap, adjusting screw handle pin (E, F, G only)

1шт.

41

372949R1

HANDLE, upper link adjusting screw (E, F, G only)

1шт.

42

372447R92

FRAME, implement attaching, assembly (E, F, G only)

1шт.

43

517853R12

PIN

drawbar attaching bar, assembly (used only with cradles, 372483R11 and 372484R11)(note A)(E, F only)

2шт.

44

372459R1

BAR, implement attaching (E, F, G only)

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC (E, F, G only)

2шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4" (E, F, G only)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (E, F, G only) 3/4"

2шт.

373012R91

PACKAGE, service, upper link adjusting screw (will work for one piece handle and screw, 372462R11)(consists of (1) handle 372949R1, (1) pin 373011R1, (1) pin 520175R1, (1) ring 373009R1, (1) screw 373010R11)(E, F, G only)

1шт.
