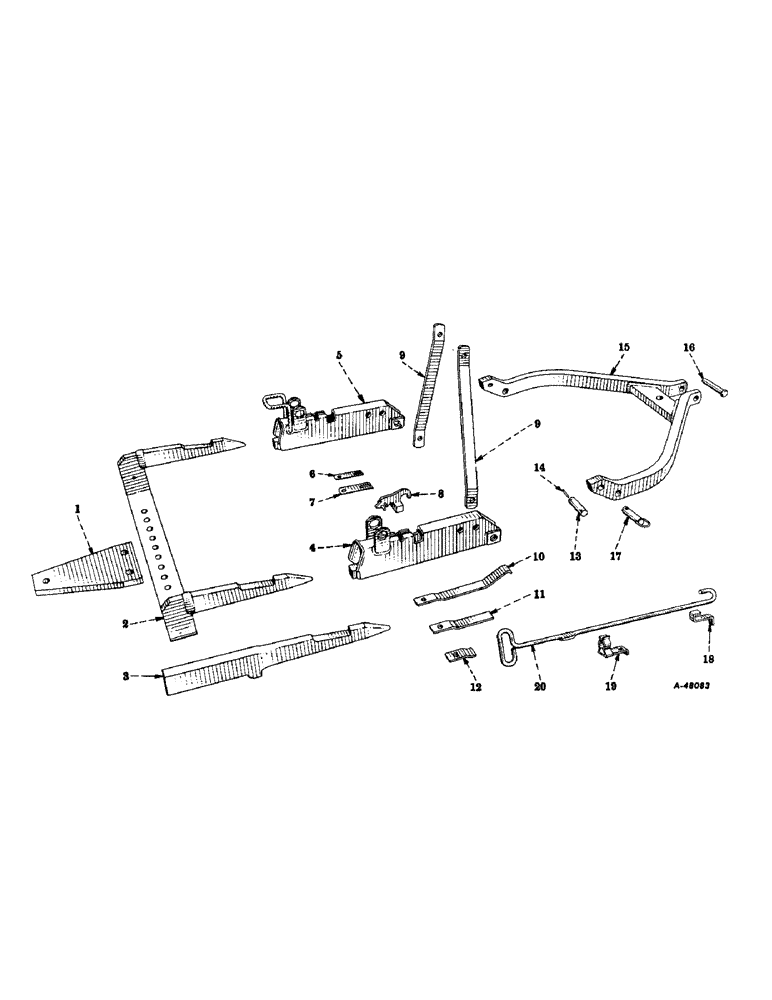

Запчасти Case IH 230 (321) - ATTACHMENTS, FAST-HITCH W/TRACTION CONTROL, FARMALL 230 TRACT ORS, DRAWBAR, SOCKET BEAMS & BAIL Attachments

1

366625R91

FAST-HITCH HYDRAULIC CYLINDER PARTS ACCESSORY

1шт.

1

367227R92

FAST-HITCH PILOT GUIDE, assembly

1шт.

1

366629R91

REAR MANIFOLD PARTS ACCESSORY

1шт.

523421R91

FAST-HITCH DRAWBAR STABILIZER PARTS ACCESSORY, (provides additional bracing to prevent side swing) (composed of ref no 9 and attaching parts)

1шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

1

66185D

BAR

PLATE, drawbar extension (provides standardized power take-off hitch)

1шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF

2шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

271636

SEAL KIT

SCREW, cap, hex-hd., 3/4-16NF x 2-1/2"

2шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

2

517829R11

DRAWBAR

1шт.

3

518576R21

BEAM, coupling (use to adapt allied implements for use w/fast- hitch by welding this to, or by drilling holes and bolting this to, the implement)

1шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

4

522932R11

SOCKET, beam, RH assembly

1шт.

5

522931R11

SOCKET, beam, LH assembly

1шт.

6

522840R1

SPRING

auxiliary (for latch)

2шт.

7

522839R1

VALVE SPRING

SPRING, latch

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

8

523110R2

LATCH

coupling, beam

2шт.

9

523418R1

BRACE, drawbar

2шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

220081

NUT

hex., 3/4-10NC

2шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

2шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 3-1/4"

2шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

These parts are not included in fast-hitch unit or field attachment

1шт.

10

522836R1

SPRING

leaf (long) (for beam socket)

2шт.

11

522835R1

SPRING

leaf (medium) (for beam socket)

2шт.

12

522834R1

VALVE SPRING

SPRING, leaf (short) (for beam socket)

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

2шт.

13

523086R1

PIN, (in hitch bail)

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , In beam socket to hitch bail pin 1/4" x 1 1/2"

2шт.

13

523086R11

PIN, hitch bail, 523086R1, w/pin, 19329R1 and pin, 576517R1

2шт.

14

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, (in beam socket to hitch bail pin) 1/4" x 1 1/2", Slotted

2шт.

19329R1

LOCK PIN,5/32" x 1 1/2", Slotted

PIN, 5/32" x 1 1/2", Slotted

2шт.

15

523154R91

BAIL, assembly (order bail, assembly 524016R91)

1шт.

15

523875R91

BAIL, assembly

1шт.

16

522949R1

PIN, pivot, hitch point (4-11/32" long) (used with bail, 523154R91)

1шт.

16

523866R1

PIN

pivot hitch point (5-1/4" long) (used with bail, 523875R91)

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

17

522841R11

PIN

float locking

2шт.

18

367670R1

SUPPORT, latch hook, front (on regulator and safety valve cover)

1шт.

366622R91, Fast-hitch with traction control attachment (for tractors equipped with hydra-touch system)

1шт.

19

360377R2

BRACKET, latch hook spring clip, rear (on steering shaft support bracket)

1шт.

366622R91, Fast-hitch with traction control attachment (for tractors equipped with hydra-touch system)

1шт.

20

360378R2

HOOK, latch

1шт.

366622R91, Fast-hitch with traction control attachment (for tractors equipped with hydra-touch system)

1шт.

524016R91

BAIL, 523875R91, w/pin, 523866R1 (will work for 523154R91)

1шт.

522934R91, Fast-hitch with traction control unit The following additional parts, illustrated in other sections of catalog, are used with the above attachment and must be ordered separately if the tractor is not already so equipped

1шт.
