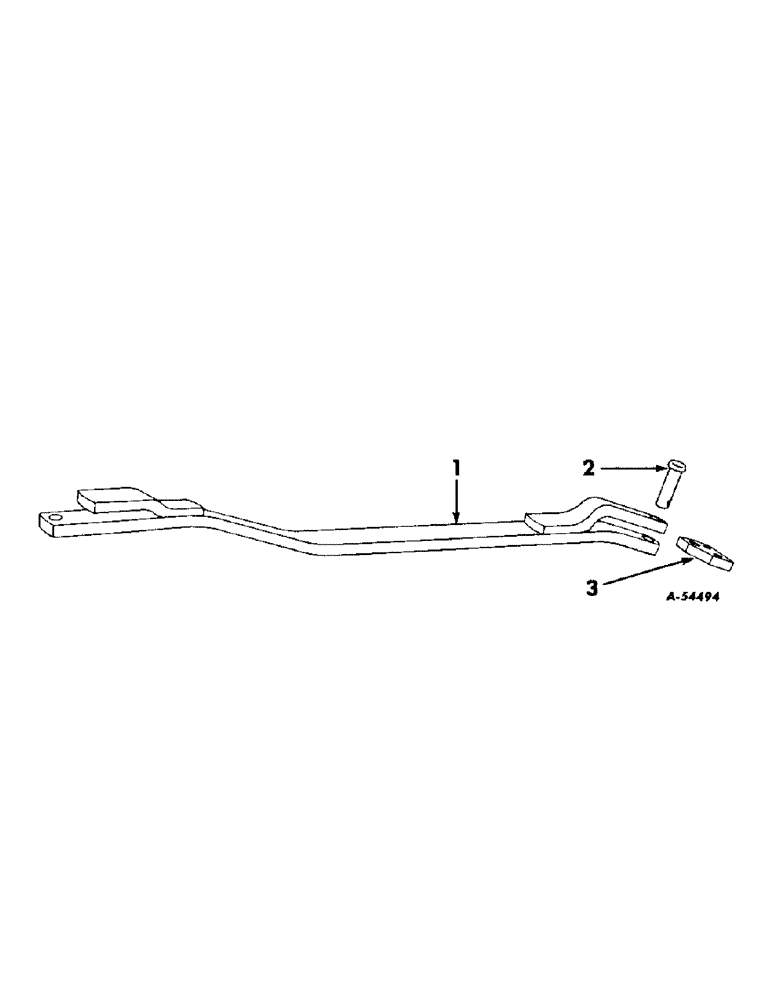

Запчасти Case IH 230 (320) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL Attachments

368132R91

DRAWBAR

ATTACHMENT, swinging drawbar

1шт.

1

368667R11

DRAWBAR, swinging

1шт.

220081

NUT

hex., 3/4-10NC

2шт.

Used to lock swinging drawbar in rigid position when desired

1шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 3-1/2"

2шт.

Used to lock swinging drawbar in rigid position when desired

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

Used to lock swinging drawbar in rigid position when desired

1шт.

2

368472R1

PIN

pivot, swinging drawbar

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

3

368666R1

BRACKET, anchor, swinging drawbar

1шт.

13296R1

BOLT, sq-hd., 3/4-10NC x 2-1/2"

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
