Запчасти Case IH 230 (310) - ATTACHMENTS, FAST-HITCH, SPECIAL, FARMALL 200 TRACTORS Attachments

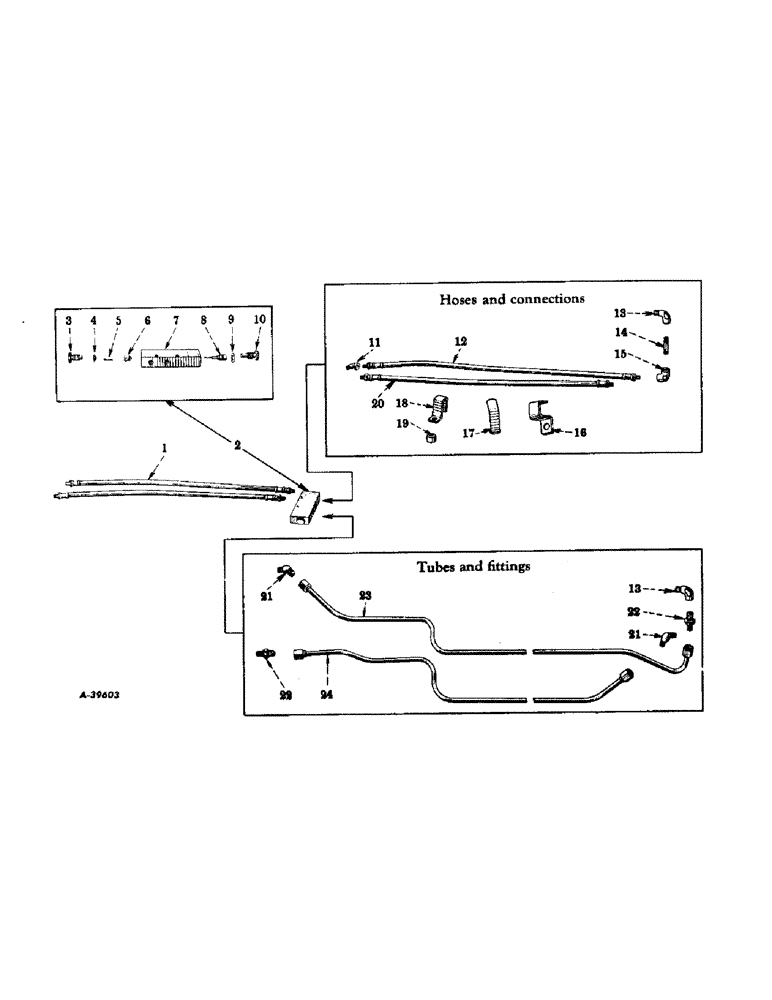

Схема запчастей Case IH 230 - (310) - ATTACHMENTS, FAST-HITCH, SPECIAL, FARMALL 200 TRACTORS Attachments
15
19
6
22
13
21
17
23
8
7
2
3
16
13
4
1
12
5
14
11
24
10
21
9
18
22
20

Артикул

Название

Примечание

Количество

360185R91

DRAWBAR EXTENSION PLATE PARTS ACCESSORY, (provides standardized power take-off hitch) (composed of (1) plate 360184R1, (2) nut 218197, (2) screw 271636, (2) washer 103326)

1шт.

These parts are not included in fast-hitch field attachments

1шт.

1

360393R91

HOSE,0.25" ID x 29.25", SAE 100R1

HYDRAULIC HOSE - Control valve short (Will work for 361072R91 and 361953R91), Check valve and connections 0.25" ID x 29.25", SAE 100R1

2шт.

2

360402R92

BLOCK

check valve, assembly (composed of (1) actuator 353953R1, (1) block 360390R21, (1) plug 360391R1, (1) plug 360392R1, (1) ring 355967R1, (1) spring 350668R1, (1) valve 354057R2, (2) washer 13727D), and connections

1шт.

3

360391R1

PLUG, check valve block, short, and connections

1шт.

4

13727D

GASKET

WASHER, plug, check valve block, and connections

2шт.

5

350668R1

VALVE SPRING

SPRING, check valve, and connections

1шт.

6

354057R2

VALVE

check, and connections

1шт.

7

360390R21

BLOCK, check valve, and connections

1шт.

8

353953R1

SHAFT

ACTUATOR, check valve, and connections

1шт.

9

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, check valve actuator, and connections

1шт.

10

360392R1

PLUG, check valve block, long, and connections

1шт.

11

454097

ELBOW

street, automotive pipe, stl., cd-pltd., 45 degrees, 1/4" (optional with 360451R1), check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

11

360451R1

ELBOW, street, check valve to cylinder hose (optional with 454097), and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

12

360394R91

HOSE ASSY.

HOSE, control valve, long (1/4" ID x 31-3/4" long), check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

13

444480

ELBOW

street, automotive pipe, brs., 90 degrees, 1/4" (optional with 454109), check valve and connections

1шт.

13

454109

ELBOW

street, automotive pipe, stl., cd-pltd., 90 degrees, 1/4" (optional with 444480), check valve and connections

1шт.

14

192053

NIPPLE, pipe, long, cd-pltd., 1/4 x 7/8", check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

15

454085

ELBOW, street, automotive pipe, stl., cd-pltd., 90 degrees, 1/4" (optional with 444504), check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

15

444504

ELBOW, street, automotive pipe, brs., 90 degrees, 1/4" (optional with 454085), check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

16

360383R1

CLAMP, auxiliary control valve hose, check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

518550R91, Fast-hitch unit

1шт.

17

356809R1

CLAMP, auxiliary control valve hose, check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

18

356835R1

BRACKET, auxiliary control valve hose, check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8", Check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

19

356836R1

SPACER, auxiliary control valve hose bracket, check valve and connections

1шт.

These parts are not included in fast-hitch field attachments

1шт.

Used only on tractors equipped with hoses and connections, 501 to 4953

1шт.

20

360393R91

HOSE,0.25" ID x 29.25", SAE 100R1

HYDRAULIC HOSE - Control valve short (Will work for 361072R91 and 361953R91), Check valve and connections 0.25" ID x 29.25", SAE 100R1

1шт.

These parts are not included in fast-hitch field attachments

1шт.

21

9402825

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

3/4 x 45 degrees, control valve to check valve tube (optional with 9402799), and connections

2шт.

Used only on tractors equipped with tubes and fittings, 4954 up

1шт.

21

9402799

ELBOW

3/4 x 45 degrees, control valve to check valve tube (optional with 9402825), and connections

2шт.

Used only on tractors equipped with tubes and fittings, 4954 up

1шт.

22

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, control valve to check valve tube, and connections

2шт.

Used only on tractors equipped with tubes and fittings, 4954 up

1шт.

23

361191R11

TUBE, control valve to check valve, long, w/two nuts, and two sleeves, and connections

1шт.

Used only on tractors equipped with tubes and fittings, 4954 up

1шт.

24

361190R11

TUBE, control valve to check valve, short, w/two nuts and two sleeves, and connections

1шт.

Used only on tractors equipped with tubes and fittings, 4954 up

1шт.

359552R1

ARM, rockshaft, R H (illustrated with rockshaft), check valve and connections

1шт.

Service parts for tractors equipped with fast hitch

1шт.

15347D

NUT, rockshaft, check valve and connections

2шт.

Service parts for tractors equipped with fast hitch

1шт.

359554R1

PIN

rockshaft arm clevis, check valve and connections

1шт.

Service parts for tractors equipped with fast hitch

1шт.

PO18500A

PIN

cotter, quick, attachable, check valve and connections

1шт.

Service parts for tractors equipped with fast hitch

1шт.

356831R1

BRACKET, auxiliary control valve lever (illustrated with auxiliary control valve), check valve and connections

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

Check valve and connections Hex, 1/4"-20 x 1 1/2", G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Check valve and connections 1/4"

2шт.

363486R91

CABLE, switch to rear light (illustrated with lighting and starting system), check valve and connections

1шт.

363487R1

CLIP

rear light cable (illustrated with lighting and starting system), check valve and connections

2шт.

356803R1

GASKET

auxiliary control valve (illustrated with auxiliary control valve), and connections

1шт.

356834R12

GUARD, hose auxiliary control valve (illustrated with seat, seat support and tool box), check valve and connections

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 3/4", check valve and connections

2шт.

95-11028

WASHER,1/4"

plain, 9/32 ID x 5/8" OD x no 16 ga, check valve and connections

2шт.

356830R4

HANDLE, auxiliary control valve operating (illustrated with auxiliary control valve), and connections

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, rod end, dld., 3/8 x 1-25/32", check valve and connections

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), , Check valve and connections 3/32" x 3/4"

1шт.

360379R1

CHANNEL

LINK, connecting, auxiliary control valve (illustrated with auxiliary control valve), check valve and connections

1шт.

1161Y

PIN, rod end, dld., 5/16 x 23/32", check valve and connections

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), , Check valve and connections 3/32" x 3/4"

2шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, manifold front flange (illustrated with auxiliary control valve), check valve and connections

4шт.

357874R2

SCREW, cap, auxiliary control valve (illustrated with auxiliary control valve), check valve and connections

2шт.

360478R11

SUPPORT, rear light (illustrated with headlight and rear supports), check valve and connections

1шт.

103026

NUT,3/8"-24, G5

Check valve and connections 3/8"-24, G5

1шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/4", check valve and connections

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Check valve and connections 3/8"

1шт.

359572R92

SUPPORT, seat and tool box (illustrated with seat, seat support and tool box), check valve and connections

1шт.

356779R92

HYD TUBE

TUBES, manifold (illustrated with auxiliary control valve), check valve and connections

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4", Check valve and connections

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Check valve and connections 3/8"

2шт.

356788R92

VALVE, auxiliary control, assembly (illustrated with auxiliary control valve), check valve and connections

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8", Check valve and connections

1шт.

Выбрано товаров: 95
