Запчасти Case IH 230 (309) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPLIT TYPE, FOR INTL 240 TRACTORS EQUIPPED W/28 INCH REAR WHEELS Attachments

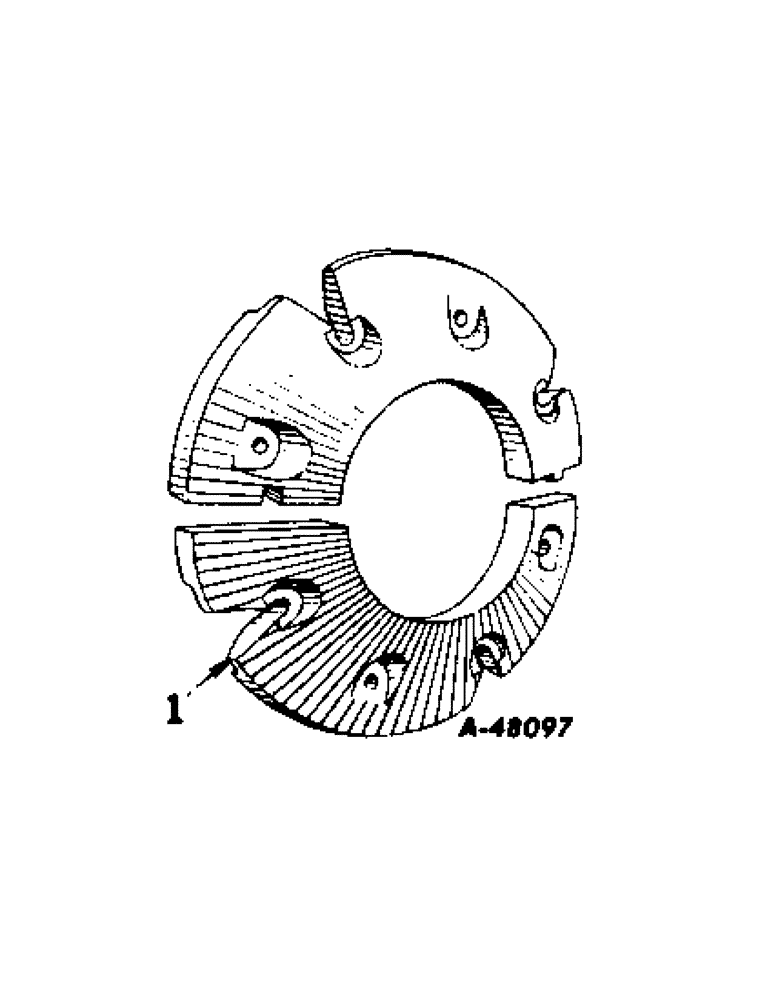

Схема запчастей Case IH 230 - (309) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPLIT TYPE, FOR INTL 240 TRACTORS EQUIPPED W/28 INCH REAR WHEELS Attachments
1

Артикул

Название

Примечание

Количество

1

365321R2

WEIGHT

rear wheel, half (approx 65 lbs)

4шт.

365331R1

BOLT, rear wheel weight

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex., cd-pltd., 5/8-11NC

8шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex., jam, cd-pltd., 5/8-11NC

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

1

365321R2

WEIGHT

rear wheel, half (approx 65 lbs)

4шт.

Component parts for rear wheel weights (second set)

1шт.

365332R2

SQUARE BOLT

BOLT, rear wheel weight

8шт.

Component parts for rear wheel weights (second set)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex., cd-pltd., 5/8-11NC

8шт.

Component parts for rear wheel weights (second set)

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex., jam, cd-pltd., 5/8-11NC

8шт.

Component parts for rear wheel weights (second set)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

Component parts for rear wheel weights (second set)

1шт.

366094R91

BOLT (MACHINE)

PACKAGE, hardware, rear wheel weight mounting (first set) (consists of eight bolts, 364333R1, eight nuts, 124589, eight nuts, 124845 and sixteen washers, 121574)

1шт.

366095R91

BOLT (MACHINE)

PACKAGE, hardware, rear wheel weight mounting (second set) (consists of eight bolts, 365332R2, eight nuts, 124589, eight nuts, 124847 and eight washers, 121574)

1шт.

Component parts for rear wheel weights (second set)

1шт.

Выбрано товаров: 18
