Запчасти Case IH 230 (305) - ATTACHMENTS, FRONT WHEEL WEIGHTS, SPECIAL, FARMALL AND INTERNATIONAL 240 TRACTORS Attachments

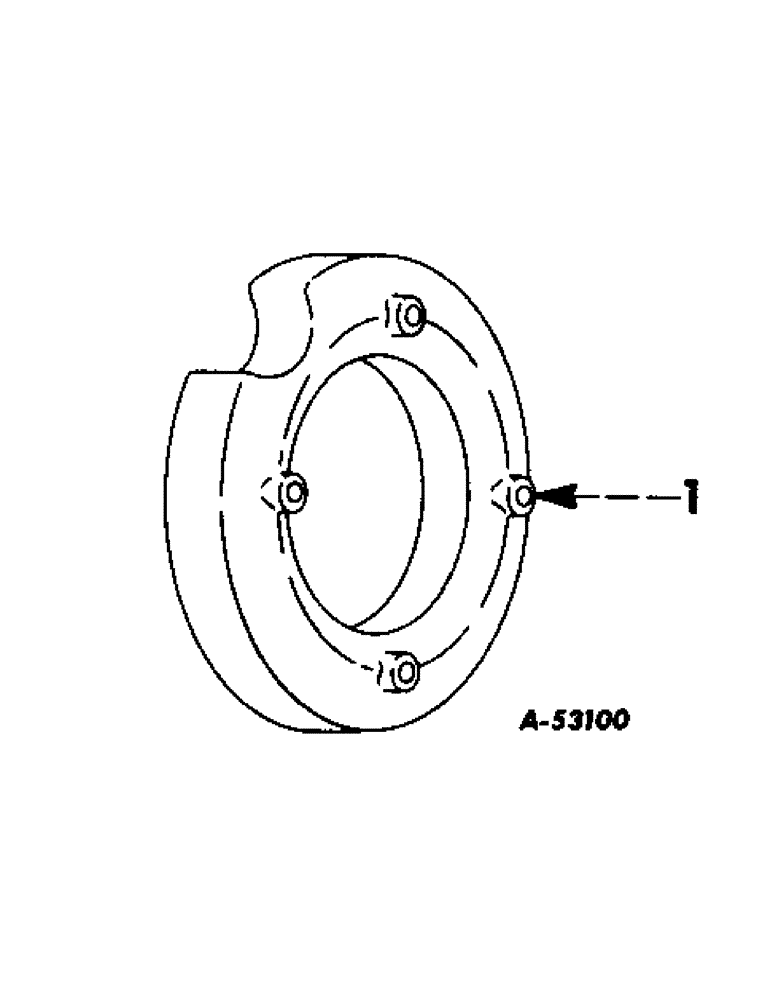

Схема запчастей Case IH 230 - (305) - ATTACHMENTS, FRONT WHEEL WEIGHTS, SPECIAL, FARMALL AND INTERNATIONAL 240 TRACTORS Attachments
1

Артикул

Название

Примечание

Количество

1

370685R1

WEIGHT

front wheel (approx. 50 lbs)

2шт.

Component parts for front wheel weights

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

Component parts for front wheel weights

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, cap, hex-hd., cd-pltd., 1/2-13NC x 2"

8шт.

Component parts for front wheel weights

1шт.

2

370685R1

WEIGHT

front wheel (approx. 50 lbs)

2шт.

Component parts for front wheel weights (outer set)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

Component parts for front wheel weights (outer set)

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, cap, hex-hd., cd-pltd., 1/2-13NC x 4"

4шт.

Component parts for front wheel weights (outer set)

1шт.

375063R91

PACKAGE, hardware, front wheel weight mounting (first set) (consists of four nuts, 120378 and four screws, 180181)

1шт.

Component parts for front wheel weights

1шт.

375091R91

PACKAGE, hardware, front wheel weight mounting (second set) (consists of four nuts, 120378 and four screws, 180194)

1шт.

Component parts for front wheel weights (outer set)

1шт.

Выбрано товаров: 16
